Catuji, Minas Gerais, Brazil represents a highly favorable location for year-round solar photovoltaic energy generation. Located in the tropics at coordinates -17.3639, -41.4854, this region benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than dramatic changes in solar availability.

Solar Energy Production Potential

The solar energy output data for Catuji demonstrates excellent year-round performance. Summer delivers the highest production at 5.92 kWh per day per installed kW of solar capacity, while spring and autumn maintain strong output levels at 5.41 kWh and 5.43 kWh respectively. Even during winter, the lowest production period, the location still generates a respectable 4.39 kWh per day per kW of installed capacity. For optimal performance, solar panels should be installed at a fixed tilt angle of 16 degrees facing north. This angle maximizes total year-round production by accounting for the sun's path throughout the seasons and has been calculated using weighted solar elevation angles and NASA solar irradiance data that considers Earth's elliptical orbit.

Best Times for Solar Generation

The summer months represent the peak solar generation period, followed closely by autumn and spring seasons which show nearly identical production levels. The relatively small variation between seasons - with winter production only about 26% lower than summer peak - indicates this location's exceptional suitability for consistent solar energy generation throughout the year.

Environmental and Weather Challenges

Several local factors could potentially impact solar production efficiency in Catuji and require careful consideration during installation:

• Tropical rainfall and humidity: The wet season brings heavy rains and high humidity levels that can reduce panel efficiency and create maintenance challenges
• Dust and particulate accumulation: Dry periods may lead to significant dust buildup on panel surfaces, reducing light transmission
• Vegetation growth: The tropical climate promotes rapid plant growth that could create shading issues if not properly managed

Preventative Installation Measures

To maximize energy production despite these environmental challenges, several installation strategies should be implemented. Proper drainage systems around solar installations prevent water pooling and reduce humidity-related issues, while elevated mounting systems improve air circulation and reduce moisture retention. Regular cleaning schedules become particularly important during dry seasons to remove dust accumulation. Installing panels with adequate spacing allows for better airflow and easier maintenance access. Additionally, choosing high-quality, humidity-resistant components and ensuring proper electrical sealing helps prevent moisture-related equipment failures. Vegetation management requires ongoing attention, with initial site clearing followed by regular maintenance to prevent shading from fast-growing tropical plants. Strategic placement away from large trees and consideration of future growth patterns during the planning phase helps maintain optimal sun exposure over the system's lifetime. Despite these considerations, Catuji's consistent tropical sun and strong year-round production figures make it an excellent location for solar PV installations when proper installation and maintenance practices are followed.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

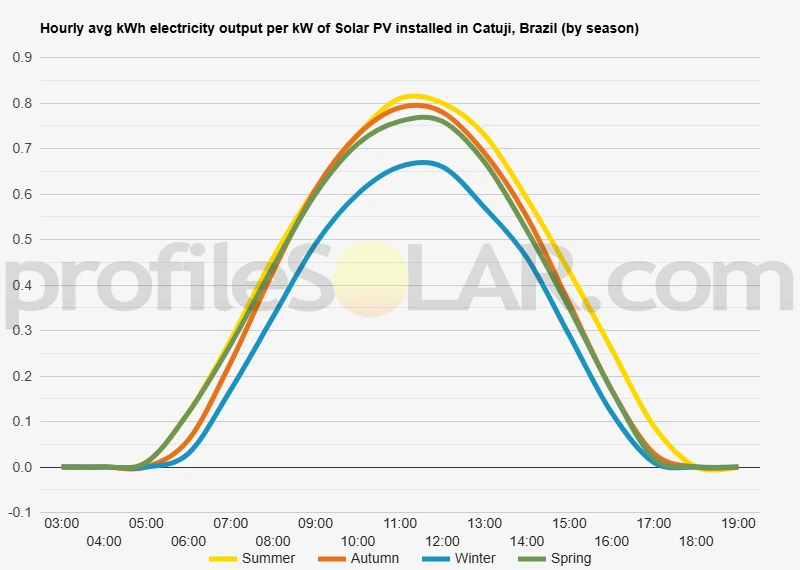

Solar output per kW of installed solar PV by season in Catuji

Seasonal solar PV output for Latitude: -17.3639, Longitude: -41.4854 (Catuji, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 16° North in Catuji, Brazil

To maximize your solar PV system's energy output in Catuji, Brazil (Lat/Long -17.3639, -41.4854) throughout the year, you should tilt your panels at an angle of 16° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Catuji, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Catuji, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 16° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
2° North in Summer	23° North in Autumn	33° North in Winter	12° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Catuji, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Catuji, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Catuji, Brazil

Catuji is situated in the eastern region of Minas Gerais state, Brazil, within the Mucuri River valley. This area forms part of the broader Atlantic Forest biome transition zone, where the landscape gradually shifts from mountainous terrain to more gentle rolling hills as it approaches the Atlantic coastal plain. The immediate topography around Catuji is characterized by undulating hills and valleys typical of the Brazilian Highlands' eastern slopes. The terrain features moderate elevation changes with rounded hilltops and broad valleys carved by numerous small tributaries of the Mucuri River system. The landscape displays the weathered characteristics of ancient crystalline rocks, creating a relatively stable geological foundation with gentle to moderate slopes throughout most of the region.

Regional Terrain Characteristics

The surrounding countryside exhibits a mix of cleared pasturelands and remnant forest patches, with elevation generally decreasing from west to east toward the Atlantic Ocean. The area sits within a transitional zone where the steeper escarpments of the interior highlands give way to more manageable gradients. This creates a landscape of broad, gently sloping plateaus interspersed with shallow valleys and seasonal watercourses. Local relief is moderate, with most slopes falling within acceptable ranges for large-scale development projects. The region benefits from relatively stable soils derived from weathered granite and gneiss formations, providing good foundation conditions for infrastructure development. Seasonal rainfall patterns have created well-defined drainage channels, but these are typically shallow and present minimal obstacles to land use planning.

Optimal Areas for Solar Development

The most suitable locations for large-scale solar photovoltaic installations would be found on the broader plateau areas and gentle south-facing slopes scattered throughout the region. These elevated, relatively flat areas offer several advantages including good drainage, stable foundations, and minimal shading from surrounding terrain features. Particularly promising areas lie to the north and northwest of Catuji, where expansive cleared pasturelands occupy gently rolling terrain with excellent southern exposure. These locations benefit from consistent topographic conditions that would allow for efficient panel layout and maintenance access while minimizing grading requirements. The eastern approaches toward the Mucuri River valley also present opportunities, especially on the higher terraces above the floodplain. These areas combine the benefits of stable, well-drained soils with relatively uniform topography that would support large-scale solar arrays. The existing agricultural land use in many of these areas indicates that the terrain is already suitable for development and has established access infrastructure. Areas to avoid would include the steeper valley sides and locations prone to seasonal flooding near watercourses. The immediate riparian zones along streams and rivers should also be excluded due to environmental considerations and potential drainage issues during the rainy season.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
