Caucaia, Ceará, Brazil, located at latitude -3.7822 and longitude -38.8025, offers a promising environment for solar energy generation throughout the year. Situated in the tropics, this location benefits from consistent sunlight and experiences wet and dry seasons rather than traditional four-season cycles.

Seasonal Solar Performance

The solar energy output in Caucaia remains relatively stable across seasons, with some variations:

• Spring: 7.26 kWh/day (highest output)
• Winter: 6.43 kWh/day
• Summer: 6.39 kWh/day
• Autumn: 5.78 kWh/day (lowest output)

Spring emerges as the most productive season, while autumn sees a slight dip in energy generation. However, the difference between the highest and lowest outputs is relatively small, indicating consistent year-round performance.

Optimal Panel Positioning

For fixed solar panel installations in Caucaia, Ceará, the ideal tilt angle to maximize year-round energy production is 4 degrees North. This slight tilt helps optimize sunlight capture throughout the year, accounting for the Earth's elliptical orbit and the location's proximity to the equator.

Environmental Considerations

While Caucaia's tropical climate is generally favorable for solar energy production, there are a few factors to consider: 1. Humidity: The region's high humidity levels may slightly reduce panel efficiency and increase maintenance needs. Regular cleaning can help mitigate this issue. 2. Tropical storms: Although not frequent, occasional tropical storms could pose a risk to solar installations. Robust mounting systems and weather-resistant equipment are essential to ensure longevity and performance.

Conclusion

Overall, Caucaia presents an excellent location for solar PV installations. Its consistent year-round sunlight and minimal seasonal variations make it an ideal spot for reliable solar energy generation. By addressing potential environmental challenges through proper installation and maintenance practices, solar projects in this area can achieve optimal performance and longevity.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

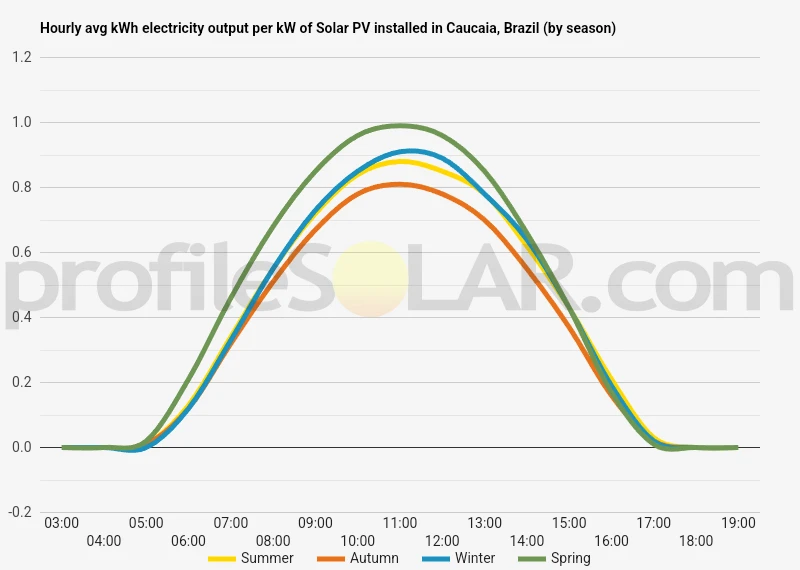

Solar output per kW of installed solar PV by season in Caucaia

Seasonal solar PV output for Latitude: -3.7822, Longitude: -38.8025 (Caucaia, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 4° North in Caucaia, Brazil

To maximize your solar PV system's energy output in Caucaia, Brazil (Lat/Long -3.7822, -38.8025) throughout the year, you should tilt your panels at an angle of 4° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Caucaia, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Caucaia, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 4° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° South in Summer	10° North in Autumn	19° North in Winter	2° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Caucaia, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Caucaia, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Caucaia, Brazil

The topography around Caucaia, Brazil is characterized by a mix of coastal lowlands and gently rolling hills. Situated near the Atlantic Ocean, Caucaia's landscape transitions from sandy beaches and dunes along its eastern edge to slightly elevated terrain as you move inland. The city itself is relatively flat, with an average elevation of about 30 meters (98 feet) above sea level.

As you move away from the coast, the terrain becomes more undulating, with low hills and shallow valleys. The region is part of the larger Ceará coastal plain, which gradually rises towards the interior of the state. This area is known for its semi-arid climate, with vegetation transitioning from coastal shrubs to more drought-resistant plants inland.

Several rivers and streams crisscross the landscape, including the Ceará River, which forms part of Caucaia's southern border. These waterways have shaped the local topography over time, creating gentle slopes and small floodplains in some areas.

Areas Suitable for Large-Scale Solar PV

For large-scale solar photovoltaic (PV) installations, the areas most suited would be the inland regions to the west and southwest of Caucaia. These locations offer several advantages:

1. Terrain: The gently rolling hills provide relatively flat areas that are ideal for solar panel placement. These locations offer enough elevation to avoid potential flooding issues while not being so steep as to complicate installation.

2. Climate: The semi-arid climate of this region means there are many sunny days throughout the year, maximizing solar energy potential. The inland areas also tend to have less coastal humidity and salt spray, which can be detrimental to solar equipment over time.

3. Land availability: Moving away from the more densely populated coastal areas, there is likely to be more available land for large-scale installations without conflicting with urban development or prime agricultural land.

4. Reduced environmental impact: The inland areas often have less diverse ecosystems compared to the coastal regions, potentially minimizing the environmental impact of large solar installations.

5. Proximity to infrastructure: While moving inland, these areas are still close enough to Caucaia and the nearby city of Fortaleza to potentially connect to existing electrical grids and transportation networks.

It's important to note that any specific site selection would require detailed environmental and technical assessments to ensure suitability and minimize any potential negative impacts on local communities or ecosystems.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
