Caxambu, Minas Gerais, Brazil represents a very good location for year-round solar energy generation, with consistently strong electricity output throughout all seasons. Located in the tropical region, this area benefits from reliable sunlight patterns that make it well-suited for solar photovoltaic installations.

Solar Energy Output Performance

The solar energy production at Caxambu shows excellent consistency across the year. Summer delivers the highest output at 6.38kWh per day per kW of installed solar capacity, while winter produces the lowest at 4.93kWh per day per kW. Spring and autumn fall between these ranges at 5.81kWh and 5.53kWh respectively. This relatively small variation between seasons - only about 1.45kWh difference between the best and worst performing seasons - demonstrates the location's reliability for solar energy. Even during winter, the solar output remains quite strong, making this an attractive location for consistent energy generation throughout the year.

Optimal Installation Configuration

For maximum year-round solar production at Caxambu, Minas Gerais, solar panels should be installed at a fixed tilt angle of 21 degrees facing north. This angle has been calculated to optimize total annual energy output by accounting for the sun's path throughout the year and the area's specific latitude.

Environmental and Weather Factors

Several local factors could potentially impact solar energy production at this location and should be considered during installation:

• Tropical rainfall patterns: The wet and dry seasonal pattern typical of tropical regions means heavy rainfall during wet seasons could temporarily reduce solar output and create maintenance challenges
• High humidity levels: Tropical climates often experience elevated humidity, which can affect panel efficiency and create condensation issues
• Vegetation growth: The favorable growing conditions in tropical climates can lead to rapid plant growth that may shade panels if not properly managed

Preventative Measures for Optimal Performance

To maximize solar energy production despite these environmental challenges, several installation strategies should be implemented:

• Proper drainage systems: Install adequate drainage around solar installations to handle heavy tropical rainfall and prevent water accumulation
• Regular cleaning schedules: Establish frequent panel cleaning routines to remove dust, debris, and organic matter that accumulates more rapidly in humid tropical environments
• Ventilation design: Ensure proper air circulation around panels to reduce the impact of high humidity and help maintain optimal operating temperatures
• Vegetation management: Implement regular landscaping maintenance to prevent trees and plants from creating shade over solar installations
• Corrosion-resistant materials: Use mounting systems and electrical components specifically designed to withstand high humidity and tropical weather conditions

With proper installation techniques and regular maintenance, Caxambu offers excellent potential for reliable, year-round solar energy generation that can provide consistent electricity output across all seasons.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

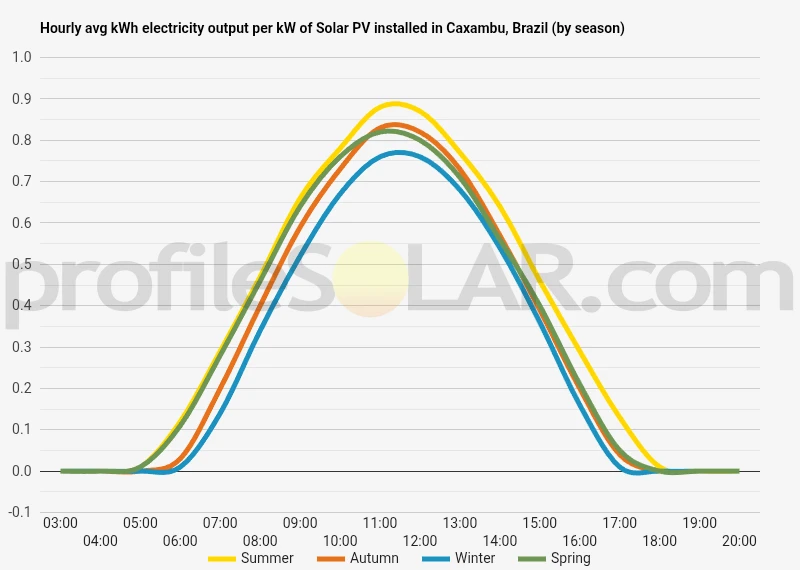

Solar output per kW of installed solar PV by season in Caxambu

Seasonal solar PV output for Latitude: -21.9602, Longitude: -44.953 (Caxambu, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Caxambu, Brazil

To maximize your solar PV system's energy output in Caxambu, Brazil (Lat/Long -21.9602, -44.953) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Caxambu, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Caxambu, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	27° North in Autumn	37° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Caxambu, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Caxambu, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Caxambu, Brazil

Topographical Features of Caxambu

Caxambu sits nestled in the mountainous landscape of southern Minas Gerais, positioned within the Mantiqueira Mountain Range at an elevation of approximately 900 meters above sea level. The town occupies a valley setting surrounded by rolling hills and steep-sided mountains that create a distinctive bowl-like topography. The terrain is characterized by undulating highlands with elevations ranging from 800 to over 1,500 meters in the surrounding peaks. The landscape features a complex network of valleys and ridges formed by ancient geological processes, with the Serra da Mantiqueira creating dramatic elevation changes across relatively short distances. The region's topography includes numerous small streams and tributaries that flow through carved valleys, contributing to the area's reputation as a mineral water source. The mountainous terrain creates microclimates and varying exposure conditions depending on slope orientation and elevation.

Terrain Challenges for Solar Development

The steep gradients and irregular terrain present significant challenges for large-scale solar photovoltaic installations in the immediate vicinity of Caxambu. The town itself sits in a valley surrounded by forested hillsides with slopes often exceeding 20-30 degrees, making ground-mounted solar arrays impractical without extensive earthworks and terracing. The dense vegetation coverage on many slopes would require substantial clearing, potentially creating environmental concerns. The mountainous topography also creates shading issues throughout the day, as ridges and peaks can block direct sunlight during certain periods. The irregular terrain would necessitate custom mounting solutions and increased infrastructure costs for electrical connections and maintenance access roads.

Optimal Areas for Solar PV Development

The most suitable locations for large-scale solar installations lie in the broader plateau areas and gentler slopes found to the north and northwest of Caxambu, where the Mantiqueira Mountains transition into more moderate terrain. These areas feature relatively flat or gently sloping agricultural lands with gradients typically under 10 degrees, providing ideal conditions for ground-mounted solar arrays. The elevated plateaus at moderate elevations between 800-1000 meters offer excellent exposure conditions while avoiding the steep terrain closer to the mountain peaks. These locations benefit from reduced atmospheric interference due to elevation while maintaining accessibility for construction and maintenance activities. Agricultural areas and pasturelands in the surrounding municipalities present particularly attractive opportunities, as they often feature large, unobstructed parcels with existing road access and electrical infrastructure. The transition zones between the mountainous terrain and the flatter agricultural regions to the east and south of Caxambu offer the best combination of suitable topography and practical accessibility for utility-scale solar development.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
