Caxias do Sul, Brazil, situated in the Southern Sub Tropics at coordinates -29.172, -51.1782, presents a varied landscape for solar energy generation throughout the year. This location experiences distinct seasonal fluctuations in solar PV output, which can significantly impact the overall efficiency of solar installations.

Seasonal Solar Performance

The solar energy potential in Caxias do Sul varies considerably across seasons. Summer stands out as the most productive period, with an impressive daily output of 7.25kWh per kW of installed solar capacity. Spring follows as the second-best season, yielding 5.79kWh/day. Autumn sees a noticeable decrease in production at 4.61kWh/day, while winter experiences the lowest output at 3.23kWh/day.

These figures indicate that solar energy generation is most effective during the warmer months, particularly from late spring through early autumn. This period offers longer daylight hours and more direct sunlight, maximizing the potential for solar PV systems.

Optimal Panel Positioning

To achieve the best year-round solar production in Caxias do Sul, fixed solar panels should be tilted at a 25-degree angle facing North. This orientation helps capture the maximum amount of sunlight throughout the year, balancing the seasonal variations in the sun's position.

Environmental Considerations

While Caxias do Sul generally offers favorable conditions for solar energy production, there are some environmental factors to consider:

1. Cloud cover: The region can experience periods of increased cloudiness, particularly during winter months, which may reduce solar output.

2. Rainfall: Caxias do Sul receives significant rainfall throughout the year, which can temporarily decrease solar panel efficiency.

To mitigate these factors, installers should consider using high-efficiency panels that perform well in low-light conditions. Additionally, implementing a robust cleaning schedule can help maintain panel performance by removing any dirt or debris that may accumulate due to rainfall.

Overall, while Caxias do Sul may not offer ideal year-round conditions for solar PV generation, it still presents a viable opportunity for renewable energy production, especially when system design and maintenance are optimized to local conditions.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

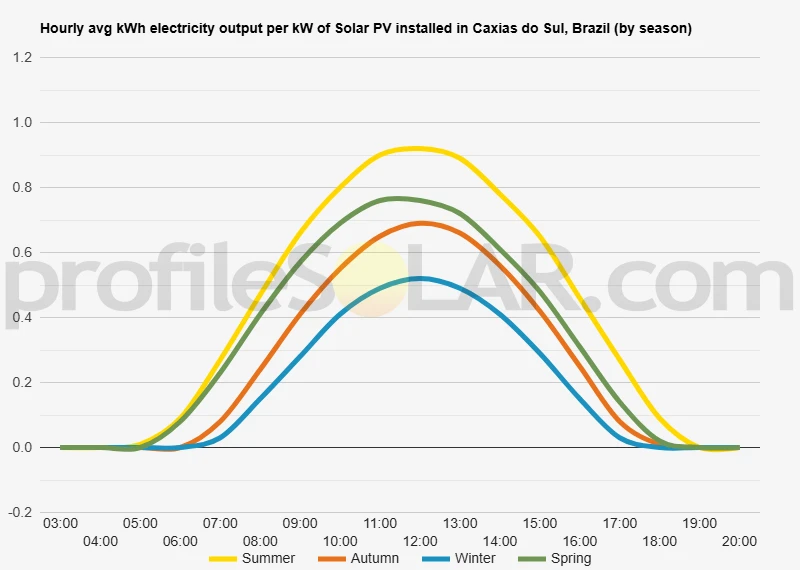

Solar output per kW of installed solar PV by season in Caxias Do Sul

Seasonal solar PV output for Latitude: -29.172, Longitude: -51.1782 (Caxias Do Sul, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° North in Caxias Do Sul, Brazil

To maximize your solar PV system's energy output in Caxias Do Sul, Brazil (Lat/Long -29.172, -51.1782) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Caxias Do Sul, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Caxias Do Sul, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° North in Summer	35° North in Autumn	44° North in Winter	22° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Caxias Do Sul, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Caxias Do Sul, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Caxias Do Sul, Brazil

The topography around Caxias do Sul, Brazil, is characterized by its location in the Serra Gaúcha region, a part of the Southern Brazilian Highlands. This area is known for its hilly and mountainous terrain, with elevations ranging from approximately 700 to 900 meters above sea level. The landscape is dotted with rolling hills, steep slopes, and valleys, creating a picturesque and diverse topography. The city of Caxias do Sul itself is situated on a plateau, surrounded by these undulating hills and mountains. The region's geology is primarily composed of basaltic rock formations, which contribute to the rugged nature of the terrain. Numerous small rivers and streams cut through the landscape, further shaping the topography and creating natural drainage systems.

Vegetation and Land Use

The natural vegetation in the area consists of a mix of subtropical forests and grasslands. However, much of the land has been altered for human use, including urban development, agriculture, and vineyards. The region is famous for its wine production, and many hillsides are covered with neat rows of grapevines.

Solar PV Potential

When considering areas nearby that would be most suited to large-scale solar PV installations, several factors come into play. The hilly terrain presents both challenges and opportunities for solar energy development. The most suitable areas for solar PV would likely be found on the flatter portions of the plateau, particularly to the north and east of Caxias do Sul. These areas offer more level ground, which is advantageous for the installation and maintenance of large solar arrays. Additionally, south-facing slopes (in the Southern Hemisphere) could potentially be utilized for solar installations, as they receive more direct sunlight throughout the year. However, it's important to note that the region's climate, characterized by frequent cloud cover and occasional fog, may impact the overall efficiency of solar power generation. Despite this, advancements in solar technology have made it increasingly viable even in less-than-ideal conditions.

Considerations for Solar Development

Any large-scale solar PV project in the region would need to carefully balance energy production potential with environmental and agricultural concerns. The area's importance for wine production and other agricultural activities means that land use conflicts could arise. Additionally, the natural beauty of the Serra Gaúcha region is a significant draw for tourism, so visual impact assessments would likely be necessary for any major solar installations. In conclusion, while the topography around Caxias do Sul presents some challenges for large-scale solar PV development, there are areas, particularly on the plateau and certain hillsides, that could be suitable. Careful planning and site selection would be crucial to maximize energy production while minimizing environmental and economic impacts on this unique and valuable region.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
