Cedral, São Paulo, Brazil presents a highly favorable location for year-round solar energy generation through photovoltaic (PV) systems. Located in the tropics at coordinates -20.9044, -49.252, this region benefits from consistent sunlight throughout most of the year, with seasonal variations characterized primarily by wet and dry periods rather than dramatic temperature changes.

Solar Energy Production Potential

The solar energy output data for Cedral demonstrates strong year-round performance, with seasonal variations that follow predictable patterns. Summer delivers the highest energy production at 7.01 kWh per day per kW of installed solar capacity, making it the peak season for solar generation. Spring follows as the second-best performing season with 6.50 kWh/day per kW, while autumn produces 5.80 kWh/day per kW. Winter shows the lowest output at 5.16 kWh/day per kW, though this still represents substantial energy generation compared to many temperate regions. The ideal times for solar generation at this location clearly favor the warmer months, with summer and spring providing approximately 25-35% more energy output than the winter months. However, even during the lowest-producing season, the location maintains strong solar potential.

Optimal Panel Configuration

For maximum year-round solar production in Cedral, São Paulo, fixed solar panels should be tilted at 19 degrees toward the north. This optimal angle is calculated by analyzing daily solar elevation angles throughout the year, determining optimal panel positioning for each day, and weighting these angles according to solar irradiance data while accounting for Earth's elliptical orbit around the sun.

Environmental and Weather Challenges

Several local factors in Cedral could potentially impact solar energy production, though most can be effectively managed with proper planning and installation techniques. The tropical wet season presents the most significant challenge to solar production. Heavy rainfall and increased cloud cover during wet months can reduce solar irradiance and energy output. Additionally, high humidity levels common in tropical regions can lead to moisture-related issues with electrical components if not properly sealed and protected. Dust and debris accumulation on solar panels is another concern, particularly during dry seasons when wind can carry particles that settle on panel surfaces and reduce efficiency. The tropical environment also supports abundant vegetation growth, which could create shading issues if trees or other plants are allowed to grow too close to solar installations.

Preventative Measures for Optimal Performance

Several installation strategies can help maximize solar energy production in Cedral's tropical environment:

• Install panels with adequate spacing and ventilation to prevent moisture buildup and allow for proper air circulation
• Use high-quality weatherproof sealing and corrosion-resistant materials designed for tropical climates
• Implement regular cleaning schedules to remove dust, debris, and any organic matter that accumulates on panel surfaces
• Position installations away from existing vegetation and maintain clear zones around solar arrays to prevent future shading
• Consider slight panel tilting beyond the optimal 19 degrees to promote natural cleaning during rainfall

Regular maintenance becomes particularly important in tropical locations like Cedral. Establishing a routine inspection and cleaning program will help ensure that environmental factors don't significantly impact the strong solar potential this location offers throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

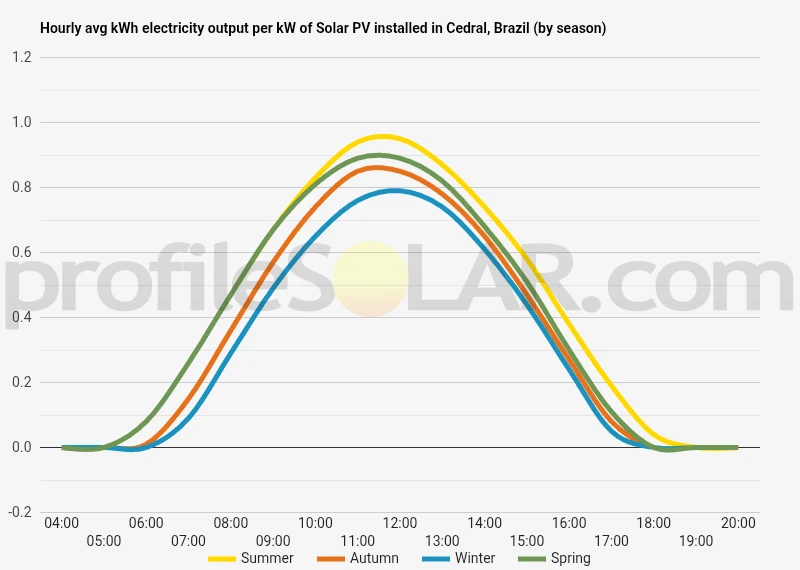

Solar output per kW of installed solar PV by season in Cedral

Seasonal solar PV output for Latitude: -20.9044, Longitude: -49.252 (Cedral, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° North in Cedral, Brazil

To maximize your solar PV system's energy output in Cedral, Brazil (Lat/Long -20.9044, -49.252) throughout the year, you should tilt your panels at an angle of 19° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cedral, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cedral, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	27° North in Autumn	36° North in Winter	14° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cedral, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cedral, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cedral, Brazil

Topographical Features Around Cedral

Cedral is situated in the northwestern region of São Paulo state, Brazil, within a landscape characterized by gently rolling hills and relatively modest elevation changes. The terrain around this municipality forms part of the broader Brazilian Plateau, featuring predominantly flat to slightly undulating topography with elevations typically ranging between 400 and 600 meters above sea level. The area represents a transition zone between the more mountainous regions to the southeast and the flatter plains extending toward the interior of Brazil.

The local topography is shaped by ancient geological formations, primarily consisting of sedimentary rocks overlain by fertile soils that have made the region attractive for agriculture. Small valleys and gentle slopes create a mosaic of terrain that rarely presents significant elevation barriers. Water features in the area include several small streams and seasonal watercourses that have carved subtle drainage patterns into the landscape over millennia.

The surrounding countryside is dominated by agricultural land use, with extensive areas of sugarcane cultivation, pastureland, and other crops taking advantage of the favorable terrain. The relatively flat nature of much of the land has facilitated mechanized farming and infrastructure development, creating an environment where large-scale projects can be readily implemented.

Optimal Areas for Solar Development

The topographical characteristics around Cedral present several advantages for large-scale solar photovoltaic installations. The most suitable areas would be the extensive flat to gently sloping agricultural lands that surround the municipality. These areas offer minimal grading requirements and would allow for efficient installation of solar arrays with consistent orientation and minimal shading between panel rows.

Particularly favorable locations would include the broad, open areas to the north and west of Cedral, where the terrain is especially flat and currently used for large-scale agriculture. These zones benefit from unrestricted sky access and minimal topographical obstacles that could create shadows or complicate installation procedures. The gentle nature of any existing slopes in these areas would actually be beneficial for solar installations, as slight southern-facing inclines can optimize panel positioning for maximum solar exposure.

Areas near existing agricultural infrastructure would be advantageous due to established road networks and proximity to electrical transmission infrastructure. The region's history of large-scale farming has resulted in substantial cleared areas that would require minimal additional land preparation for solar development. Additionally, the stable soil conditions typical of this geological setting would provide solid foundations for solar mounting systems.

The absence of significant hills, dense forests, or rocky outcroppings in much of the surrounding territory means that developers would have considerable flexibility in selecting sites based on other factors such as land availability, grid connection points, and transportation access. The consistent topographical conditions across large areas would also allow for standardized installation approaches and equipment, potentially reducing development costs and complexity.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
