Cerrito, Rio Grande do Sul, Brazil, located in the Southern Sub Tropics, presents a moderately favorable location for year-round solar PV energy generation, though with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this location varies considerably throughout the year. Summer delivers the strongest performance at 7.21kWh per day per kW of installed solar capacity, making it an excellent time for solar generation. Spring also provides good output at 5.63kWh per day per kW, while autumn drops to 4.51kWh per day per kW. Winter presents the most challenging period with only 3.01kWh per day per kW of installed capacity. This seasonal pattern means that summer and spring are the ideal times for solar generation at Cerrito, Rio Grande do Sul, producing more than double the energy compared to winter months. The substantial difference between peak summer and winter production highlights the importance of proper system sizing and energy storage considerations for year-round reliability.

Optimal Panel Installation

For a fixed panel installation at this location, the ideal angle to tilt panels to maximize total year-round production from solar PV is 27 degrees North. This angle is calculated by finding daily solar elevation angles at the latitude, calculating daily optimal panel tilt, weighting angles by daily PV potential using NASA's solar irradiance data, and summing weighted angles for the annual average while accounting for Earth's elliptical orbit.

Local Factors Affecting Solar Production

Several environmental and weather factors could potentially impact solar production in Cerrito's subtropical climate. High humidity levels common in subtropical regions can reduce solar panel efficiency and may lead to increased soiling from dust and organic matter that adheres more readily to panels in humid conditions. The region may experience periodic heavy rainfall and thunderstorms, particularly during summer months, which can temporarily reduce solar output and potentially cause physical damage to installations if not properly secured. Additionally, the subtropical location may be subject to occasional hail events that could damage solar panels.

Preventative Measures for Enhanced Performance

To maximize solar energy production despite these challenges, several preventative measures should be implemented:

• Install panels with robust mounting systems designed to withstand high winds and storm conditions typical of subtropical climates
• Choose panels with anti-reflective coatings and self-cleaning properties to minimize the impact of humidity-related soiling
• Implement regular cleaning schedules, particularly during high-humidity periods when organic matter and dust accumulation increases
• Select panels with hail-resistant tempered glass ratings appropriate for the region's weather patterns
• Ensure proper drainage around installations to prevent water pooling that could lead to ground-level humidity issues affecting lower panel edges

Proper ventilation spacing between panels and mounting surfaces will help combat efficiency losses from high humidity and temperature, while investing in quality inverters with good heat tolerance will ensure optimal power conversion even during humid subtropical conditions.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

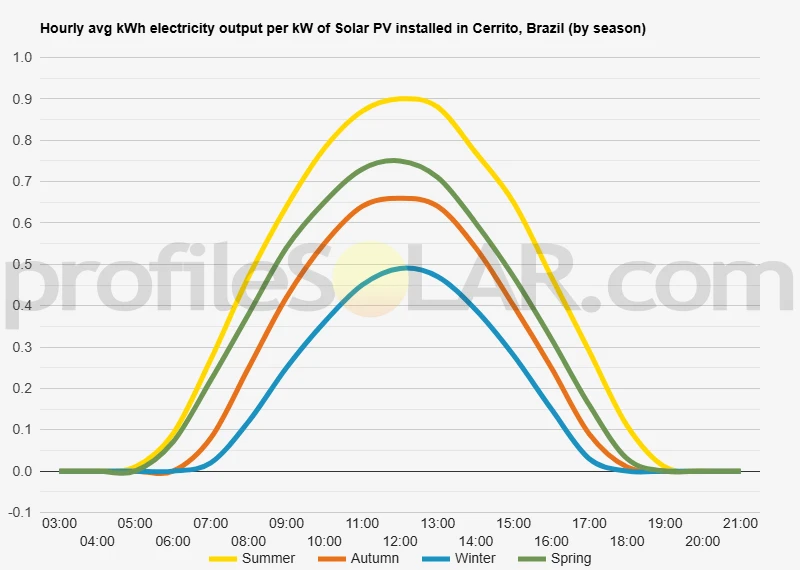

Solar output per kW of installed solar PV by season in Cerrito

Seasonal solar PV output for Latitude: -31.7381, Longitude: -52.7814 (Cerrito, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 27° North in Cerrito, Brazil

To maximize your solar PV system's energy output in Cerrito, Brazil (Lat/Long -31.7381, -52.7814) throughout the year, you should tilt your panels at an angle of 27° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cerrito, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cerrito, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 27° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
16° North in Summer	37° North in Autumn	47° North in Winter	24° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cerrito, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cerrito, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cerrito, Brazil

Topographical Features of the Cerrito Region

The area surrounding Cerrito in Rio Grande do Sul, Brazil, is characterized by gently rolling hills and undulating terrain typical of the southern Brazilian highlands. This region sits within the broader context of the Serra do Sudeste, where the landscape consists of moderate elevation changes rather than dramatic peaks or deep valleys. The topography features a series of rounded hills and broad valleys that create a naturally varied terrain without extreme slopes or challenging geographical obstacles. The elevation in this part of Rio Grande do Sul generally ranges from moderate to low hills, with the terrain gradually transitioning between different elevation levels. The landscape is predominantly rural and agricultural, with extensive areas of grassland and cultivated fields that take advantage of the region's fertile soils. The rolling nature of the terrain means that while there are elevation changes throughout the area, these transitions are generally gradual rather than steep. Water features in the region include several small streams and seasonal watercourses that flow through the valleys between the hills. These waterways have helped shape the local topography over time, creating natural drainage patterns that follow the contours of the land. The presence of these water features also indicates areas of lower elevation where runoff naturally collects.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations in the Cerrito area would be the elevated plateaus and gentle south-facing slopes that characterize much of the regional topography. These elevated areas offer several advantages for solar development, including reduced risk of flooding, good natural drainage, and typically fewer obstacles from existing vegetation or infrastructure. The broader hilltops and ridgelines present particularly attractive opportunities for solar farms, as these locations tend to have consistent exposure throughout the day and are less likely to experience shading from adjacent terrain features. The gentle nature of most slopes in the region means that large solar arrays can be installed without requiring extensive grading or terracing, which helps reduce development costs and environmental impact. Areas with moderate southern exposure would be especially well-suited for solar installations, as these locations can take advantage of optimal sun angles throughout the year. The relatively open agricultural landscape that dominates much of the region around Cerrito also means that large tracts of suitable land are potentially available for solar development, particularly in areas where the terrain is too rolling or the soils less ideal for intensive agriculture. The valley floors and lower-lying areas would generally be less suitable for large-scale solar installations due to potential drainage issues, higher humidity levels, and the possibility of morning fog or mist accumulation. Additionally, these lower areas are often the most fertile and valuable for agricultural purposes, making them less likely to be available for alternative land uses like solar energy development.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
