Cerro Azul, Paraná, Brazil represents a moderately good location for year-round solar energy generation, though it experiences notable seasonal variations typical of its Southern Sub Tropics climate zone at coordinates -24.8588, -49.2956.

Seasonal Solar Performance

The solar energy output at this location shows clear seasonal patterns that reflect the Southern Hemisphere's weather cycles. Summer delivers the strongest performance at 6.34 kWh per day per kW of installed solar capacity, making it the peak generation season. Spring follows as the second-best period with 5.38 kWh per day per kW, offering solid energy production as the region emerges from winter. Autumn sees a decline to 4.77 kWh per day per kW as the sun's angle decreases and weather patterns shift. Winter presents the most challenging conditions with output dropping to 4.02 kWh per day per kW, representing about 37% less generation compared to summer peak performance.

Optimal Installation Configuration

For fixed panel installations at Cerro Azul, Paraná, the ideal tilt angle is 22 degrees facing North to maximize total year-round solar production. This angle is calculated by analyzing daily solar elevation angles, determining optimal panel positioning, and weighting these factors using solar irradiance data that accounts for Earth's elliptical orbit patterns.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production at this Southern Sub Tropics location:

• High humidity levels typical of subtropical climates can reduce panel efficiency and create condensation issues
• Frequent cloud cover during certain seasons, particularly autumn and winter, contributes to reduced solar output
• Heavy rainfall periods common in subtropical regions can temporarily block sunlight and create debris accumulation on panels
• Temperature fluctuations between seasons may affect panel performance and longevity

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies prove beneficial. Ensuring adequate ventilation around solar panels helps combat humidity effects and prevents overheating during warmer months. Installing panels with proper drainage angles prevents water pooling and facilitates natural cleaning during rain events. Regular maintenance scheduling becomes particularly important in this climate, with periodic cleaning to remove accumulated debris, leaves, or dust that could shade panels. Using corrosion-resistant mounting hardware and electrical components designed for humid subtropical conditions extends system lifespan and maintains optimal performance. Implementing micro-inverters or power optimizers can help minimize the impact of partial shading from passing clouds or debris on individual panels, ensuring the entire system doesn't suffer when only portions are affected. Additionally, selecting solar panels with strong performance warranties specifically rated for high-humidity environments provides long-term reliability assurance.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

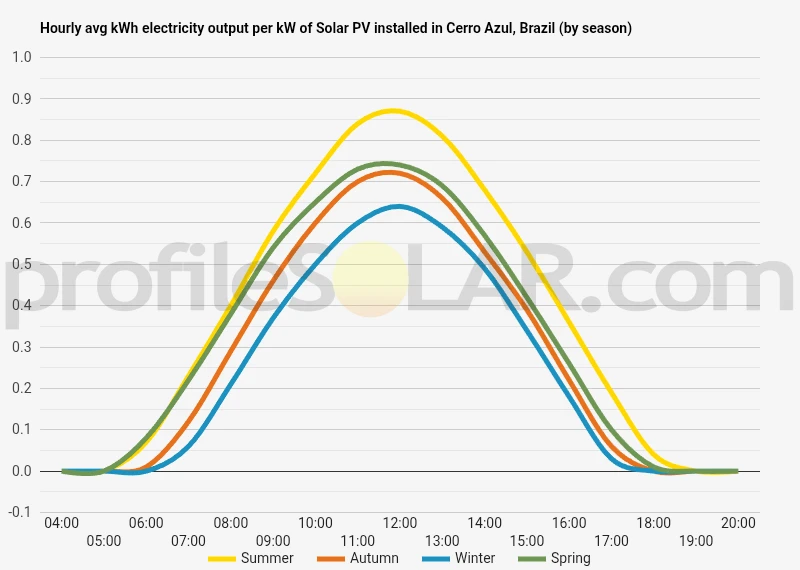

Solar output per kW of installed solar PV by season in Cerro Azul

Seasonal solar PV output for Latitude: -24.8588, Longitude: -49.2956 (Cerro Azul, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 22° North in Cerro Azul, Brazil

To maximize your solar PV system's energy output in Cerro Azul, Brazil (Lat/Long -24.8588, -49.2956) throughout the year, you should tilt your panels at an angle of 22° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cerro Azul, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cerro Azul, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 22° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° North in Summer	31° North in Autumn	40° North in Winter	18° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cerro Azul, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cerro Azul, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cerro Azul, Brazil

Topographical Features Around Cerro Azul

Cerro Azul sits within the mountainous terrain of Paraná state in southern Brazil, positioned along the Serra do Mar mountain range. The landscape around this municipality is characterized by rolling hills, steep valleys, and forested ridges that create a complex topographical pattern. The region experiences significant elevation changes, with the town itself perched at a considerable altitude above sea level, contributing to its cooler climate compared to lower-lying areas of Paraná.

The surrounding terrain consists primarily of undulating highlands interspersed with deeper valleys carved by local waterways. Dense Atlantic Forest remnants cover much of the steeper slopes, while agricultural activities and pastureland occupy the more gentle inclines and valley floors. The topography becomes increasingly rugged toward the east, where the Serra do Mar descends toward the coastal plain, creating dramatic elevation gradients over relatively short distances.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be found on the broader, more gently sloping plateaus and ridge tops that offer relatively flat terrain with minimal shading from surrounding hills. These elevated areas typically provide better exposure to solar radiation throughout the day, as they avoid the shadowing effects common in the deeper valleys and heavily forested slopes.

Agricultural lands on the less steep hillsides present particularly promising opportunities, especially areas currently used for pasture or crop cultivation that already have cleared vegetation and established access routes. The moderate slopes of these farming areas can actually be beneficial for solar installations, as slight inclinations help with natural drainage and can optimize panel orientation for maximum energy capture.

Valley floors, while offering flatter terrain that might seem ideal for construction, often experience more frequent fog and cloud cover due to their lower elevation and proximity to water sources. Additionally, these areas may face seasonal flooding risks and typically have higher humidity levels that could affect equipment performance and maintenance requirements.

The region's existing infrastructure networks, including roads connecting to the BR-476 highway and local power transmission lines, would be important considerations for any large-scale solar development. Areas with proximity to these existing utilities while maintaining suitable topographical characteristics would offer the best combination of technical feasibility and economic viability for solar energy projects.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
