Cerro Largo, Rio Grande do Sul, Brazil presents a moderately favorable location for year-round solar photovoltaic energy generation, though with notable seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this Southern Sub Tropics location shows significant seasonal fluctuation. Summer delivers the strongest performance at 7.73 kWh per day per kW of installed capacity, making it the prime season for solar generation. Spring follows as the second-best performing season with 6.07 kWh per day per kW, offering substantial energy production during this transitional period. Autumn sees a notable decline in solar output, dropping to 4.86 kWh per day per kW of installed solar capacity. Winter presents the most challenging conditions for solar generation, with output falling to just 3.63 kWh per day per kW - less than half of summer's peak performance.

Optimal Installation Configuration

For maximum year-round energy production at Cerro Largo, Rio Grande do Sul, solar panels should be installed at a fixed tilt angle of 24 degrees facing North. This angle has been calculated to optimize total annual solar output by accounting for the sun's varying position throughout the year and weighting these angles against actual solar irradiance data.

Environmental and Weather Considerations

Several local factors in the Cerro Largo region could potentially impact solar energy production:

• Subtropical humidity and frequent cloud cover during certain seasons may reduce solar irradiance
• Heavy rainfall periods, particularly during summer months, can temporarily reduce panel efficiency
• High humidity levels may accelerate dust and debris accumulation on panel surfaces
• Potential for severe weather events including hailstorms that could damage solar installations

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation strategies should be implemented:

• Install panels with adequate spacing and ventilation to prevent moisture buildup and ensure proper air circulation
• Use high-quality mounting systems designed to withstand severe weather conditions and potential hail damage
• Implement regular cleaning schedules to remove dust, debris, and organic matter that accumulates more rapidly in humid conditions
• Consider anti-reflective coatings and hydrophobic treatments to help panels self-clean during rain events
• Install monitoring systems to quickly identify and address any performance issues related to weather impacts

While Cerro Largo's location offers reasonable solar potential, the significant seasonal variation means that energy storage solutions or grid-tied systems would be essential for consistent year-round power supply. The location's subtropical climate requires more maintenance attention than drier regions, but with proper installation and maintenance practices, solar PV systems can still provide valuable renewable energy generation throughout the year.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

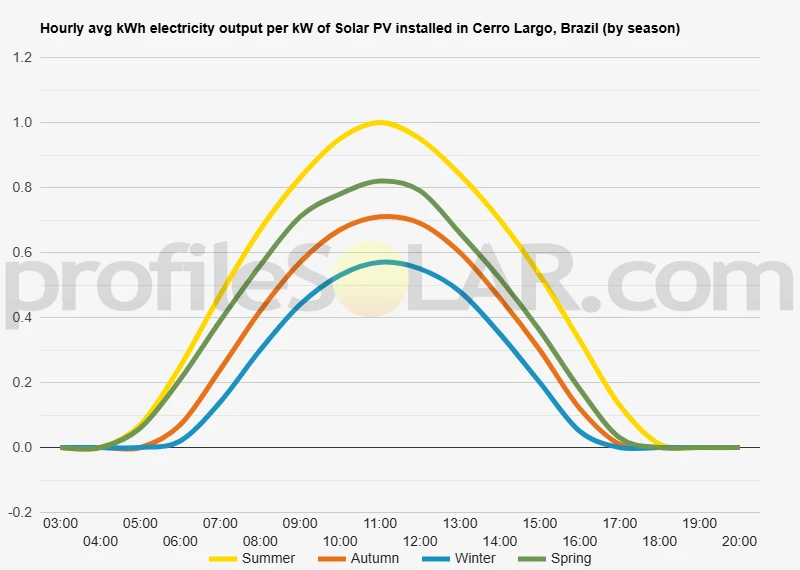

Solar output per kW of installed solar PV by season in Cerro Largo

Seasonal solar PV output for Latitude: -28.1341, Longitude: -54.7341 (Cerro Largo, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Cerro Largo, Brazil

To maximize your solar PV system's energy output in Cerro Largo, Brazil (Lat/Long -28.1341, -54.7341) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cerro Largo, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cerro Largo, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° North in Summer	33° North in Autumn	43° North in Winter	21° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cerro Largo, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cerro Largo, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cerro Largo, Brazil

Topographical Features of the Cerro Largo Region

The area around Cerro Largo in southern Brazil is characterized by gently rolling hills and undulating terrain typical of the Rio Grande do Sul state's northern plateau region. This landscape forms part of the broader Planalto Meridional, where elevations gradually rise from the coastal plains toward the interior highlands. The topography features a series of low ridges and shallow valleys, with slopes that are generally moderate rather than steep. The terrain in this region consists primarily of grasslands interspersed with patches of mixed forest, particularly along watercourses and in protected valleys. The landscape has been significantly modified by agricultural activities, with extensive areas converted to cropland and pasture. These modifications have created large, relatively flat expanses that were formerly part of the natural rolling prairie ecosystem. Drainage patterns follow the natural contours of the land, with numerous small streams and tributaries flowing through the valleys between the low hills. The watershed characteristics contribute to the overall gentle nature of the topography, as water erosion over time has created smooth, rounded landforms rather than sharp escarpments or dramatic elevation changes.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be found on the broader hilltops and ridge systems that dominate the local landscape. These elevated areas typically offer several advantages, including reduced risk of flooding, minimal shading from surrounding terrain, and often better access to existing infrastructure networks. The gentle slopes of these ridge systems can accommodate large arrays while maintaining reasonable construction and maintenance access. Agricultural areas that have been converted to extensive cropland represent another prime opportunity for solar development. These locations have already been cleared and leveled to some degree, reducing initial site preparation requirements. The existing field systems often provide adequate space for utility-scale installations, and the agricultural road networks can facilitate construction and ongoing operations. Areas with southern-facing slopes would be particularly advantageous, as they can maximize solar exposure throughout the day. The moderate gradient of most slopes in the region means that proper panel orientation can be achieved without excessive grading or terracing. However, care should be taken to avoid areas with significant seasonal drainage or those prone to erosion during heavy rainfall periods. The flatter valley floors, while offering easy construction access, may be less suitable due to potential drainage issues and the possibility of morning fog accumulation that could reduce solar collection efficiency. Additionally, these lower-lying areas might be subject to occasional flooding during extreme weather events, which could pose risks to solar infrastructure.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
