Chapadinha, Maranhão, Brazil represents an excellent location for year-round solar photovoltaic energy generation. Located in the tropical region where sunlight remains consistent throughout most of the year, this area experiences seasons characterized more by wet and dry periods rather than the dramatic temperature variations found in temperate climates.

Solar Energy Production Performance

The solar energy output at this location demonstrates remarkably strong and consistent performance across all seasons. The data shows a clear seasonal pattern with production ranging from 5.56 kWh per day per kW of installed solar capacity in summer to an impressive 6.58 kWh per day per kW in spring. Spring emerges as the optimal season for solar generation, producing 6.58 kWh/day per kW of installed capacity. Winter follows closely with 6.08 kWh/day per kW, while autumn generates 5.85 kWh/day per kW. Even the lowest-producing season, summer, still delivers a substantial 5.56 kWh/day per kW. For maximum year-round energy production from a fixed panel installation at this location, the ideal tilt angle is 4 degrees North. This relatively shallow angle reflects the location's proximity to the equator and optimizes solar capture throughout the entire year.

Environmental and Weather Factors

Several significant environmental factors could potentially impact solar production at Chapadinha and require careful consideration during installation planning. The tropical climate brings intense seasonal rainfall during wet periods, which can reduce solar irradiance through cloud cover and atmospheric moisture. Heavy rains can also deposit dirt, debris, and organic matter on solar panels, creating a film that blocks sunlight and reduces efficiency. High humidity levels throughout much of the year can lead to moisture-related issues, including potential corrosion of electrical components and reduced panel performance. The combination of heat and humidity also creates ideal conditions for rapid vegetation growth, which could shade panels if not properly managed. Dust accumulation during dry seasons presents another challenge, as fine particles can build up on panel surfaces and significantly reduce energy output if left uncleaned.

Preventative Measures for Optimal Performance

Several preventative measures can help ensure maximum energy production despite these environmental challenges:

• Install panels with adequate tilt (the recommended 4 degrees North) to promote natural cleaning through rainfall and prevent water pooling
• Implement regular cleaning schedules, particularly during dry seasons when dust accumulation is highest
• Use high-quality mounting systems and electrical components designed for tropical climates with enhanced corrosion resistance
• Maintain proper vegetation management around solar installations to prevent shading
• Consider anti-reflective and hydrophobic coatings on panels to reduce soiling and improve water runoff

Despite these environmental considerations, Chapadinha's consistent solar resource and strong year-round production potential make it an highly suitable location for solar PV installations. With proper planning and maintenance protocols, solar systems can achieve excellent performance throughout the year at this tropical location.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

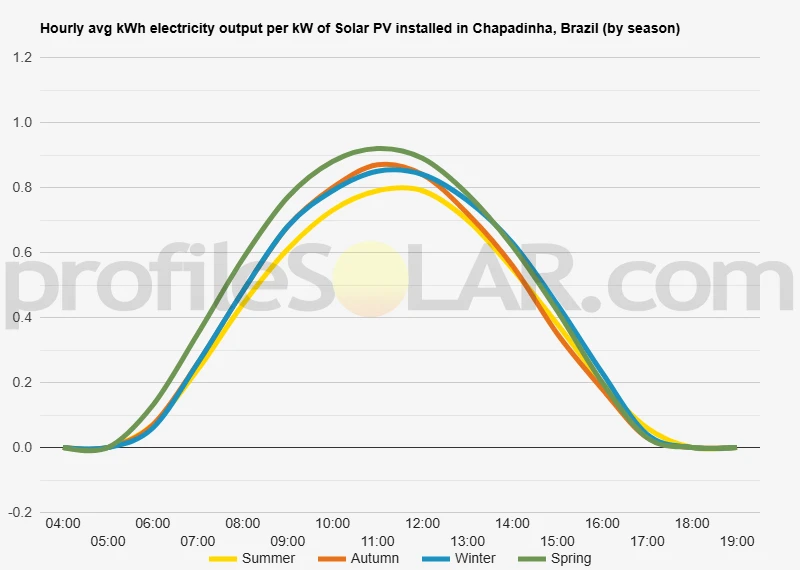

Solar output per kW of installed solar PV by season in Chapadinha

Seasonal solar PV output for Latitude: -3.6928, Longitude: -43.4629 (Chapadinha, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 4° North in Chapadinha, Brazil

To maximize your solar PV system's energy output in Chapadinha, Brazil (Lat/Long -3.6928, -43.4629) throughout the year, you should tilt your panels at an angle of 4° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Chapadinha, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Chapadinha, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 4° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° South in Summer	10° North in Autumn	19° North in Winter	2° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Chapadinha, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Chapadinha, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Chapadinha, Brazil

Topographical Features of Chapadinha

Chapadinha sits in the northeastern region of Maranhão state, positioned within Brazil's transitional zone between the Amazon Basin and the semi-arid Caatinga region. The landscape around this municipality is characterized by gently rolling hills and relatively flat plateaus, with elevations typically ranging from 100 to 300 meters above sea level. The terrain represents part of the Brazilian Highlands' northeastern extension, where ancient geological formations have been weathered into moderate undulations rather than steep mountainous terrain.

The region's topography is dominated by what geographers call "chapadas" - elevated flatlands that give the city its name. These plateau-like formations are interspersed with shallow valleys and gentle slopes, creating a landscape that is neither completely flat nor dramatically mountainous. The area experiences a gradual transition from the more humid coastal lowlands to the drier interior highlands, resulting in varied microclimates across relatively short distances.

Drainage and Water Features

Several small rivers and seasonal streams flow through the Chapadinha region, generally following northeast-southwest orientations as they drain toward the Atlantic Ocean. The Munim River system influences the eastern portions of the area, while smaller tributaries create shallow valleys that break up the otherwise gently undulating terrain. During the wet season, these waterways can create temporary wetlands in lower-lying areas, though most of the landscape maintains good drainage due to the moderate elevation changes.

The presence of these water features, combined with the region's position between different climate zones, creates a mosaic of vegetation types ranging from gallery forests along waterways to more open savanna-like areas on the higher, drier plateaus.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Chapadinha would be the elevated plateau areas to the south and west of the city center. These chapada formations offer several advantages for solar development, including relatively flat terrain that minimizes grading requirements and reduces installation costs. The higher elevations also tend to have better air circulation, which helps maintain optimal operating temperatures for solar panels.

Areas approximately 10 to 20 kilometers southwest of Chapadinha present particularly favorable conditions, where the landscape consists of gently sloping plateaus with minimal vegetation cover. These locations benefit from excellent southern exposure and limited shading from topographical features. The terrain in these areas typically has slopes of less than 5 degrees, making them ideal for large solar arrays without requiring extensive earthwork.

The eastern approaches to Chapadinha, while flatter in some areas, are less optimal due to their proximity to river systems and associated wetlands, which can create humidity and maintenance challenges. Additionally, the northern areas tend to have more irregular topography with scattered hills that could create shading issues for solar installations.

Sites located on the higher plateaus also offer logistical advantages, as they are generally accessible via existing rural roads while being sufficiently elevated to avoid flooding during heavy rainfall periods. The stable geological foundation of these ancient highland formations provides excellent support for solar mounting systems and associated infrastructure.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
