Chaval, Ceará, Brazil presents an excellent location for year-round solar energy generation through photovoltaic panels. Located in the tropical region at coordinates -3.0762, -41.2403, this area benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than the traditional temperature-based seasons found in temperate climates.

Solar Energy Output Performance

The solar energy production data for Chaval shows remarkably consistent and strong performance across all seasons. During summer months, solar panels can be expected to generate 5.88 kWh per day for each kW of installed capacity. Autumn performance remains nearly identical at 5.90 kWh per day per kW installed. Winter months actually show improved performance, with output increasing to 6.28 kWh per day per kW of installed solar capacity. Spring emerges as the peak season for solar generation, delivering an impressive 6.96 kWh per day per kW of installed panels.

Optimal Installation Configuration

For maximum year-round energy production at this Chaval location, solar panels should be installed at a fixed tilt angle of 3 degrees facing North. This optimal angle is calculated by analyzing daily solar elevation angles at the specific latitude, determining daily optimal panel positioning, and weighting these angles according to photovoltaic potential using solar irradiance data that accounts for Earth's elliptical orbit patterns.

Environmental and Weather Challenges

Several significant environmental factors in Chaval could potentially impact solar energy production and require careful consideration during installation planning. The tropical climate brings intense humidity and frequent rainfall, particularly during wet seasons. High humidity levels can lead to corrosion of electrical components and mounting hardware if not properly protected. Heavy rainfall, while beneficial for natural panel cleaning, can also create challenges with water infiltration into electrical systems. Dust and particulate matter accumulation on panel surfaces represents another concern, especially during drier periods when natural rainfall cleaning is reduced. The tropical environment also supports abundant vegetation growth, which could create shading issues if not properly managed during site planning.

Preventative Installation Measures

To maximize energy production despite these environmental challenges, several preventative measures should be implemented:

• Install panels with robust waterproof sealing and use marine-grade electrical components designed to withstand high humidity conditions
• Ensure proper drainage systems around panel installations to prevent water pooling and potential electrical hazards
• Design mounting systems with adequate spacing between panels and roof surfaces to promote air circulation and reduce moisture buildup
• Implement regular cleaning schedules during dry periods to remove dust accumulation that could reduce panel efficiency
• Conduct thorough site surveys to identify and remove potential vegetation-based shading sources before installation

The consistently high solar output potential throughout the year, with spring showing peak performance, makes Chaval an highly attractive location for solar energy investment, provided that proper environmental protections are incorporated into the installation design.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

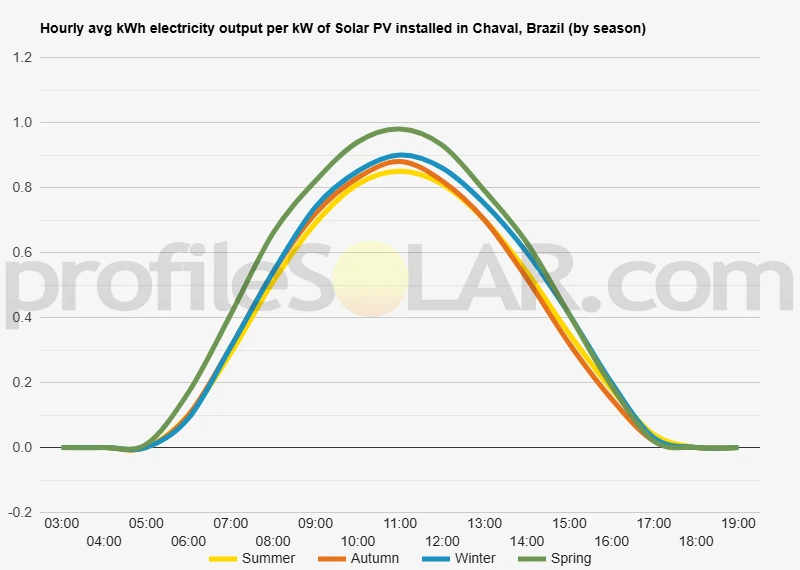

Solar output per kW of installed solar PV by season in Chaval

Seasonal solar PV output for Latitude: -3.0762, Longitude: -41.2403 (Chaval, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 3° North in Chaval, Brazil

To maximize your solar PV system's energy output in Chaval, Brazil (Lat/Long -3.0762, -41.2403) throughout the year, you should tilt your panels at an angle of 3° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Chaval, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Chaval, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 3° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° South in Summer	10° North in Autumn	19° North in Winter	3° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Chaval, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Chaval, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Chaval, Brazil

Topographical Characteristics of the Chaval Region

Chaval is located in the northern region of Ceará state, Brazil, positioned within the semi-arid Caatinga biome. The topography around this area is characterized by gently rolling plains and low-lying terrain, with elevations typically ranging from 50 to 200 meters above sea level. The landscape features expansive flat to moderately undulating areas that stretch across much of the surrounding region, broken occasionally by small hills and isolated rock formations known locally as inselbergs.

The terrain consists primarily of crystalline basement rock covered by thin layers of sedimentary deposits and weathered materials. This geological foundation creates relatively stable ground conditions with good drainage characteristics. The region experiences a tropical semi-arid climate with distinct wet and dry seasons, which has shaped the landscape over millennia through erosional processes that have created the predominantly flat topography seen today.

Vegetation in the area is typical of the Caatinga ecosystem, featuring drought-resistant shrubs, small trees, and cacti that are well-adapted to the semi-arid conditions. During dry periods, much of the vegetation becomes dormant, creating an open landscape with minimal canopy cover that could interfere with solar installations.

Optimal Areas for Large-Scale Solar Development

The extensive flat plains surrounding Chaval present excellent opportunities for large-scale solar photovoltaic installations. The most suitable areas are the broad, level expanses located to the east and southeast of the town, where the terrain remains consistently flat for several kilometers with minimal elevation changes. These areas offer the advantage of simplified construction logistics and reduced earthwork requirements for solar array installation.

The northwestern quadrant of the region also contains promising sites, particularly where the landscape consists of gentle slopes facing southward. These locations would benefit from optimal solar exposure while maintaining relatively easy access for construction and maintenance activities. The sparse vegetation cover in these areas means minimal clearing would be required, reducing environmental impact and development costs.

Areas with slightly elevated positions, such as the low ridges and plateaus scattered throughout the region, could also serve as excellent solar sites. These locations often provide natural drainage advantages and may offer better wind circulation for cooling solar panels. The stable geological conditions throughout the region mean that most areas would provide solid foundations for solar mounting systems.

When considering large-scale development, the proximity to existing infrastructure becomes crucial. Areas within reasonable distance of the BR-402 highway and local road networks would be most practical for solar installations, as they offer better access for equipment transportation and grid connection possibilities. The relatively flat terrain throughout most of the region means that multiple large sites could potentially be developed without significant topographical constraints.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
