Chopinzinho, Paraná, Brazil, located in the Southern Sub Tropics, demonstrates strong seasonal variation in solar energy production that makes it a moderately good location for year-round solar PV installations.

Seasonal Solar Performance

The location shows excellent summer performance with 6.95 kWh per day per kW of installed solar capacity, making this the peak production season. Spring also delivers strong results at 6.09 kWh per day per kW. Autumn production drops to 5.32 kWh per day per kW, while winter represents the lowest output period at 4.04 kWh per day per kW of installed capacity. This seasonal pattern reflects the Southern Hemisphere's solar cycle, where December through February provides optimal conditions, while June through August presents the greatest challenges for solar generation.

Optimal Panel Configuration

For maximum year-round energy production at this location, solar panels should be installed at a fixed tilt angle of 23 degrees facing North. This angle has been calculated to optimize total annual solar output by accounting for the sun's changing position throughout the year and weighting for actual solar irradiance conditions.

Local Factors Affecting Solar Production

Several environmental and weather factors in this Southern Sub Tropical region can impact solar energy generation:

• High humidity levels can reduce panel efficiency and promote faster degradation of equipment
• Frequent rainfall during certain seasons may cause temporary production drops and require regular panel cleaning
• Potential for severe weather events including strong winds and hail storms
• Dense vegetation growth in the subtropical climate can create shading issues if not properly managed

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation strategies should be implemented:

• Use corrosion-resistant mounting systems and electrical components designed for high-humidity environments
• Install panels with adequate ventilation space underneath to improve cooling and reduce humidity-related efficiency losses
• Design robust mounting structures capable of withstanding regional wind loads and potential hail damage
• Establish regular maintenance schedules for cleaning panels, especially after heavy rain periods
• Carefully plan site layout to avoid shading from existing or future vegetation growth
• Consider anti-reflective coatings and self-cleaning panel technologies where budget permits

Despite the seasonal variation and environmental considerations, Chopinzinho's location receives sufficient solar radiation year-round to make solar PV installations economically viable, particularly when proper installation techniques and maintenance practices are followed.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

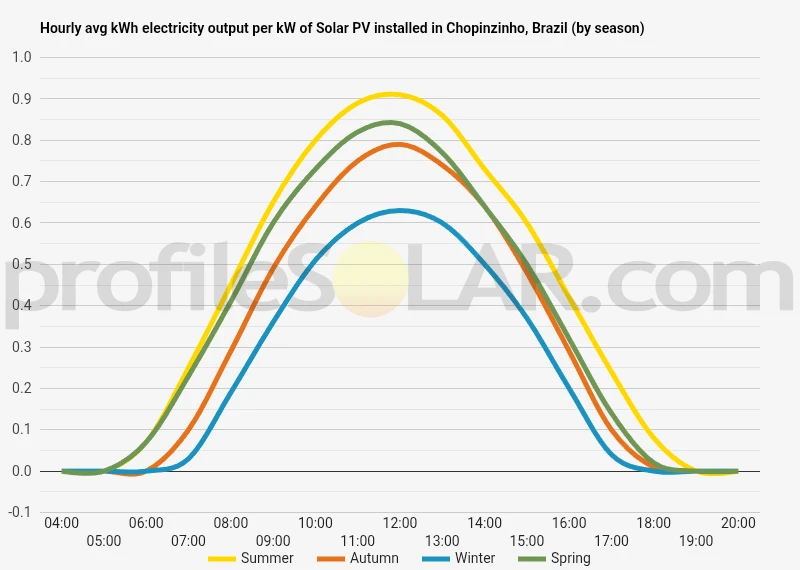

Solar output per kW of installed solar PV by season in Chopinzinho

Seasonal solar PV output for Latitude: -25.8104, Longitude: -52.456 (Chopinzinho, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 23° North in Chopinzinho, Brazil

To maximize your solar PV system's energy output in Chopinzinho, Brazil (Lat/Long -25.8104, -52.456) throughout the year, you should tilt your panels at an angle of 23° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Chopinzinho, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Chopinzinho, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 23° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
10° North in Summer	31° North in Autumn	41° North in Winter	19° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Chopinzinho, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Chopinzinho, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Chopinzinho, Brazil

Topographical Features of the Chopinzinho Region

Chopinzinho sits in the southwestern portion of Paraná state, Brazil, within a region characterized by gently rolling hills and relatively modest elevation changes. The area forms part of the broader Paraná Plateau, which extends across much of the state's interior. This plateau landscape features undulating terrain with gradual slopes rather than steep mountainous formations, creating a topography that is neither completely flat nor dramatically hilly.

The elevation around Chopinzinho typically ranges from approximately 400 to 600 meters above sea level, with the terrain sloping generally from east to west. The landscape is punctuated by shallow valleys carved by small streams and tributaries that eventually feed into larger river systems. These waterways have created a network of gentle depressions and ridges across the region, though none are particularly pronounced or steep.

The soil composition in this area consists primarily of fertile red earth known locally as "terra roxa," which has developed over volcanic rock formations. This rich soil has made the region highly suitable for agriculture, and much of the surrounding landscape has been converted to farmland and pasture. The original Atlantic Forest that once covered this region has been largely cleared, leaving an open landscape with scattered woodlots and riparian forests along stream corridors.

Climate and Weather Patterns

The region experiences a humid subtropical climate with distinct wet and dry seasons. Summer months bring frequent afternoon thunderstorms and cloud cover, while winter months tend to be drier with more consistent clear skies. The area occasionally experiences frost during the coldest winter months, though snow is extremely rare. Prevailing winds generally blow from the northeast and southeast, influenced by both continental and maritime air masses.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Chopinzinho would be the elevated ridges and gentle slopes that face north or northwest. These areas receive the most consistent solar exposure throughout the day and across seasons. The higher elevations, particularly those ranging from 500 to 600 meters above sea level, tend to have fewer obstructions and better air circulation, which can help maintain optimal panel temperatures.

Areas with gradual south-facing slopes should generally be avoided for solar installations, as they receive less direct sunlight during peak daylight periods. Similarly, the valley bottoms and areas near streams may experience more frequent morning fog and higher humidity levels, which could impact solar panel efficiency and create maintenance challenges.

The extensive agricultural areas surrounding Chopinzinho present both opportunities and considerations for solar development. Open pasturelands and areas with less productive soils could potentially be converted to solar farms without significantly impacting prime agricultural land. The relatively flat to gently rolling nature of much of this agricultural land would minimize grading and site preparation costs for solar installations.

Infrastructure considerations also favor certain areas for solar development. Locations near existing electrical transmission lines and major roads would reduce connection and maintenance costs. The region's proximity to several small towns and agricultural processing facilities provides existing electrical infrastructure that could potentially accommodate solar power integration.

Areas with good drainage characteristics would be preferable for solar installations, as they would be less prone to flooding during heavy rainfall periods and would require less extensive site preparation. The well-drained ridges and gentle slopes throughout the region generally offer these favorable drainage conditions.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]
