Chuvisca, Rio Grande do Sul, Brazil presents a moderately favorable location for year-round solar energy generation, though with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Production Patterns

The solar energy output at this Southern Sub Tropics location varies considerably throughout the year. Summer delivers the strongest performance at 7.34 kWh per day per kW of installed solar capacity, making it the ideal time for solar generation. Spring follows as the second-best season with 5.86 kWh per day per kW, while autumn drops to 4.64 kWh per day per kW. Winter presents the most challenging period, producing only 3.21 kWh per day per kW of installed capacity. This seasonal pattern means that solar installations at Chuvisca will generate more than twice as much electricity during peak summer months compared to winter. The location experiences its best solar generation during the warmer months from December through March, with spring (September through November) also providing strong output.

Optimal Panel Installation

For fixed panel installations at this location, the ideal angle to tilt panels to maximize total year-round production is 27 degrees North. This optimal tilt angle is calculated by analyzing daily solar elevation angles throughout the year and weighting them according to solar irradiance data, accounting for Earth's elliptical orbit around the sun.

Local Environmental and Weather Factors

Several environmental and weather factors in the Chuvisca region can potentially impact solar energy production:

• Humidity and moisture: The subtropical climate brings high humidity levels that can reduce panel efficiency and promote dirt accumulation on solar surfaces
• Seasonal rainfall: Extended wet periods during certain months may reduce solar irradiance and create challenges for maintenance access
• Agricultural dust and particles: The rural location may expose panels to agricultural dust, pollen, and other airborne particles that can coat panel surfaces
• Temperature fluctuations: Significant seasonal temperature variations can affect panel efficiency and create thermal stress on equipment

Preventative Measures for Better Performance

To maximize solar energy production despite these environmental challenges, several preventative measures should be implemented:

• Regular cleaning schedule: Establish monthly panel cleaning during dry seasons and more frequent cleaning during dusty agricultural periods
• Proper drainage design: Install systems with adequate drainage to prevent water pooling and ensure quick drying after rainfall
• Quality mounting systems: Use corrosion-resistant mounting hardware designed for high-humidity environments
• Ventilation spacing: Allow proper air circulation behind panels to manage heat buildup and improve efficiency
• Monitoring systems: Install performance monitoring to quickly identify when cleaning or maintenance is needed

While Chuvisca's location offers decent solar potential, particularly during summer and spring months, the significant seasonal variation and environmental factors require careful planning and regular maintenance to achieve optimal energy production year-round.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

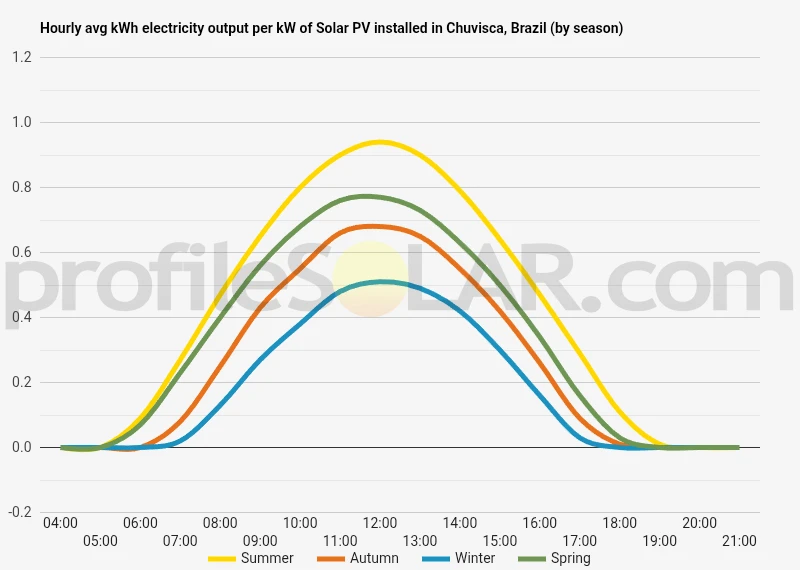

Solar output per kW of installed solar PV by season in Chuvisca

Seasonal solar PV output for Latitude: -30.7765, Longitude: -52.0022 (Chuvisca, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 27° North in Chuvisca, Brazil

To maximize your solar PV system's energy output in Chuvisca, Brazil (Lat/Long -30.7765, -52.0022) throughout the year, you should tilt your panels at an angle of 27° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Chuvisca, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Chuvisca, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 27° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
15° North in Summer	36° North in Autumn	46° North in Winter	23° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Chuvisca, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Chuvisca, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Chuvisca, Brazil

Topographical Features of Chuvisca Region

Chuvisca is located in the southern Brazilian state of Rio Grande do Sul, positioned within the Campanha region that forms part of the broader Pampas biome. The topography around this area is characterized by gently rolling hills and expansive grasslands that stretch across much of the southern portion of the state. The terrain consists primarily of undulating plains with modest elevation changes, creating a landscape of low ridges and shallow valleys that rarely exceed 200 meters above sea level.

The region sits within the Rio Grande do Sul's western plains, where the topography transitions from the more mountainous areas further east toward the flatter expanses that extend into Uruguay and Argentina. The local landscape features broad, open spaces with gentle slopes that drain toward various tributaries of the Rio Santa Maria system. These rolling grasslands are interspersed with occasional rocky outcrops and small patches of gallery forest along waterways.

The soil composition in this area consists largely of well-drained grassland soils developed over sedimentary bedrock, with some areas showing evidence of past volcanic activity from the Paraná Basin formation. The terrain exhibits good natural drainage due to the gentle gradients and permeable soil structure, which helps prevent waterlogging during the rainy season.

Optimal Areas for Large-Scale Solar Development

The gently rolling topography around Chuvisca presents several advantages for large-scale solar photovoltaic installations. The most suitable areas would be the elevated plateaus and south-facing slopes that characterize much of the local landscape. These locations offer excellent exposure to solar radiation while providing natural drainage and relatively stable ground conditions for mounting systems.

The broad, open grasslands extending northwest and southwest of Chuvisca represent particularly promising sites for solar development. These areas feature minimal vegetation that would require clearing, gentle gradients that facilitate construction and maintenance access, and sufficient space for extensive solar arrays. The rolling nature of the terrain allows for optimal panel positioning to maximize exposure throughout the day.

Areas with slight southern exposure on the regional ridgelines would be especially well-suited for solar installations, as they combine favorable topographical conditions with minimal shading from surrounding terrain. The relatively stable geological conditions and good drainage characteristics of these elevated areas also reduce long-term maintenance concerns and foundation requirements.

The expansive nature of the Pampas grasslands means that large solar installations could be developed without significant environmental disruption to forested areas, as the region is naturally characterized by open grassland ecosystems. The gentle topography also facilitates the construction of access roads and transmission infrastructure necessary for utility-scale solar projects.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
