Solar Energy Potential in Cidreira, Rio Grande do Sul, Brazil

Cidreira, Rio Grande do Sul, Brazil, located in the Southern Sub Tropics, shows varying potential for solar energy generation throughout the year. This coastal location experiences significant seasonal fluctuations in solar electricity production that potential solar panel owners should understand. The seasonal output from solar PV systems in Cidreira demonstrates clear patterns. During summer, production peaks at an impressive 7.51kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 5.97kWh/day, while autumn generates a moderate 4.60kWh/day. Winter represents the lowest production period with only 3.09kWh/day per installed kilowatt.

Seasonal Considerations

This seasonal pattern reveals that Cidreira's solar potential more than doubles from winter to summer. The location clearly favors summer and spring installations, when longer days and more direct sunlight maximize energy capture. However, the significant drop during winter months means that system sizing should account for these lower production periods if year-round energy independence is desired. For optimal year-round solar energy production in Cidreira, Rio Grande do Sul, solar panels should be installed at a fixed tilt angle of 26 degrees facing North. This specific angle has been calculated to maximize the annual solar energy capture based on Cidreira's latitude and seasonal solar patterns.

Environmental Considerations

Being a coastal location, Cidreira faces some environmental challenges that could affect solar production. Salt spray from the nearby Atlantic Ocean can gradually accumulate on panel surfaces, creating a film that reduces light transmission and overall efficiency. Regular cleaning with fresh water is recommended to prevent salt buildup. Sand carried by coastal winds can also cause abrasion and soiling of panels. Installing panels at sufficient height and using protective barriers or windbreaks can help mitigate this issue. Additionally, selecting panels with high-quality tempered glass and durable anti-reflective coatings will provide better resistance to these coastal conditions. Humidity levels in this subtropical coastal area may accelerate connector and wiring degradation. Using marine-grade components, proper sealing of electrical connections, and regular maintenance checks can extend system lifespan and maintain production efficiency despite these challenging conditions.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

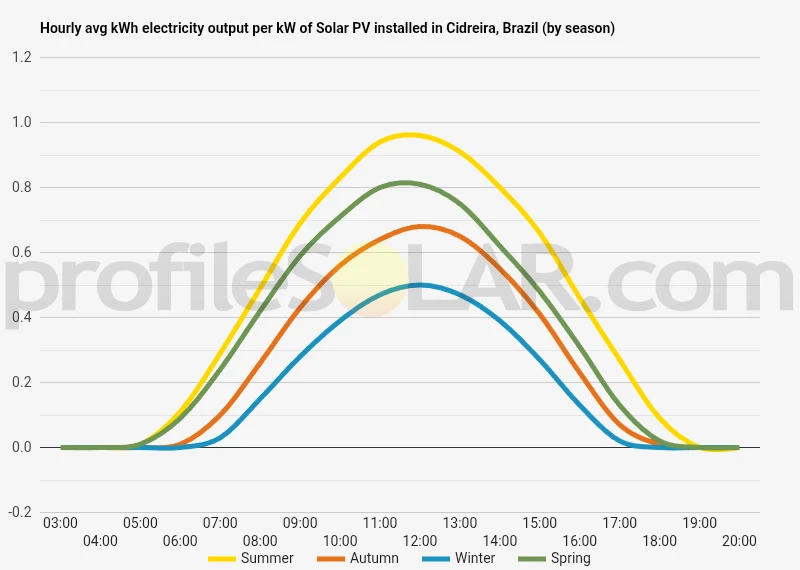

Solar output per kW of installed solar PV by season in Cidreira

Seasonal solar PV output for Latitude: -30.091, Longitude: -50.2694 (Cidreira, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 26° North in Cidreira, Brazil

To maximize your solar PV system's energy output in Cidreira, Brazil (Lat/Long -30.091, -50.2694) throughout the year, you should tilt your panels at an angle of 26° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cidreira, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cidreira, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 26° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° North in Summer	35° North in Autumn	45° North in Winter	23° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cidreira, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cidreira, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cidreira, Brazil

The topography around Cidreira, Brazil presents a predominantly flat coastal landscape characteristic of Rio Grande do Sul's eastern shoreline. Cidreira sits on Brazil's southernmost coastal plain, featuring extensive sandy beaches and low-lying terrain with minimal elevation changes. The area is part of a long barrier island system that separates the Atlantic Ocean from the Lagoa dos Patos, one of Brazil's largest lagoons. The immediate coastal zone consists of wide, sandy beaches backed by modest dunes that rarely exceed 5-8 meters in height. These dunes transition into flat, sandy plains extending several kilometers inland. Vegetation is typically sparse near the coast, consisting mainly of hardy coastal grasses and shrubs adapted to the salt spray and sandy conditions. Moving slightly inland, the landscape maintains its flat character but includes areas of wetlands, small freshwater lakes, and patches of coastal forest. The water table is generally high throughout the region, with numerous seasonal wetlands forming during periods of heavy rainfall. The entire region sits at very low elevation, typically between 0-15 meters above sea level.

Solar PV Potential Areas

For large-scale solar photovoltaic development, several areas near Cidreira offer favorable conditions. The most suitable locations would be the higher, drier portions of the coastal plain that extend inland from the immediate beachfront. These areas benefit from minimal shading, stable ground conditions, and reduced flood risk compared to the wetland areas. The flat topography throughout the region is advantageous for solar development as it minimizes earthwork requirements and simplifies construction. Areas approximately 3-10 kilometers inland from Cidreira offer a good balance of favorable conditions: they avoid the immediate coastal zone (where salt spray can accelerate equipment degradation) while still maintaining the excellent solar exposure characteristic of the region. The plains between Cidreira and neighboring municipalities like Tramandaí and Osório contain extensive open areas with appropriate drainage and accessibility via existing road networks. These inland plains, particularly those currently used for low-intensity grazing or agriculture, represent prime candidates for solar development. Areas to avoid would include the immediate dune systems (which are often environmentally protected and unstable), wetland zones (which flood seasonally), and any designated conservation areas that protect the region's unique coastal ecosystem. Additionally, the western portions of the region that approach the Lagoa dos Patos may experience more frequent fog conditions that could marginally impact solar performance. The region's predominant winds come from the northeast and southeast, which should be considered when designing array layouts. The flat terrain means wind exposure is consistent throughout the area, with minimal topographical features to provide natural windbreaks.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
