Cocal do Sul, Brazil presents a moderately good location for year-round solar energy generation, though with significant seasonal variations typical of its Southern Sub Tropics positioning. The solar output data shows this location can produce varying amounts of electricity throughout the year, making it reasonably viable for solar PV installations.

Seasonal Solar Performance

The location experiences its strongest solar generation during summer months, producing 6.09 kWh per day per kW of installed solar capacity. This represents the peak performance period when solar panels will generate the most electricity. Spring follows as the second-best season with 5.14 kWh per day per kW, offering solid energy production as daylight hours increase. Autumn sees a notable decline to 4.46 kWh per day per kW, while winter represents the challenging period with only 3.37 kWh per day per kW of production. This winter figure is approximately 45% lower than summer output, indicating significant seasonal variation that potential solar investors should consider when planning energy needs and system sizing.

Optimal Installation Configuration

For maximum year-round energy production at Cocal do Sul, solar panels should be installed at a fixed tilt angle of 26 degrees facing North. This angle has been calculated to optimize total annual solar output by accounting for the sun's varying position throughout the year and the location's specific latitude.

Environmental and Weather Factors

Several local factors could potentially impact solar energy production at this Southern Brazilian location:

• Coastal humidity and salt air: Being relatively close to the Atlantic coast, the area may experience higher humidity levels and salt-laden air that can reduce panel efficiency over time through corrosion and film buildup
• Subtropical storm systems: The region can experience intense rainfall and occasional severe weather during certain seasons, which may temporarily reduce solar output and potentially damage equipment
• Atmospheric haze and pollution: Industrial activities in the broader Santa Catarina region may contribute to air quality issues that can scatter sunlight and reduce panel efficiency

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation strategies should be considered:

• Enhanced panel cleaning systems: Install automated cleaning systems or establish regular manual cleaning schedules to remove salt deposits, dust, and organic matter that accumulate on panel surfaces
• Corrosion-resistant mounting: Use marine-grade aluminum or stainless steel mounting systems and hardware specifically designed to withstand coastal environmental conditions
• Improved drainage design: Ensure mounting systems allow proper water drainage to prevent standing water and reduce humidity-related issues around electrical connections
• Weather-resistant electrical components: Select inverters, connectors, and wiring rated for high humidity and temperature variations typical of subtropical climates

Overall, while Cocal do Sul faces some environmental challenges for solar generation, proper system design and maintenance can help ensure reliable energy production throughout the year, with summer and spring offering the most favorable conditions for maximum solar output.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

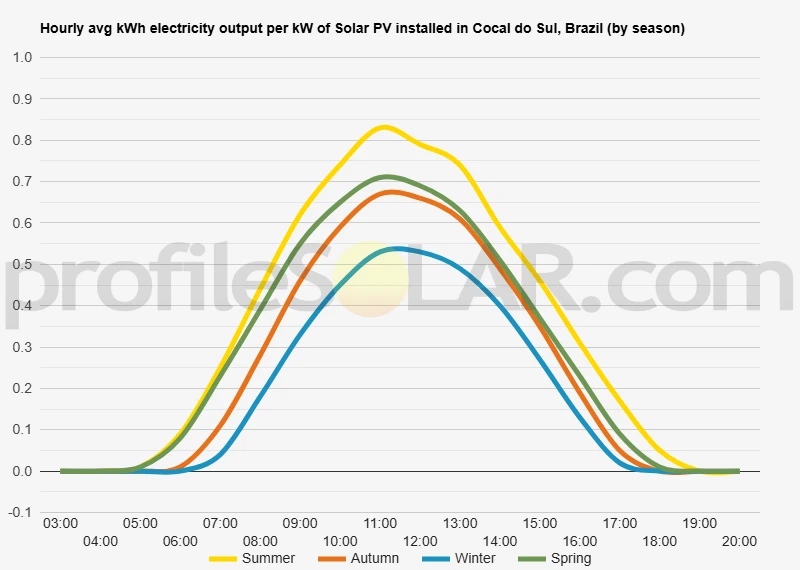

Solar output per kW of installed solar PV by season in Cocal Do Sul

Seasonal solar PV output for Latitude: -28.6027, Longitude: -49.3225 (Cocal Do Sul, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 26° North in Cocal Do Sul, Brazil

To maximize your solar PV system's energy output in Cocal Do Sul, Brazil (Lat/Long -28.6027, -49.3225) throughout the year, you should tilt your panels at an angle of 26° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cocal Do Sul, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cocal Do Sul, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 26° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° North in Summer	34° North in Autumn	44° North in Winter	21° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cocal Do Sul, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cocal Do Sul, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cocal Do Sul, Brazil

Topographical Features of Cocal do Sul

Cocal do Sul sits in the southern Brazilian state of Santa Catarina, positioned within the coastal mountain region that characterizes much of this area. The municipality lies approximately 180 kilometers south of Florianópolis, nestled in a landscape defined by rolling hills and moderate elevation changes typical of the Serra Geral mountain system's eastern slopes. The terrain around Cocal do Sul features a mix of undulating hills and small valleys, with elevations generally ranging from 50 to 400 meters above sea level. The topography becomes more pronounced as one moves inland toward the west, where the foothills of the Serra Geral create steeper gradients and more dramatic elevation changes. To the east, the land gradually descends toward the Atlantic coastal plain, creating gentler slopes and broader valley floors. The region's geology consists primarily of sedimentary rocks overlain by volcanic formations from ancient lava flows. This geological foundation has created a landscape with good drainage characteristics, though the area does experience occasional steep-sided valleys carved by local waterways. The Tubarão River system influences much of the local drainage patterns, creating fertile valley bottoms interspersed with higher ridgelines.

Climate and Weather Patterns

The subtropical climate of this region brings distinct seasonal variations that influence both the topography and land use patterns. The area experiences a humid subtropical climate with well-distributed rainfall throughout the year, though summer months typically see increased precipitation. This consistent moisture contributes to the lush vegetation cover that characterizes much of the surrounding landscape. Winter months bring cooler temperatures and occasional frost, particularly in the higher elevation areas to the west. The proximity to the Atlantic Ocean moderates temperature extremes, but the inland position of Cocal do Sul means it experiences more continental characteristics than coastal areas. Cloud cover varies seasonally, with clearer skies more common during the cooler months.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations around Cocal do Sul would be the gently sloping hillsides and ridge tops that offer good southern exposure and minimal shading from surrounding terrain. The areas immediately north and northwest of the municipality present particularly favorable conditions, where the topography provides natural south-facing slopes ideal for solar panel orientation. The elevated plateaus and broader hilltops scattered throughout the region offer excellent potential for large solar arrays. These locations typically feature stable ground conditions, good accessibility for construction and maintenance, and minimal interference from vegetation once cleared. The moderate elevation changes mean that grading requirements would be manageable while still providing optimal panel positioning. Areas to avoid would include the steeper valley sides and locations with significant tree cover that would require extensive clearing. The lower-lying areas near waterways, while potentially offering flat terrain, may present drainage challenges and could conflict with agricultural land use that is economically important to the region. The rolling nature of the landscape actually provides advantages for solar development, as it offers natural windbreaks and varied microclimates that can help with panel cooling. The stable geological foundation means that ground-mounted systems would have reliable anchoring points, while the moderate slopes facilitate natural drainage around installations. Transportation access via existing rural roads connects most potential sites to the regional electrical grid infrastructure, making development logistics more feasible. The agricultural nature of much of the surrounding land means that large parcels are available, though careful consideration would need to be given to preserving the most productive farming areas.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
