Coluna, Minas Gerais, Brazil represents an excellent location for year-round solar energy generation through photovoltaic systems. Located in the tropical region at coordinates -18.272, -42.828, this area benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than dramatic temperature changes.

Solar Energy Production Potential

The solar energy output data for Coluna demonstrates strong performance across all seasons. Summer delivers the highest production at 5.91 kWh per day per installed kilowatt, making it the peak generation period. Spring follows closely with 5.26 kWh/day per kW, while autumn maintains solid output at 5.43 kWh/day per kW. Even during winter, the weakest production season, the location still generates a respectable 4.42 kWh/day per kW. For optimal year-round energy capture, solar panels should be installed at a fixed tilt angle of 17 degrees facing north. This angle maximizes total annual production by accounting for the sun's path throughout the year and the location's specific latitude.

Environmental and Weather Considerations

Several local factors could potentially impact solar energy production in Coluna and require careful consideration during installation planning. The tropical climate brings significant rainfall during wet seasons, which can reduce solar irradiance temporarily. However, rain also provides a natural cleaning benefit for solar panels, washing away dust and debris that accumulate during drier periods. Humidity levels in tropical regions tend to be consistently high, which can affect equipment longevity and efficiency. High humidity may also contribute to more frequent cloud cover, particularly during afternoon hours in wet seasons.

Preventative Measures for Optimal Performance

To maximize energy production and system longevity in Coluna's climate, several installation strategies should be implemented:

• Install panels with adequate ventilation space underneath to promote air circulation and prevent overheating in the humid conditions
• Use corrosion-resistant mounting systems and electrical components specifically rated for high-humidity tropical environments
• Implement proper drainage systems around ground-mounted installations to prevent water accumulation during heavy rainfall periods
• Select panels and inverters with robust weather sealing to withstand moisture exposure
• Plan for regular maintenance schedules that account for faster accumulation of organic matter and potential mold growth in humid conditions

Despite these considerations, Coluna's consistent solar resource makes it highly suitable for solar energy generation, with the tropical location providing year-round production capabilities that many temperate regions cannot match.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

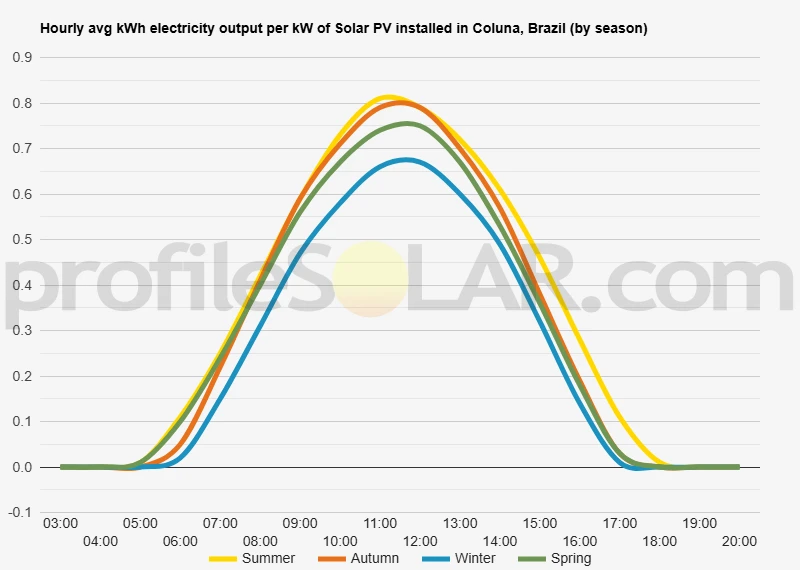

Solar output per kW of installed solar PV by season in Coluna

Seasonal solar PV output for Latitude: -18.272, Longitude: -42.828 (Coluna, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 17° North in Coluna, Brazil

To maximize your solar PV system's energy output in Coluna, Brazil (Lat/Long -18.272, -42.828) throughout the year, you should tilt your panels at an angle of 17° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Coluna, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Coluna, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 17° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
2° North in Summer	24° North in Autumn	34° North in Winter	12° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Coluna, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Coluna, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Coluna, Brazil

Topographical Features Around Coluna

Coluna is situated in the eastern region of Minas Gerais state, within Brazil's Atlantic Forest biome transition zone. The municipality sits at an elevation of approximately 800 meters above sea level, positioned on the undulating terrain characteristic of the Brazilian Highlands. This area forms part of the broader Mantiqueira mountain system, though Coluna itself occupies a relatively moderate elevation compared to the highest peaks in the region.

The landscape around Coluna features a series of rolling hills and gentle valleys, with the terrain generally sloping toward the east in the direction of the Doce River basin. The topography is marked by rounded hilltops and broad ridgelines that have been shaped by millions of years of weathering and erosion. These geological processes have created a landscape of moderate relief, where elevation changes are gradual rather than dramatic.

The region's geology consists primarily of crystalline rocks from the Precambrian era, including gneisses and granites that form the basement of the Brazilian Shield. These ancient rock formations contribute to the area's stability and create well-drained soils across much of the terrain. The weathering of these rocks has produced a landscape of gentle contours with occasional exposed rock outcrops on steeper slopes.

Drainage and Water Features

The drainage pattern around Coluna follows the regional topography, with numerous small streams and tributaries flowing eastward toward the Doce River system. These waterways have carved shallow valleys between the hills, creating a dendritic drainage network that reflects the underlying geological structure. The streams are typically seasonal, flowing more strongly during the rainy season and reducing to minimal flow during drier periods.

Small reservoirs and farm ponds dot the landscape, constructed to capture rainwater for agricultural and livestock purposes. These water features are generally located in the lower-lying areas between hills, where natural depressions make dam construction more feasible and effective.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Coluna would be the broad, gently sloping hilltops and ridge areas that dominate the local landscape. These elevated positions offer several advantages for solar development, including minimal shading from surrounding terrain and excellent exposure to solar radiation throughout the day. The gradual slopes of these hilltops, typically ranging from flat to moderate inclines, provide ideal conditions for solar panel installation without requiring extensive grading or terracing.

The areas immediately south and southeast of Coluna present particularly favorable conditions, where the terrain consists of extensive plateaus and gentle slopes facing optimal directions for solar collection. These locations benefit from the stable geological foundation provided by the crystalline bedrock, which can support large-scale infrastructure development with minimal foundation complications.

The broader valley floors, while flatter, may be less suitable due to potential morning and evening shading from surrounding hills, as well as occasional flooding during heavy rainfall periods. However, the wider valley areas that extend toward the east could still accommodate solar installations, particularly where the valley floors are sufficiently broad to minimize shading effects.

Agricultural areas on the gentler slopes and plateaus around Coluna could potentially be converted to solar use, especially on lands that are currently used for extensive cattle grazing. These areas typically have existing access roads and electrical infrastructure, which would reduce development costs and complexity for large-scale solar projects.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
