Conchal, São Paulo, Brazil presents a moderately good location for year-round solar energy generation, though it falls short of being ideal due to significant seasonal variations in solar output. The location experiences its strongest solar production during summer months at 6.78 kWh per day per kW of installed capacity, followed closely by spring at 6.22 kWh per day per kW.

Seasonal Performance Patterns

The solar energy potential drops considerably during cooler months, with autumn producing 5.55 kWh per day per kW and winter showing the lowest output at just 4.80 kWh per day per kW. This represents a 41% difference between the best and worst performing seasons, indicating that solar installations will need to account for this variability in their energy planning. Summer and spring emerge as the optimal periods for solar generation at this location, delivering approximately 30-40% more energy than the winter months. This seasonal pattern aligns with the Southern Hemisphere's solar cycle, where December through March provides peak solar conditions.

Optimal Installation Configuration

For fixed panel installations at Conchal, São Paulo, the ideal tilt angle is 21 degrees facing North to maximise total year-round solar production. This angle has been calculated by analyzing daily solar elevation angles at this latitude and weighting them according to solar irradiance data throughout the year.

Environmental and Weather Factors

Several local factors could potentially impact solar energy production at this location:

• Seasonal rainfall patterns: Brazil's tropical and subtropical regions often experience distinct wet and dry seasons, with heavy rainfall during summer months potentially reducing solar irradiance through cloud cover
• High humidity levels: Tropical climates typically maintain elevated humidity, which can create haze and atmospheric moisture that diminishes solar panel efficiency
• Dust and debris accumulation: Dry season conditions may lead to dust buildup on solar panels, reducing their light absorption capacity
• Temperature effects: High ambient temperatures common in Brazilian summers can reduce solar panel efficiency, as photovoltaic cells perform less effectively in extreme heat

Preventative Measures for Optimal Performance

To maximize energy production despite these challenges, several installation strategies should be considered:

• Regular cleaning schedules: Implement monthly panel cleaning during dry seasons and bi-weekly cleaning during dusty periods to maintain optimal light transmission
• Adequate ventilation spacing: Install panels with sufficient air gap beneath to promote cooling and prevent overheating that reduces efficiency
• Quality mounting systems: Use corrosion-resistant materials suitable for humid tropical conditions to ensure long-term structural integrity
• Drainage considerations: Design installations with proper water runoff to prevent standing water and moisture-related damage during heavy rainfall periods

While Conchal's location provides reasonable solar potential, the significant seasonal variation and environmental factors require careful planning and maintenance to achieve optimal energy production throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

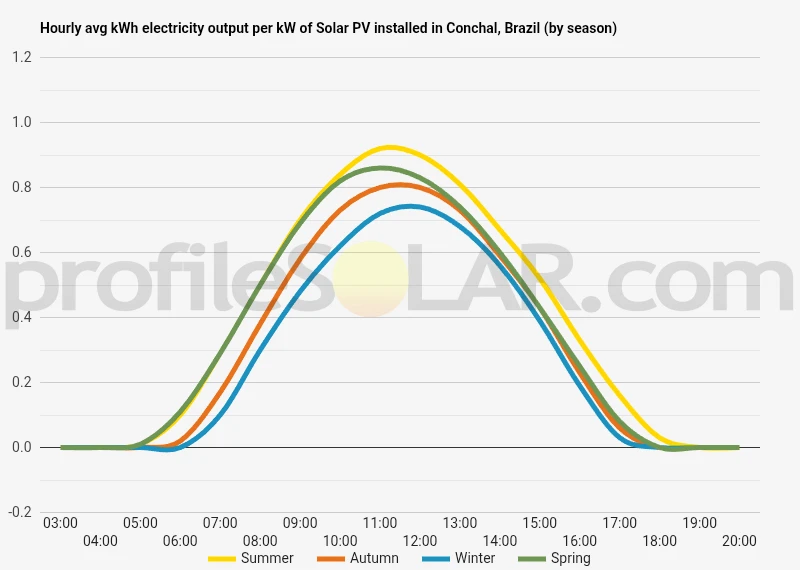

Solar output per kW of installed solar PV by season in Conchal

Seasonal solar PV output for Latitude: -22.3461, Longitude: -47.1362 (Conchal, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Conchal, Brazil

To maximize your solar PV system's energy output in Conchal, Brazil (Lat/Long -22.3461, -47.1362) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Conchal, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Conchal, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	28° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Conchal, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Conchal, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Conchal, Brazil

Topography Around Conchal, Brazil

The region surrounding Conchal in São Paulo state features predominantly gentle rolling hills and relatively flat terrain typical of the Brazilian Plateau's southeastern edge. This area sits within the broader Paulista Plateau, characterized by undulating topography with moderate elevation changes that rarely exceed significant gradients. The landscape consists of agricultural plains interspersed with low hills, creating a mosaic of farmland and natural vegetation remnants. The elevation in this region generally ranges from approximately 500 to 700 meters above sea level, with the terrain gradually sloping toward river valleys and drainage systems. The topography has been significantly modified by centuries of agricultural activity, particularly sugar cane cultivation and cattle ranching, which has resulted in cleared, open landscapes with minimal tree cover across large areas.

Drainage and Natural Features

Several small rivers and streams traverse the area, creating shallow valleys that cut through the otherwise gently undulating terrain. These waterways flow generally eastward toward larger river systems, forming natural boundaries and creating slight variations in the local topography. The drainage patterns have created some areas of lower-lying land that may experience seasonal moisture retention, while higher ground remains well-drained throughout the year. The soil composition consists primarily of weathered sedimentary and volcanic materials, creating relatively stable ground conditions. Rock outcroppings are uncommon in the immediate vicinity, though the underlying geology provides solid foundation conditions for infrastructure development.

Most Suitable Areas for Large-Scale Solar PV Development

The elevated plateaus and gently sloping hillsides south and southwest of Conchal present the most favorable conditions for large-scale solar photovoltaic installations. These areas offer several advantages including stable, well-drained ground conditions and minimal shading from natural features. The relatively flat to gently rolling terrain in these locations would require minimal grading and site preparation, reducing development costs significantly. Agricultural areas that have been cleared of natural vegetation, particularly former pastureland on higher elevations, would be particularly well-suited for solar development. These locations typically have existing access roads and are situated away from sensitive environmental areas. The open character of the landscape in these zones ensures minimal interference from surrounding vegetation or structures. Areas to the east and northeast of Conchal also show promise, where the terrain remains relatively flat with good drainage characteristics. These zones benefit from stable soil conditions and existing infrastructure access, making them practical choices for large-scale renewable energy projects.

Areas to Avoid for Solar Development

Lower-lying areas near stream corridors and natural drainage channels should be avoided due to potential flooding risks and environmental sensitivity. These riparian zones often contain remnant native vegetation that provides important ecological functions and may be subject to environmental protection regulations. Steeper hillsides, while uncommon in the region, would present challenges for solar panel installation and maintenance access. Areas with significant slope gradients would require extensive site preparation and could be subject to erosion concerns during construction and operation phases.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
