Solar Energy Potential in Congonhas, Minas Gerais, Brazil

Congonhas, Minas Gerais, Brazil, located at latitude -20.5316 and longitude -43.8591, offers promising conditions for solar PV energy generation throughout the year. This tropical location benefits from relatively consistent sunlight patterns, with seasons characterized more by wet and dry periods than by dramatic temperature changes. The solar energy production potential in Congonhas demonstrates good year-round performance. During summer months, solar panels can generate approximately 5.99 kWh per day for each kilowatt installed, representing the peak production period. Autumn yields about 5.44 kWh/day, while winter production drops slightly to 4.84 kWh/day per installed kilowatt. Spring rebounds to 5.47 kWh/day, nearly matching autumn production levels. For fixed solar panel installations in Congonhas, Minas Gerais, the ideal tilt angle to maximize total year-round production is 20 degrees facing North. This specific angle optimizes solar capture across seasonal variations, accounting for the location's position in the Southern Hemisphere.

Seasonal Considerations

The relatively small variation between seasonal production values (with only about a 19% difference between the highest and lowest seasons) indicates that Congonhas offers favorable conditions for solar energy throughout the year. Summer naturally provides the best generation potential, making December through February particularly productive months for solar energy harvesting. Even during winter months (June through August), when production reaches its annual minimum, the output remains substantial at 4.84 kWh/day per installed kilowatt. This minimal seasonal fluctuation makes Congonhas an excellent location for consistent solar energy generation.

Environmental Considerations

Being in a tropical region, Congonhas faces some environmental factors that could impact solar production. The area experiences a rainy season, typically occurring during summer months, which might temporarily reduce solar efficiency due to cloud cover. However, these same months also offer the highest solar potential, helping to offset cloudy periods. Dust accumulation can be a concern in this region, particularly during dry seasons. Regular panel cleaning maintenance should be scheduled to prevent dust buildup that could reduce efficiency. A cleaning schedule aligned with seasonal patterns—more frequent during dry seasons and after any dust storms—would be advisable.

Installation Recommendations

To maximize solar production in Congonhas, Minas Gerais, several preventative measures should be considered:

• Install panels with the recommended 20-degree tilt facing North
• Implement automated or scheduled cleaning systems to address dust accumulation
• Consider slightly oversizing the solar array to compensate for reduced output during the rainy season
• Use high-efficiency panels that perform well in high-temperature environments, as tropical heat can slightly reduce panel efficiency
• Install lightning protection systems, as tropical regions often experience thunderstorms

With these considerations addressed, Congonhas presents an excellent location for solar PV installations with strong, consistent energy production potential throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

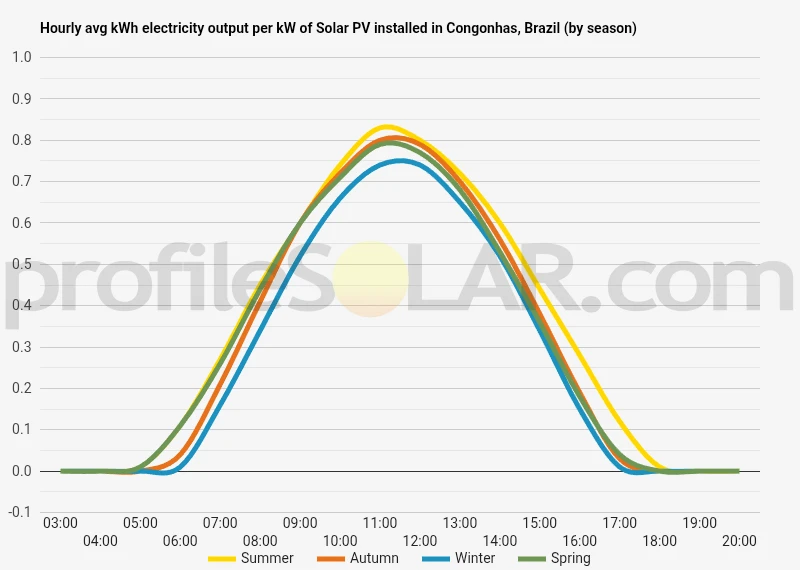

Solar output per kW of installed solar PV by season in Congonhas

Seasonal solar PV output for Latitude: -20.5316, Longitude: -43.8591 (Congonhas, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Congonhas, Brazil

To maximize your solar PV system's energy output in Congonhas, Brazil (Lat/Long -20.5316, -43.8591) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Congonhas, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Congonhas, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	26° North in Autumn	36° North in Winter	14° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Congonhas, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Congonhas, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Congonhas, Brazil

The topography surrounding Congonhas, Brazil is characterized by rolling hills and mountains, situated within the southern portion of the Iron Quadrangle (Quadrilátero Ferrífero), a mineral-rich region in the state of Minas Gerais. The landscape features significant elevation changes, with the city itself nestled at approximately 870 meters above sea level. The terrain is part of the Serra do Espinhaço mountain range system, which creates a varied topographical profile throughout the region. The area exhibits a combination of steep slopes, plateaus, and valleys carved by numerous waterways, including the Paraopeba River basin. This mountainous terrain is typical of the Brazilian Highlands (Planalto Brasileiro), with peaks reaching over 1,200 meters in some surrounding areas. The natural contours have been significantly altered in places by extensive mining operations, as Congonhas sits in one of Brazil's most important mining regions.

Vegetation and Land Cover

The native vegetation around Congonhas represents a transition zone between the Atlantic Forest (Mata Atlântica) and Cerrado biomes. Much of the original forest cover has been modified by human activity, including mining, agriculture, and urban development. The remaining natural vegetation includes patches of semi-deciduous forests on hillsides and gallery forests along waterways. The combination of mining activities, particularly iron ore extraction, has created distinctive landscape features, including exposed soil areas, tailings ponds, and terraced hillsides. These anthropogenic modifications have created some relatively flat, cleared areas that contrast with the naturally undulating terrain.

Potential Solar PV Development Areas

For large-scale solar photovoltaic development near Congonhas, several topographical factors must be considered. The most suitable areas would be: The plateaus and gentler slopes to the west and southwest of Congonhas offer more favorable conditions for solar installations. These areas provide relatively flat terrain with adequate space for arrays of solar panels. The western region, extending toward Ouro Branco, includes some plateaus with reduced slope angles that would minimize the earthwork required for solar farm construction. Former mining areas that have been properly remediated could provide excellent opportunities for solar development. These sites often feature cleared, relatively flat terrain with existing access roads and proximity to power infrastructure. The repurposing of these brownfield sites for renewable energy would provide environmental benefits beyond clean energy production. The northern sections of the municipality, where the terrain begins to flatten somewhat compared to the more mountainous southern portions, could accommodate larger installations. These areas balance accessibility with suitable topography for solar array placement. Areas to avoid would include the steeper eastern slopes of the Serra do Espinhaço, where the combination of challenging terrain, increased cloud cover due to orographic effects, and denser remaining forest cover would make solar development both technically challenging and environmentally problematic. The varied topography does present some challenges for utility-scale solar development, as large, perfectly flat sites are limited in this mountainous region. However, modern solar mounting systems can accommodate moderate slopes, and the region's elevation provides advantages in terms of cooler temperatures (which benefit PV efficiency) and potentially reduced atmospheric attenuation of solar radiation.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
