Conselheiro Mairinck, Paraná, Brazil, located in the Southern Sub Tropics, presents a moderately favorable location for year-round solar photovoltaic energy generation. The seasonal variation in solar output shows distinct patterns that reflect the region's subtropical climate characteristics.

Seasonal Solar Performance

The location demonstrates strong seasonal variation in solar energy production. Summer delivers the highest output at 6.98 kWh per day per kW of installed capacity, making it the peak generation period. Spring follows as the second-best season with 6.10 kWh per day per kW, providing excellent solar conditions during the transition period. Autumn shows a noticeable decline to 5.38 kWh per day per kW, while winter represents the lowest production period at 4.43 kWh per day per kW. Despite this winter reduction, the output remains at a reasonable level that can contribute meaningfully to energy needs throughout the year.

Optimal Panel Configuration

For maximum year-round solar production at this location, fixed solar panels should be installed at a tilt angle of 21 degrees facing North. This angle has been calculated to optimize total annual energy output by accounting for the sun's varying position throughout the year and weighting the angles based on actual solar irradiance data.

Environmental and Weather Considerations

Several local factors could potentially impact solar energy production at Conselheiro Mairinck and should be considered during installation planning.

Humidity and Moisture

The subtropical climate brings elevated humidity levels, particularly during summer months when solar production is at its peak. High humidity can lead to increased condensation on panel surfaces and potential corrosion of electrical components over time. Installing panels with adequate ventilation spacing beneath them helps promote air circulation and reduces moisture buildup. Using marine-grade electrical components and ensuring proper sealing of all connections can prevent humidity-related degradation.

Rainfall Patterns

Subtropical regions typically experience distinct wet and dry seasons, with heavy rainfall periods that can temporarily reduce solar output due to cloud cover. While rain naturally cleans panels, excessive moisture can create issues. Installing panels with proper drainage angles and ensuring mounting systems can handle increased water runoff helps maintain system integrity during heavy rain periods.

Temperature Fluctuations

The subtropical location experiences significant temperature variations between seasons, which can affect panel efficiency and longevity. Solar panels actually perform better in cooler temperatures, so the moderate winter temperatures can partially offset the reduced daylight hours. Ensuring adequate spacing between panels and mounting surfaces allows for thermal expansion and improves cooling efficiency during hot summer periods.

Vegetation Growth

The favorable growing conditions in subtropical climates can lead to rapid vegetation growth that may shade solar installations. Regular vegetation management around solar arrays is essential, particularly during the growing season. Planning installations with sufficient clearance from existing trees and considering future growth patterns helps maintain optimal sun exposure.

Preventative Installation Measures

Several installation strategies can help maximize energy production despite these environmental challenges:

• Use corrosion-resistant mounting hardware and electrical components rated for high-humidity environments
• Install panels with adequate ground clearance to promote airflow and reduce moisture retention
• Implement proper grounding and surge protection systems to handle electrical storms common in subtropical regions
• Plan for regular cleaning and maintenance schedules to address dust and organic matter accumulation
• Consider microinverters or power optimizers to minimize impact from partial shading issues

Overall, while Conselheiro Mairinck faces some typical subtropical environmental challenges, proper installation techniques and regular maintenance can effectively mitigate these factors and ensure strong solar energy production throughout the year.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

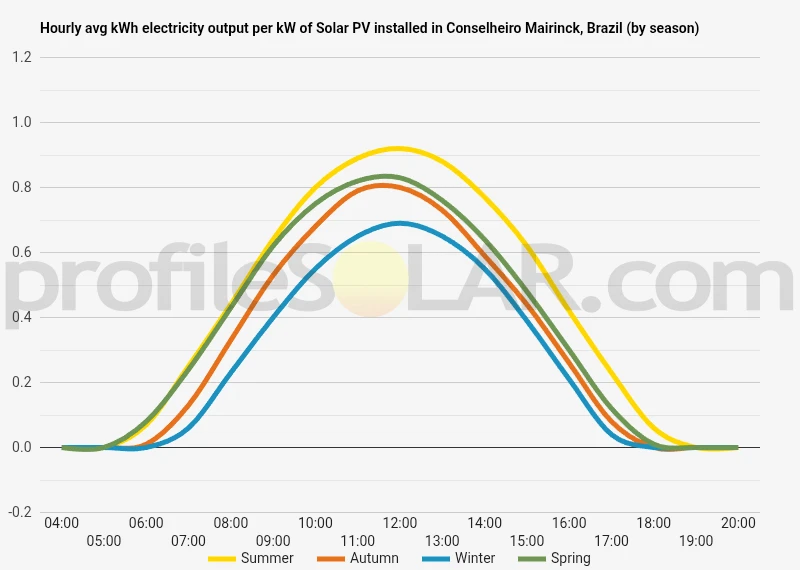

Solar output per kW of installed solar PV by season in Conselheiro Mairinck

Seasonal solar PV output for Latitude: -23.5888, Longitude: -50.1174 (Conselheiro Mairinck, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Conselheiro Mairinck, Brazil

To maximize your solar PV system's energy output in Conselheiro Mairinck, Brazil (Lat/Long -23.5888, -50.1174) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Conselheiro Mairinck, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Conselheiro Mairinck, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
8° North in Summer	29° North in Autumn	39° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Conselheiro Mairinck, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Conselheiro Mairinck, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Conselheiro Mairinck, Brazil

Topographical Features of Conselheiro Mairinck

Conselheiro Mairinck is situated in the state of Paraná in southern Brazil, positioned within a region characterized by gently rolling hills and relatively modest elevation changes. The terrain around this municipality reflects the broader geological patterns of the Paraná Plateau, featuring undulating landscapes that transition gradually between higher and lower elevations without dramatic mountainous features or deep valleys.

The topography in this area consists primarily of sedimentary rock formations that have been shaped over millennia by weathering and erosion processes. These geological influences have created a landscape of moderate relief, with hills that rise and fall in gentle curves rather than steep inclines. The elevation variations typically range from approximately 400 to 700 meters above sea level, creating a terrain that is neither completely flat nor excessively mountainous.

Agricultural activities have significantly influenced the current appearance of the landscape around Conselheiro Mairinck. Much of the natural vegetation has been cleared over decades to make way for farming operations, particularly soybean and corn cultivation. This agricultural transformation has resulted in large expanses of relatively open land with minimal tree coverage, creating clear sight lines across the rolling countryside.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Conselheiro Mairinck would be the elevated plateau areas and gentle south-facing slopes that dominate the regional landscape. These areas offer several advantages for solar development, including relatively stable ground conditions due to the underlying sedimentary rock formations and minimal risk of flooding or water accumulation.

The agricultural plains that extend across much of the surrounding territory present excellent opportunities for solar farm development. These areas typically feature level to gently sloping terrain that requires minimal grading or earthwork preparation. The existing cleared agricultural land eliminates the need for extensive vegetation removal, reducing both development costs and environmental impact concerns.

Areas with slight southern exposure would be particularly advantageous, as the gentle slopes can be oriented to maximize solar collection throughout the day. The rolling nature of the terrain also provides natural drainage, reducing concerns about water pooling or erosion that might affect solar panel installations over time.

The relatively open landscape with minimal tree coverage means that shading issues would be less problematic compared to more forested regions. This characteristic, combined with the stable geological conditions, makes the area well-suited for the large-scale infrastructure required for commercial solar operations, including access roads, electrical transmission connections, and maintenance facilities.

Former agricultural areas that are no longer in active cultivation would represent ideal candidates for solar development, as they combine the benefits of cleared, level land with reduced competition for productive farming space. The existing rural road network in the region would also facilitate construction access and ongoing maintenance operations for solar installations.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
