Conselheiro Pena, Minas Gerais, Brazil represents a highly favorable location for year-round solar photovoltaic energy generation. Located in the tropics at coordinates -19.1703, -41.4568, this region benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than dramatic changes in solar availability.

Solar Energy Production Performance

The solar energy output data for Conselheiro Pena demonstrates strong year-round performance. Summer delivers the highest production at 6.11 kWh per day per kW of installed solar capacity, making it the optimal season for solar generation. Spring follows as the second-best performing season with 5.19 kWh/day per kW, while autumn produces 5.57 kWh/day per kW. Even during winter, the lowest-producing season, the location still generates a respectable 4.44 kWh/day per kW. This consistent performance across all seasons makes Conselheiro Pena an excellent location for solar installations. The difference between the best and worst performing seasons is only about 1.67 kWh/day per kW, indicating reliable energy production throughout the year.

Optimal Installation Configuration

For fixed panel installations at this location, the ideal tilt angle to maximize total year-round solar production is 18 degrees North. This angle is calculated by analyzing daily solar elevation angles at the latitude, determining optimal panel positioning, and weighting these angles using solar irradiance data while accounting for Earth's elliptical orbit.

Environmental and Weather Challenges

Several local factors could potentially impact solar production efficiency in Conselheiro Pena:

• Tropical rainfall and humidity: The region's wet season brings heavy precipitation and high humidity levels that can reduce solar panel efficiency and create maintenance challenges
• Dust and particulate accumulation: During dry periods, dust buildup on panels can significantly reduce light transmission and energy output
• Vegetation growth: The tropical climate promotes rapid plant growth that could create shading issues if not properly managed
• Extreme weather events: Potential for severe storms, hail, or strong winds that could damage solar installations

Preventative Measures for Optimal Performance

To maximize energy production and system longevity in this tropical environment, several preventative measures should be implemented:

• Regular cleaning schedules: Establish frequent panel cleaning routines, particularly during dry seasons when dust accumulation is highest
• Proper drainage systems: Install adequate drainage around solar arrays to prevent water pooling and potential electrical issues during heavy rains
• Vegetation management: Maintain clear zones around installations and implement regular trimming schedules to prevent shading from growing plants
• Robust mounting systems: Use reinforced mounting hardware designed to withstand tropical storm conditions and high winds
• Anti-corrosion treatments: Apply protective coatings to metal components to prevent degradation from high humidity and moisture exposure

Despite these challenges, the consistently high solar output throughout the year makes Conselheiro Pena an excellent location for solar energy projects. With proper installation techniques and maintenance protocols, solar installations can achieve optimal performance while minimizing the impact of local environmental factors.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

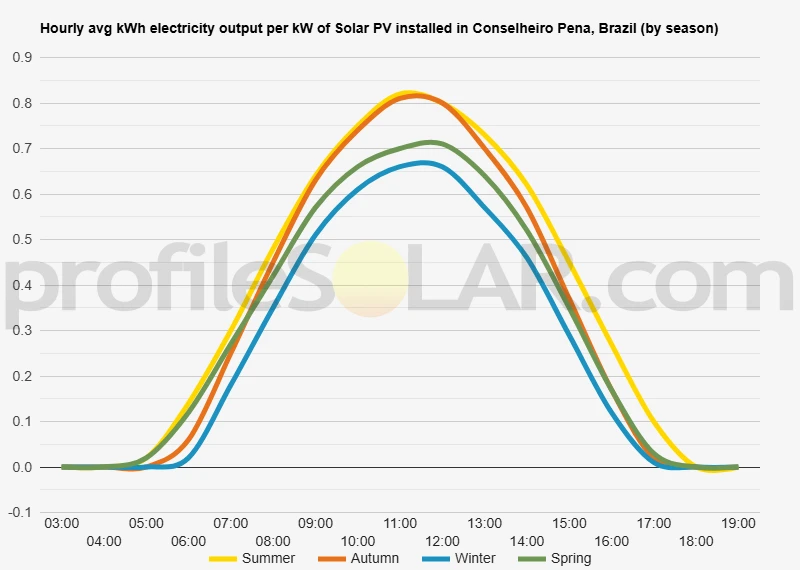

Solar output per kW of installed solar PV by season in Conselheiro Pena

Seasonal solar PV output for Latitude: -19.1703, Longitude: -41.4568 (Conselheiro Pena, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 18° North in Conselheiro Pena, Brazil

To maximize your solar PV system's energy output in Conselheiro Pena, Brazil (Lat/Long -19.1703, -41.4568) throughout the year, you should tilt your panels at an angle of 18° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Conselheiro Pena, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Conselheiro Pena, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 18° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
3° North in Summer	25° North in Autumn	35° North in Winter	13° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Conselheiro Pena, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Conselheiro Pena, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Conselheiro Pena, Brazil

Topographical Features of Conselheiro Pena Region

Conselheiro Pena sits within the eastern portion of Minas Gerais state, positioned in a transitional landscape between the Brazilian Highlands and the coastal lowlands. The municipality occupies terrain characterized by rolling hills and gentle valleys, with elevations typically ranging from 200 to 600 meters above sea level. This undulating topography is part of the broader Doce River valley system, which has carved distinctive drainage patterns through the crystalline rocks of the region. The landscape around Conselheiro Pena features a mix of rounded hilltops and moderately steep slopes, interspersed with flatter valley bottoms where agricultural activities concentrate. The geological foundation consists primarily of Precambrian metamorphic and igneous rocks, which have weathered over millions of years to create the characteristic red and yellow soils common throughout this part of Minas Gerais. These weathered surfaces often display good drainage properties due to the underlying bedrock structure.

Terrain Suitability for Large-Scale Solar Development

The most promising areas for extensive solar photovoltaic installations lie within the broader valley floors and gentle hillside terraces that extend northeast and southwest of Conselheiro Pena. These locations offer the optimal combination of relatively flat terrain, good accessibility, and minimal environmental constraints. The valley systems provide natural corridors where large arrays could be constructed with reduced earthwork requirements and easier maintenance access. Areas with slopes less than 10 degrees present the most favorable conditions for utility-scale solar development. Such terrain can be found extensively in the agricultural zones surrounding the municipality, particularly in areas that have been previously cleared for pasture or crop production. The existing road network serving these agricultural areas would facilitate construction logistics and ongoing operations. The elevated plateaus and mesa-like formations scattered throughout the region also merit consideration for solar development. While these areas may require more substantial grading work, they often provide excellent exposure conditions and are typically removed from prime agricultural lands. The stable geological conditions of these elevated areas reduce concerns about foundation requirements for mounting systems.

Geographic Advantages and Considerations

The regional topography offers several advantages for solar energy development beyond simple terrain suitability. The elevation variations create natural windflow patterns that can help with panel cooling, while the well-drained soils minimize concerns about flooding or waterlogging during the rainy season. The crystalline bedrock underlying much of the area provides solid foundations for large installations. Areas to the east and southeast of Conselheiro Pena, where the terrain gradually descends toward the Doce River valley, present particularly attractive opportunities. These zones combine gentler slopes with good transportation access via existing highways. The transitional landscape between the higher elevations and the river valley creates extensive areas of moderate relief that could accommodate large solar arrays without significant terrain modification. The western approaches to the municipality, where the land begins rising toward the higher elevations of the Minas Gerais interior, offer additional suitable locations. While these areas may have slightly more pronounced topographical variation, they often feature broad ridgetops and wide valley systems that could support substantial solar installations while maintaining appropriate setbacks from sensitive environmental areas.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
