Solar Energy Potential in Constantina, Rio Grande do Sul, Brazil

Constantina, Rio Grande do Sul, Brazil, located in the Southern Sub Tropics, offers varying potential for solar PV energy generation throughout the year. The location experiences significant seasonal differences in solar electricity production, with the highest output during summer months and notably reduced generation during winter. During summer, solar panels at this location can generate an impressive 7.33kWh per day for each kilowatt of installed capacity. This drops to 5.07kWh/day during autumn, reaches its lowest point at 3.74kWh/day in winter, and recovers to 6.01kWh/day during spring months.

Seasonal Variations and Implications

The substantial difference between summer and winter production (nearly double) indicates that while Constantina has excellent solar potential during warmer months, winter presents challenges for consistent year-round energy supply. This seasonal pattern is typical for locations in the Southern Sub Tropics, where the sun's path varies significantly across seasons. For those considering solar installation in Constantina, Rio Grande do Sul, it's worth noting that approximately 50% more panels would be needed to maintain the same energy output in winter as compared to summer. Alternatively, supplementary energy sources might be necessary during the winter months if consistent energy supply is required.

Optimal Panel Installation

For a fixed panel installation at this location, the ideal angle to tilt panels to maximize total year-round production is 24 degrees facing North. This optimal tilt angle accounts for Constantina's specific latitude, the earth's elliptical orbit, and seasonal variations in solar elevation.

Environmental Considerations

Several environmental factors could potentially impact solar production in Constantina:

• Rainfall and humidity: The region can experience significant precipitation, particularly during certain seasons, which may temporarily reduce solar output and require regular panel cleaning.
• Agricultural dust: As Constantina is situated in an agricultural region, dust from farming activities can accumulate on panels, reducing efficiency if not regularly maintained.
• Occasional hail storms: The region may experience hail events that could potentially damage panels if they aren't sufficiently robust.

Preventative Measures

To maximize solar energy production in Constantina despite these challenges, consider: 1. Installing high-quality panels with hail resistance certification 2. Implementing an automated or regular cleaning schedule to address dust and pollen accumulation 3. Using micro-inverters or power optimizers to minimize the impact of partial shading 4. Considering a slight adjustment to the ideal tilt angle if winter production is particularly important for your energy needs 5. Installing a slightly larger system to compensate for the significant winter production drop With proper installation and maintenance, Constantina's location can provide reliable solar energy, particularly from spring through autumn, though winter production will be notably lower.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

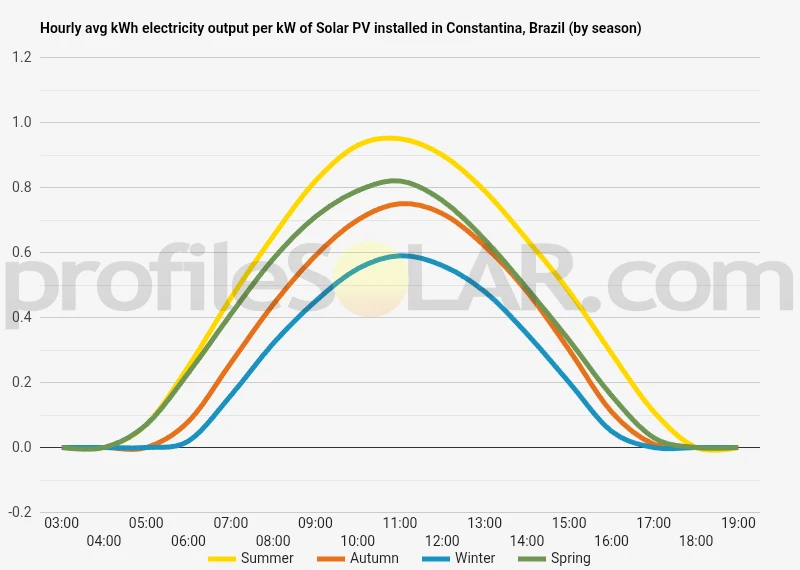

Solar output per kW of installed solar PV by season in Constantina

Seasonal solar PV output for Latitude: -27.7024, Longitude: -53.0029 (Constantina, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Constantina, Brazil

To maximize your solar PV system's energy output in Constantina, Brazil (Lat/Long -27.7024, -53.0029) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Constantina, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Constantina, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° North in Summer	33° North in Autumn	43° North in Winter	20° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Constantina, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Constantina, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Constantina, Brazil

The landscape around Constantina, Brazil, is characterized by gently rolling hills and plateaus, forming part of the southern Brazilian highlands. This region sits within the Atlantic Forest biome, though much of the original forest has been cleared for agricultural purposes. The terrain generally slopes from east to west, with elevations ranging from approximately 400 to 600 meters above sea level across the area. Constantina itself is situated in a slightly elevated area compared to some of its surroundings, with modest hills creating a varied topography throughout the municipality. The region features a network of small rivers and streams that have carved shallow valleys between the rolling hills, creating a patchwork landscape of ridges and depressions.

Soil and Vegetation

The soils in this region are predominantly reddish clay-based, typical of the subtropical climate zone. These soils have good drainage properties on the hillsides but can retain moisture in the lower-lying areas. Natural vegetation consists of mixed subtropical forests and grasslands, though much has been converted to agricultural use, primarily for crops like soybeans, corn, and wheat, as well as cattle pasture.

Climate Influence on Topography

The subtropical climate has played a significant role in shaping the landscape, with sufficient rainfall to support lush vegetation but also creating erosion patterns that have smoothed many of the region's features over time. Seasonal variations in precipitation influence the appearance of the landscape throughout the year.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic installations, the most suitable areas near Constantina would be the gently sloping hillsides with southern to northern exposures. These locations offer several advantages: The elevated plateaus to the east and northeast of Constantina present particularly favorable conditions, as they experience less shadowing effect from surrounding terrain. These areas typically have good drainage, reducing flood risk to installation infrastructure. The cleared agricultural lands that feature slight slopes (between 2-10 degrees) provide ideal conditions for solar arrays, allowing for natural airflow cooling of panels while minimizing the earthworks required for installation. These moderately sloped areas also experience less soil erosion than steeper terrain, ensuring greater stability for ground-mounted systems. Areas to avoid would include the deeper valleys and watercourse corridors, which may experience morning fog or mist that could reduce early day generation potential. Additionally, the limited low-lying floodplains along river courses would present unnecessary flood risks to electrical infrastructure. The northwestern sector of the municipality, where the terrain levels out somewhat, offers expansive areas that could accommodate large, contiguous solar installations without significant topographical barriers or the need for extensive grading work.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
