Solar Energy Potential in Contagem, Minas Gerais, Brazil

Contagem, Minas Gerais, Brazil, located at latitude -19.8828 and longitude -44.0801, offers favorable conditions for solar energy generation throughout the year. This location in the tropics benefits from relatively consistent sunlight patterns, with seasons defined more by rainfall than temperature variations. The solar energy production at this location shows modest seasonal fluctuation. During summer months, solar panels can generate approximately 6.45 kWh per day for each kW of installed capacity, representing the peak production period. Autumn yields slightly less at 5.97 kWh/day, while winter sees the lowest output at 5.38 kWh/day. Production rebounds in spring to 6.19 kWh/day per kW installed.

Seasonal Variations and Optimal Generation Periods

The data reveals that Contagem experiences its highest solar potential during summer, followed closely by spring. The difference between the highest producing season (summer) and the lowest (winter) is only about 1.07 kWh/day per kW installed, indicating relatively stable year-round production compared to locations at higher latitudes. For maximizing solar energy capture in Contagem, Minas Gerais, fixed solar panels should be installed at a tilt angle of 19 degrees facing North. This specific angle has been calculated to optimize year-round energy production based on the location's position in the Southern Hemisphere.

Environmental and Weather Considerations

Several environmental factors could potentially impact solar production in Contagem:

• Seasonal rainfall patterns, particularly during the wet season, may reduce solar output due to cloud cover
• Dust accumulation from the urban environment of Contagem can gradually decrease panel efficiency
• Occasional haze from industrial activities in the region might diminish solar radiation reaching panels

Preventative Measures for Optimal Performance

To mitigate these challenges and ensure maximum energy production, several preventative measures can be implemented: Installing an automated cleaning system or establishing a regular manual cleaning schedule will prevent dust accumulation. This is particularly important during the dry season when dust levels are typically higher. Selecting high-quality panels with anti-reflective coatings can improve performance during periods of diffuse light caused by cloud cover or haze. Additionally, installing a monitoring system will help identify any unexpected drops in performance that might indicate maintenance needs. For larger installations, considering a tracking system rather than fixed panels could increase energy yield, though this needs to be weighed against the additional cost and maintenance requirements.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

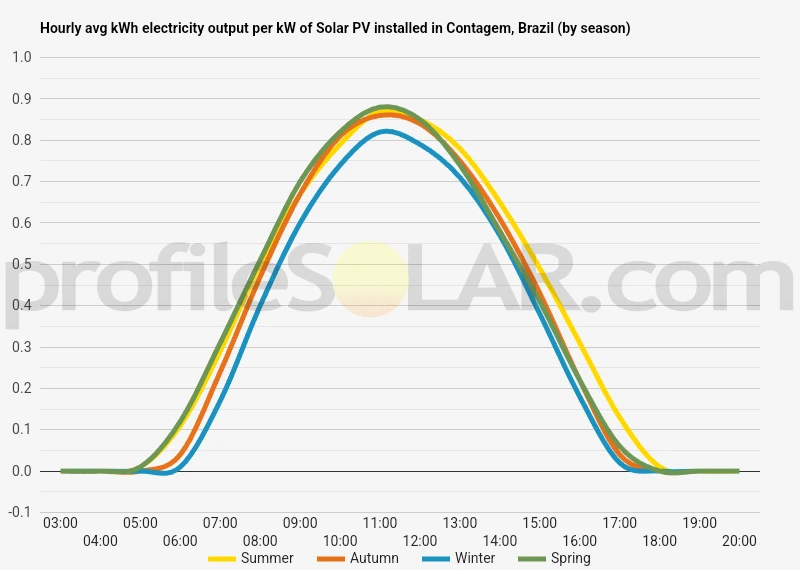

Solar output per kW of installed solar PV by season in Contagem

Seasonal solar PV output for Latitude: -19.8828, Longitude: -44.0801 (Contagem, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° North in Contagem, Brazil

To maximize your solar PV system's energy output in Contagem, Brazil (Lat/Long -19.8828, -44.0801) throughout the year, you should tilt your panels at an angle of 19° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Contagem, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Contagem, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
4° North in Summer	26° North in Autumn	35° North in Winter	14° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Contagem, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Contagem, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Contagem, Brazil

Contagem, situated in the state of Minas Gerais in southeastern Brazil, possesses a varied topographical profile characteristic of Brazil's highland regions. The city itself rests at an elevation of approximately 900 meters above sea level and forms part of the broader metropolitan area of Belo Horizonte, the state capital. The terrain around Contagem features rolling hills and plateaus, with moderate variations in elevation throughout the region. This area belongs to the Brazilian Highlands (Planalto Brasileiro), specifically within the southern portion of the Serra do Espinhaço mountain range. The landscape presents a combination of undulating terrain interspersed with valleys created by river systems, notably the Paraopeba River basin to the west.

Surrounding Topographical Features

To the east of Contagem, the terrain becomes more pronounced as it transitions toward the Serra do Curral, a mountain range that serves as a natural boundary between Contagem and Belo Horizonte. This range presents steeper slopes and higher elevations, reaching over 1,300 meters in some sections. The western and southern areas of Contagem exhibit more gradual relief, with open plateaus and gentler hills. These areas generally maintain elevations between 800-950 meters above sea level. The northern regions feature similar rolling topography but with some more pronounced valleys created by water drainage systems. Throughout the region, the original Atlantic Forest vegetation has been substantially altered by urban development and historical agricultural activities, though some patches of secondary forest and savanna-like cerrado vegetation remain in less developed areas.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic installations, the western and southwestern regions surrounding Contagem present the most favorable topographical conditions. These areas offer several advantages: The western plateaus feature more consistent, gradual slopes with fewer steep inclines, making construction and maintenance of large solar arrays more feasible and cost-effective. These relatively flat expanses allow for more uniform solar panel orientation and reduce the engineering challenges associated with varied terrain. The southwestern corridor extending toward Betim and Igarapé contains extended areas of open terrain with good solar exposure and fewer topographical barriers that might cast shadows. The moderate elevation of these areas also contributes to potentially clearer atmospheric conditions. Areas to the north of Contagem, particularly toward Vespasiano and São José da Lapa, also present suitable topography for solar development, with open terrain and moderate slopes. However, proximity to expanding urban zones may create land-use competition in these areas. The eastern regions near the Serra do Curral, while receiving good solar radiation, present more challenging topography for large-scale installations due to steeper gradients and more variable terrain. These areas would likely require more extensive earthwork and present higher installation costs. The southern plateaus extending toward Brumadinho, though somewhat further from Contagem proper, offer expansive areas with favorable topography, good drainage, and minimal shading concerns, potentially making them ideal for larger solar farms if transmission infrastructure is available.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
