Solar Energy Potential in Coronel Fabriciano, Minas Gerais, Brazil

Coronel Fabriciano, Minas Gerais, Brazil, located in the tropical region at latitude -19.4541 and longitude -42.6822, offers promising conditions for solar PV energy generation throughout the year. This location benefits from the consistent sunlight typical of tropical regions, where seasonal changes are more defined by wet and dry periods rather than significant variations in daylight hours. The solar energy production at this location shows favorable output across all seasons, with some natural variation. During summer, panels can generate approximately 5.97 kWh per day for each kilowatt of installed capacity, making this the most productive season. Autumn follows with a solid 5.51 kWh/day, while spring delivers 5.18 kWh/day. Winter shows the lowest production at 4.47 kWh/day, but this figure remains respectable compared to many non-tropical locations. For fixed solar panel installations in Coronel Fabriciano, Minas Gerais, the ideal tilt angle to maximize year-round production is 18 degrees facing North. This specific angle optimizes the capture of solar radiation throughout the year, accounting for the location's position in the Southern Hemisphere.

Environmental Factors and Preventative Measures

Several environmental factors could potentially impact solar production in Coronel Fabriciano:

• Heavy rainfall during the wet season may reduce solar efficiency due to cloud cover and potential panel soiling.
• High temperatures in summer months can slightly reduce panel efficiency, as PV panels typically lose efficiency when operating above optimal temperature ranges.
• Dust accumulation from the region's industrial activities (Coronel Fabriciano is part of the Vale do Aço metropolitan area known for steel production) may affect panel performance if not regularly cleaned.

To mitigate these challenges, several preventative measures can be implemented. Installing panels with self-cleaning technologies or implementing regular maintenance schedules can address dust and rainfall residue issues. Using panels with better high-temperature performance ratings will help maintain efficiency during hot periods. Additionally, incorporating minimal spacing between panels can improve airflow and reduce operating temperatures. A monitoring system that tracks performance can help identify when cleaning or maintenance is needed, especially after heavy rain events or dusty periods. With these measures in place, Coronel Fabriciano remains a highly viable location for solar energy production throughout the year, with particularly strong potential during summer and autumn months.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

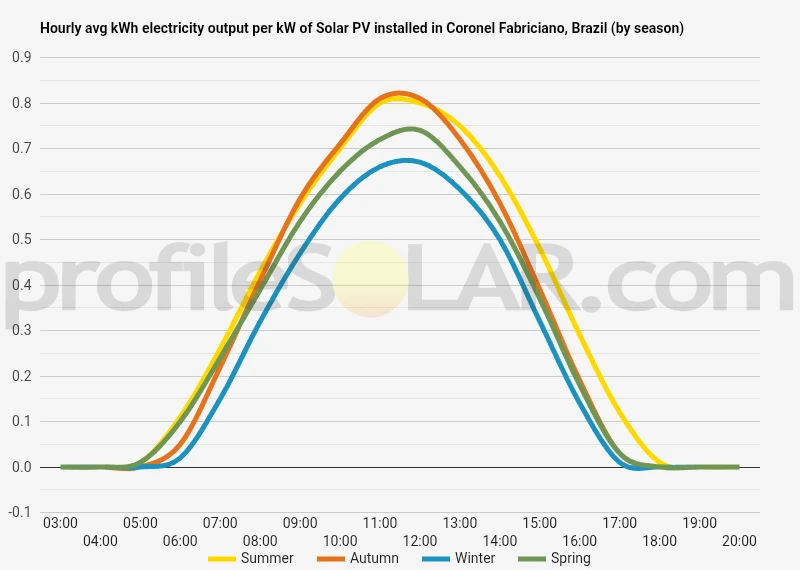

Solar output per kW of installed solar PV by season in Coronel Fabriciano

Seasonal solar PV output for Latitude: -19.4541, Longitude: -42.6822 (Coronel Fabriciano, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 18° North in Coronel Fabriciano, Brazil

To maximize your solar PV system's energy output in Coronel Fabriciano, Brazil (Lat/Long -19.4541, -42.6822) throughout the year, you should tilt your panels at an angle of 18° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Coronel Fabriciano, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Coronel Fabriciano, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 18° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
4° North in Summer	25° North in Autumn	35° North in Winter	13° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Coronel Fabriciano, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Coronel Fabriciano, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Coronel Fabriciano, Brazil

Topography of Coronel Fabriciano

Coronel Fabriciano is situated in the eastern part of Minas Gerais state in Brazil, nestled within the Rio Doce Valley region. The topography of this area is characterized by rolling hills, valleys, and mountains that form part of the Atlantic Forest biome. The city itself sits at an elevation of approximately 280 meters above sea level, with surrounding terrain varying significantly in elevation. The landscape around Coronel Fabriciano features a mix of undulating terrain with notable elevation changes. To the west and northwest, the terrain becomes more mountainous, forming part of the broader Iron Quadrangle region famous for its mineral deposits. These highlands gradually rise to elevations exceeding 800 meters in some places, creating a visually striking backdrop to the urban areas. The Piracicaba River, a tributary of the Rio Doce, cuts through the region and has shaped much of the local topography, creating fertile valleys between the hills. This river system has historically been important for the development of the area, providing water resources but also creating natural divisions in the landscape.

Vegetation and Land Cover

The natural vegetation of the region consists of Atlantic Forest remnants, though much of the original forest has been altered by human activities including urbanization, agriculture, and industrial development. The city is part of the Vale do Aço (Steel Valley) metropolitan area, which has seen significant industrial development over decades. Areas surrounding the urban center transition between developed spaces, secondary forest growth, pastureland, and agricultural plots. This mosaic of land uses creates a complex topographical pattern where flat areas are often already utilized for human activities.

Potential Areas for Solar PV Development

For large-scale solar photovoltaic installations, several topographical factors must be considered. Ideal locations typically feature relatively flat terrain, good solar exposure (minimal shading from mountains), and proximity to existing infrastructure. The southeastern and eastern outskirts of Coronel Fabriciano offer promising conditions for solar development. These areas feature more gentle slopes and plateaus that receive consistent solar radiation throughout the year. The slightly elevated positions of these locations also benefit from fewer obstructions that might cast shadows. The rural areas extending toward Ipatinga and Timóteo, where the terrain flattens somewhat compared to the more mountainous western regions, present viable options for large-scale installations. These locations offer a balance between suitable topography and accessibility to the existing electrical grid infrastructure of the Steel Valley region. Areas to avoid would include the steeper western slopes and densely vegetated hillsides, where installation would be technically challenging and environmentally disruptive. Similarly, the immediate floodplains of the Piracicaba River would pose flooding risks to solar infrastructure.

Topographical Challenges and Opportunities

The varied topography around Coronel Fabriciano presents both challenges and opportunities for solar development. The hilly terrain means that careful site selection is essential to maximize solar exposure and minimize construction complexities. However, these same elevation changes can sometimes be advantageous, as slightly elevated positions can reduce morning fog effects that might temporarily diminish solar efficiency in valley locations. The region's history of industrial development means that some previously disturbed lands might be repurposed for solar energy production, creating an environmentally positive reuse of lands that have already experienced human modification. Former mining areas or underutilized agricultural lands on gentler slopes could be particularly suitable for this purpose. In conclusion, while the topography around Coronel Fabriciano is predominantly characterized by hills and valleys that can complicate large-scale solar development, strategic areas exist—particularly to the southeast and east—where the combination of gentler slopes, good solar exposure, and proximity to infrastructure create favorable conditions for solar PV installations.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
