Coronel Freitas, Santa Catarina, Brazil presents a moderately favorable location for year-round solar energy generation, though with notable seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this Southern Sub Tropics location shows significant fluctuation throughout the year. Summer delivers the strongest performance at 7.02 kWh per day per kW of installed capacity, making it the optimal season for solar generation. Spring follows as the second-best period with 6.07 kWh per day per kW, while autumn drops to 5.23 kWh per day per kW. Winter presents the most challenging conditions for solar generation, producing only 3.94 kWh per day per kW of installed capacity. This represents a substantial 44% decrease compared to summer output, which property owners should factor into their energy planning and potential battery storage needs.

Optimal Installation Configuration

For maximum year-round energy production at Coronel Freitas, Santa Catarina, solar panels should be installed at a fixed tilt angle of 24 degrees facing North. This angle has been calculated to optimize total annual solar output by accounting for the sun's varying elevation throughout the year and weighting these angles against actual solar irradiance data.

Local Environmental Challenges

Several environmental and weather factors in the Coronel Freitas region could potentially impact solar panel performance:

• High humidity levels typical of subtropical climates can reduce panel efficiency and promote faster degradation of electrical components
• Frequent rainfall during certain seasons may limit solar generation and create challenges with water drainage around panel installations
• Strong seasonal storms common to southern Brazil can pose risks to panel mounting systems and electrical connections
• Agricultural dust from surrounding farming activities may accumulate on panel surfaces, reducing light transmission

Preventative Installation Measures

To maximize solar energy production despite these challenges, several installation strategies prove beneficial. Proper drainage systems around panel arrays prevent water accumulation that could damage electrical components or create safety hazards. Using corrosion-resistant mounting hardware and electrical enclosures rated for high-humidity environments extends system lifespan significantly. Installing panels with adequate spacing allows for better air circulation, reducing moisture buildup and helping maintain optimal operating temperatures. Regular cleaning schedules become particularly important in this agricultural region to remove dust and debris that accumulate on panel surfaces. Storm-resistant mounting systems designed to withstand high winds provide crucial protection during severe weather events. Additionally, installing micro-inverters or power optimizers rather than string inverters can minimize production losses when individual panels are shaded or soiled, maintaining better overall system performance throughout varying seasonal conditions.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

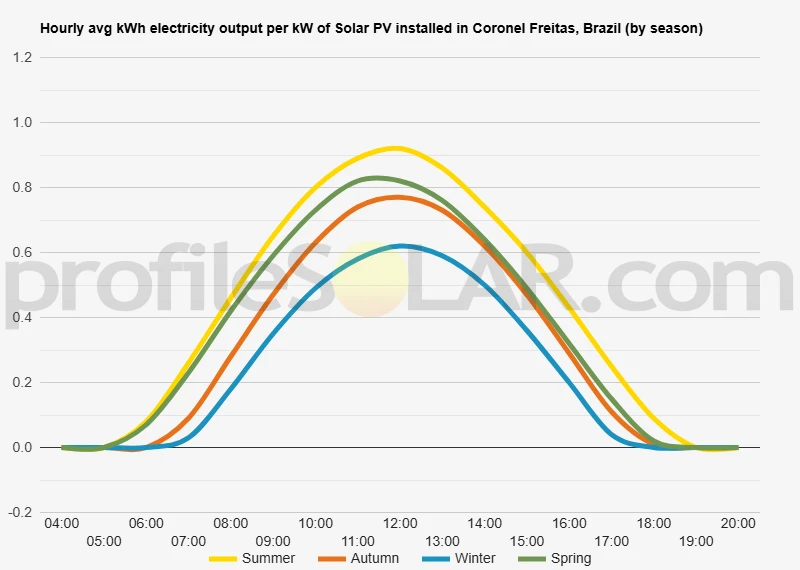

Solar output per kW of installed solar PV by season in Coronel Freitas

Seasonal solar PV output for Latitude: -26.8917, Longitude: -52.7612 (Coronel Freitas, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Coronel Freitas, Brazil

To maximize your solar PV system's energy output in Coronel Freitas, Brazil (Lat/Long -26.8917, -52.7612) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Coronel Freitas, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Coronel Freitas, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° North in Summer	32° North in Autumn	42° North in Winter	20° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Coronel Freitas, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Coronel Freitas, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Coronel Freitas, Brazil

Topographical Features of Coronel Freitas Region

The area surrounding Coronel Freitas in Santa Catarina state sits within the Brazilian Highlands, characterized by gently rolling hills and undulating terrain typical of the southern Brazilian plateau. This region forms part of the broader Paraná Plateau, where elevations generally range from 400 to 800 meters above sea level. The landscape consists of moderate slopes interspersed with flatter valley areas, creating a varied topographical profile that includes both elevated ridgelines and lower-lying agricultural zones. The terrain in this part of Santa Catarina displays the classic features of an eroded plateau, with rounded hilltops and gradual slope transitions rather than steep escarpments or dramatic elevation changes. River valleys cut through the landscape, creating natural drainage patterns that have shaped the local topography over geological time. These waterways, including tributaries of the Uruguay River system, have carved out broader valleys that provide some of the flatter terrain in the region.

Soil and Land Use Characteristics

The underlying geology consists primarily of sedimentary rocks overlain by fertile soils that have made this region attractive for agriculture. Much of the surrounding landscape has been converted to farmland, with extensive areas dedicated to soybean cultivation, corn production, and livestock grazing. This agricultural development has resulted in relatively open terrain with minimal forest cover compared to other parts of southern Brazil. The combination of cleared agricultural land and gentle topography creates favorable conditions for large-scale development projects. The soil composition, while excellent for farming, also provides stable foundations for infrastructure development. The region experiences a subtropical climate with distinct wet and dry seasons, though the rolling terrain provides good natural drainage during periods of heavy rainfall.

Optimal Areas for Solar Development

The most suitable locations for large-scale solar photovoltaic installations would be found on the broader hilltops and ridge areas that offer relatively flat or gently sloping terrain. These elevated positions provide several advantages, including reduced risk of flooding, good natural drainage, and typically fewer competing land uses compared to the more fertile valley bottoms that remain in agricultural production. Areas with south-facing slopes would be particularly advantageous in this southern hemisphere location, as they receive optimal solar exposure throughout the day. The moderate elevation changes mean that large installations could be designed to follow the natural contours of the land, minimizing the need for extensive grading or earthwork while maximizing the available installation area. The existing network of rural roads and agricultural infrastructure provides a foundation for accessing potential solar development sites. Many areas that are currently used for cattle grazing on the hillsides could potentially be repurposed for solar installations, as these locations often feature the gentler slopes and open terrain that are ideal for photovoltaic arrays. Valley areas, while flatter, may be less suitable due to their continued importance for crop production and their potential for seasonal flooding during heavy rainfall periods. The higher elevations also tend to have better wind circulation, which can help with the cooling of solar panels and improved performance during warmer periods.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
