Solar Energy Potential in Cotia, Brazil

Cotia, Brazil, located in the Southern Sub Tropics, presents a favorable location for solar PV energy generation throughout the year. The seasonal electricity output shows good potential across all four seasons, with some natural variation following the sun's annual cycle. Summer in Cotia offers the highest solar energy production at 6.06kWh per day for each kilowatt of installed capacity. This makes December through February the prime months for solar generation. Spring follows as the second most productive season with 5.33kWh/day, while autumn provides a solid 5.06kWh/day per installed kilowatt. Winter shows the lowest production at 4.16kWh/day, but this figure remains quite respectable compared to many other locations worldwide. The relatively modest seasonal variation indicates that Cotia benefits from fairly consistent solar conditions throughout the year, making it suitable for year-round solar energy harvesting.

Optimal Panel Installation

For fixed solar panel installations in Cotia, the ideal tilt angle to maximize year-round energy production is 22 degrees facing North. This specific angle has been calculated to optimize the capture of solar energy throughout the year, accounting for the Earth's elliptical orbit and Cotia's position in the Southern Hemisphere.

Environmental Considerations

Several environmental factors could potentially impact solar production in Cotia:

• Seasonal rain patterns, particularly during the summer wet season, may temporarily reduce solar output on cloudy or rainy days
• Occasional dust and pollen from surrounding vegetation could accumulate on panels and reduce efficiency
• Urban air pollution from nearby São Paulo metropolitan area might create a slight haze effect

To mitigate these factors, solar installations in Cotia would benefit from regular cleaning schedules, especially before and after the rainy season. Installing panels at the recommended 22-degree angle not only optimizes sun exposure but also promotes natural cleaning during rainfall. Additionally, quality inverters with good partial shading management can help maintain production during periods of variable cloud cover. Overall, Cotia represents a highly suitable location for solar PV installations, with consistent year-round production potential and manageable environmental challenges.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

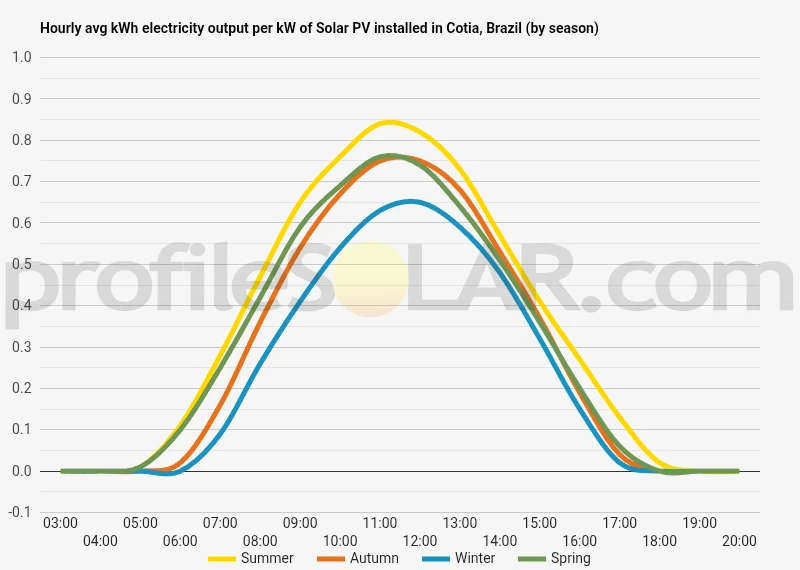

Solar output per kW of installed solar PV by season in Cotia

Seasonal solar PV output for Latitude: -23.6704, Longitude: -46.9472 (Cotia, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 22° North in Cotia, Brazil

To maximize your solar PV system's energy output in Cotia, Brazil (Lat/Long -23.6704, -46.9472) throughout the year, you should tilt your panels at an angle of 22° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cotia, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cotia, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 22° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
8° North in Summer	29° North in Autumn	39° North in Winter	17° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cotia, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cotia, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cotia, Brazil

The topography surrounding Cotia, Brazil features a diverse landscape characterized by rolling hills, plateaus, and valleys typical of the Atlantic Plateau region. Situated approximately 30 kilometers west of São Paulo city, Cotia sits at an elevation of around 750-850 meters above sea level, placing it within the Serra do Mar mountain range's inland extension. The terrain in and around Cotia presents moderate relief with gentle to moderate slopes in many areas. The municipality spans across varying elevations, with some higher hills reaching above 900 meters. This undulating landscape is intersected by numerous small rivers and streams that form part of the Alto Tietê watershed system.

Vegetation and Land Cover

The natural vegetation of the region consists primarily of Atlantic Forest remnants, though much of the original forest has been cleared for urban development, agriculture, and other human activities. The western portions of the municipality maintain more significant forest coverage, particularly in protected areas like the Reserva Florestal do Morro Grande, which features denser vegetation and steeper terrain.

Urban and Rural Distribution

The eastern portions of Cotia are more densely urbanized, with commercial centers and residential areas occupying flatter lands. Moving westward, the landscape transitions to more rural characteristics with scattered settlements, small farms, and larger green spaces. This gradient from urban to rural settings creates varied topographical contexts within the municipality's boundaries.

Potential Areas for Solar PV Development

For large-scale solar photovoltaic installations, several nearby areas present favorable conditions: The northwestern portions of the region offer more extensive flat to gently sloping terrain that would minimize the costs associated with land preparation for solar arrays. These areas typically feature less dense forest coverage and more open spaces previously modified for agricultural use. The plateaus located to the southwest of Cotia present another promising option. These elevated flat areas receive consistent solar radiation and would require minimal grading work for installation of solar infrastructure. Areas along the corridor between Cotia and neighboring São Roque (to the west) contain several zones of cleared land with appropriate slope aspects (north-facing in the Southern Hemisphere) that would maximize solar gain throughout the year.

Topographical Considerations

When evaluating specific sites, developers should note that while the region does not feature extreme topography, the undulating nature of the terrain means that careful site selection is necessary. Ideally, solar installations would be positioned on south-facing slopes (in the Northern Hemisphere) or north-facing slopes (in the Southern Hemisphere) with gradients under 10% to optimize exposure to sunlight while minimizing construction challenges. The presence of the Serra do Mar mountain range to the south creates some orographic effects that influence local climate patterns, including occasional cloud formation that might affect solar radiation in certain seasons. However, the moderate elevation of Cotia helps it maintain relatively favorable conditions for solar energy capture compared to lower-lying areas closer to the coast.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
