Coxilha, Rio Grande do Sul, Brazil, located in the Southern Sub Tropics, presents a moderately favorable location for year-round solar photovoltaic energy generation, though with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this location varies considerably throughout the year. Summer delivers the strongest performance at 7.42 kWh per day per kW of installed solar capacity, making it the ideal season for solar generation. Spring follows as the second-best season with 6.05 kWh per day per kW, while autumn drops to 4.91 kWh per day per kW. Winter presents the most challenging conditions, producing only 3.61 kWh per day per kW of installed capacity. This seasonal pattern means that solar installations at Coxilha will generate more than twice as much electricity during peak summer months compared to winter. The transition seasons of spring and autumn offer moderate production levels, with spring being notably more productive than autumn.

Optimal Panel Configuration

For maximum year-round energy production at this location, solar panels should be installed at a fixed tilt angle of 24 degrees facing North. This angle has been calculated to optimize total annual solar output by accounting for the sun's varying position throughout the year and the Earth's elliptical orbit pattern.

Local Factors Affecting Solar Production

Several environmental and weather factors at Coxilha could potentially impact solar energy production:

• Subtropical weather patterns may bring periods of heavy cloud cover and precipitation, particularly during certain seasons
• High humidity levels common in subtropical climates can reduce solar panel efficiency
• Potential for severe weather events including strong winds and hailstorms
• Dust and debris accumulation on panels from agricultural activities in the region

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation strategies should be considered:

• Install panels with adequate spacing and ventilation to minimize heat buildup and humidity effects
• Use robust mounting systems designed to withstand high winds and severe weather conditions
• Implement regular cleaning schedules to remove dust, debris, and organic matter from panel surfaces
• Consider micro-inverters or power optimizers to minimize the impact of partial shading from clouds or debris
• Install monitoring systems to quickly identify and address any performance issues

Overall, while Coxilha offers reasonable solar potential, the significant seasonal variation and subtropical climate challenges require careful planning and maintenance to achieve optimal long-term performance from solar installations.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

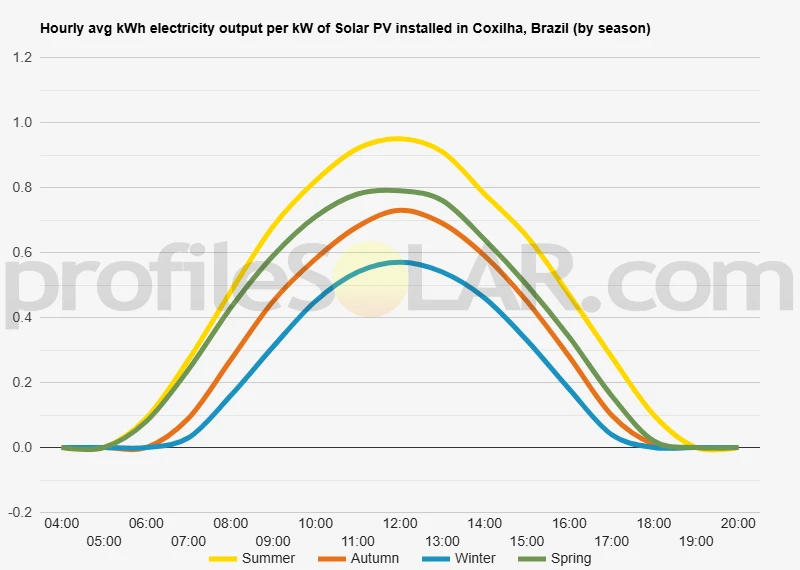

Solar output per kW of installed solar PV by season in Coxilha

Seasonal solar PV output for Latitude: -28.1033, Longitude: -52.3658 (Coxilha, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Coxilha, Brazil

To maximize your solar PV system's energy output in Coxilha, Brazil (Lat/Long -28.1033, -52.3658) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Coxilha, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Coxilha, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° North in Summer	33° North in Autumn	43° North in Winter	21° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Coxilha, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Coxilha, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Coxilha, Brazil

Topographical Features of Coxilha and Surrounding Region

Coxilha sits within the rolling hills and plateaus of Rio Grande do Sul's northern region, characterized by gently undulating terrain that forms part of the broader Southern Brazilian Highlands. The landscape around this municipality features a series of low ridges and shallow valleys, with elevations typically ranging from 400 to 700 meters above sea level. The terrain is predominantly composed of sedimentary rock formations covered by fertile soils that have been shaped by centuries of weathering and erosion.

The topography exhibits a characteristic pattern of long, gentle slopes interspersed with flatter plateau areas. These plateaus, known locally as "coxilhas" - which gives the municipality its name - are elevated ridges that provide natural vantage points across the surrounding countryside. The drainage patterns follow the natural contours, with small streams and tributaries flowing through the valleys between these elevated areas.

The region's geological foundation consists primarily of volcanic and sedimentary rocks from the Paraná Basin, creating a stable substrate that supports the area's agricultural activities. The relatively modest elevation changes and the absence of steep mountainous terrain contribute to a landscape that is both accessible and developable, with good road networks connecting the various communities scattered across the rolling hills.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations around Coxilha would be the flatter plateau areas that crown the local ridges and hills. These elevated positions offer several advantages for solar development, including reduced shading from surrounding terrain features and improved air circulation that can help maintain optimal panel temperatures. The plateau surfaces typically provide larger contiguous areas of relatively level ground, which simplifies installation logistics and reduces the need for extensive site preparation.

South-facing slopes with gentle gradients present another excellent opportunity for solar development in this region. These naturally angled surfaces can optimize panel positioning without requiring complex mounting systems, while the moderate slope angles help with natural drainage and reduce the risk of water accumulation around installations. The consistent southern exposure across these hillsides ensures favorable solar collection conditions throughout the day.

Areas of former agricultural land on the gentler slopes and plateau margins would be particularly well-suited for solar farms. These locations typically have existing road access and electrical infrastructure nearby, which significantly reduces development costs and complexity. The transition zones between the steeper valley sides and the flatter ridge tops often provide the ideal compromise between available space, accessibility, and optimal solar orientation.

The region's stable geological conditions and well-established transportation networks make even the more elevated areas accessible for construction equipment and ongoing maintenance operations. The absence of extreme topographical features means that large-scale solar installations can be designed with standard mounting systems and conventional construction techniques, avoiding the specialized engineering requirements that more challenging terrain might demand.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
