Cristais Paulista, São Paulo, Brazil presents a very good location for year-round solar energy generation. Located in the tropical region at coordinates -20.3674, -47.3694, this area benefits from consistent sunlight throughout most of the year, with seasons characterized more by wet and dry periods rather than dramatic temperature variations.

Solar Energy Production Performance

The solar energy output at this location shows strong performance across all seasons. Summer delivers the highest production at 6.70 kWh per day per kW of installed solar capacity, making it the peak generation period. Spring follows closely with 6.22 kWh per day per kW, while autumn produces 5.80 kWh per day per kW. Even during winter, the lowest production season, the location still generates a respectable 5.23 kWh per day per kW. This seasonal variation of only about 28% between the highest and lowest production periods demonstrates the location's reliability for consistent solar energy generation throughout the year. The summer and spring months represent the ideal times for maximum solar generation at this site.

Optimal Panel Installation

For fixed solar panel installations at Cristais Paulista, São Paulo, the ideal tilt angle is 19 degrees facing North to maximize total year-round energy production. This angle has been calculated using weighted solar elevation data that accounts for daily solar positioning, irradiance levels, and Earth's elliptical orbit patterns specific to this latitude.

Environmental and Weather Factors

Several local factors could potentially impact solar energy production at this location:

• Seasonal rainfall patterns: The tropical wet season can bring extended periods of cloud cover and frequent precipitation, reducing solar irradiance during certain months
• High humidity levels: Tropical climates typically maintain elevated humidity, which can create atmospheric haze and reduce solar panel efficiency
• Dust and debris accumulation: Dry season conditions may lead to dust buildup on panel surfaces, particularly problematic in agricultural regions
• Vegetation growth: The favorable growing conditions in tropical climates mean nearby trees and plants can grow quickly, potentially creating shading issues

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation strategies should be considered: Regular maintenance scheduling becomes crucial, with more frequent cleaning during dry, dusty periods and after heavy rainfall that may leave residue on panels. Installing panels with adequate spacing and ventilation helps combat efficiency losses from high humidity and heat buildup. Strategic site selection should prioritize areas with minimal risk of future vegetation interference, while proper drainage around installation sites prevents water accumulation that could create operational issues. Quality mounting systems designed for tropical conditions will better withstand the combination of high humidity, temperature fluctuations, and intense UV exposure typical of this climate zone. Despite these considerations, Cristais Paulista's consistent solar output across all seasons makes it a highly viable location for solar energy projects with proper planning and maintenance protocols in place.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

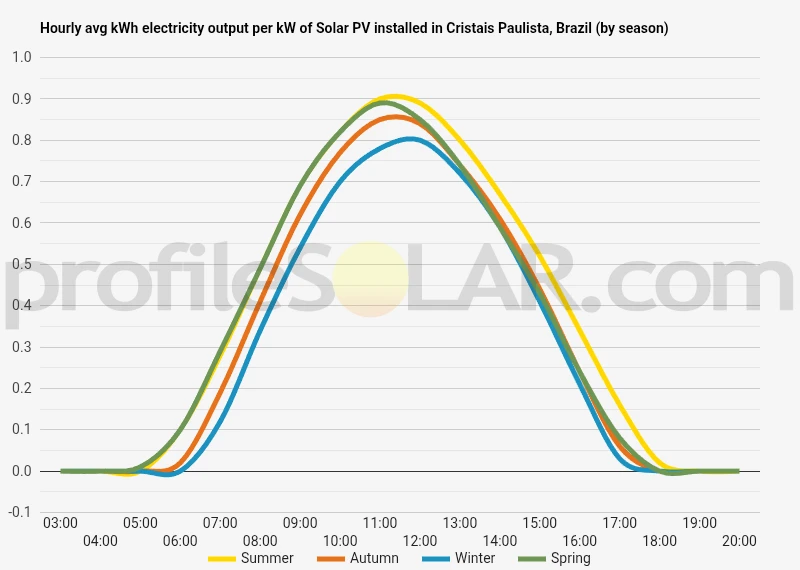

Solar output per kW of installed solar PV by season in Cristais Paulista

Seasonal solar PV output for Latitude: -20.3674, Longitude: -47.3694 (Cristais Paulista, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° North in Cristais Paulista, Brazil

To maximize your solar PV system's energy output in Cristais Paulista, Brazil (Lat/Long -20.3674, -47.3694) throughout the year, you should tilt your panels at an angle of 19° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cristais Paulista, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cristais Paulista, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
4° North in Summer	26° North in Autumn	36° North in Winter	14° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cristais Paulista, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cristais Paulista, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cristais Paulista, Brazil

Topographical Features of Cristais Paulista

Cristais Paulista sits within the northeastern region of São Paulo state, positioned on the Brazilian Highlands plateau at an elevation of approximately 1,000 meters above sea level. The terrain around this municipality is characterized by gently rolling hills and undulating topography typical of the Serra da Mantiqueira foothills. The landscape features a mix of moderate slopes and relatively flat areas, with elevations generally ranging between 900 and 1,200 meters throughout the immediate vicinity.

The region displays the classic characteristics of the Brazilian Shield geological formation, with weathered crystalline rocks underlying much of the area. This creates a stable foundation with good drainage properties. The topography is punctuated by occasional steeper ridges and valleys carved by small tributaries of the Rio Grande watershed system, though these dramatic elevation changes are relatively infrequent compared to the predominant gentle terrain.

Agricultural activities have shaped much of the landscape, creating cleared areas interspersed with patches of Atlantic Forest remnants and cerrado vegetation. The rolling nature of the terrain provides natural windbreaks while maintaining good air circulation, and the elevated position ensures excellent exposure to solar radiation throughout most of the year.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be the broader, flatter sections of the plateau that extend to the north and northeast of Cristais Paulista. These areas offer several kilometers of relatively level terrain with gentle slopes of less than 5 degrees, ideal for large solar arrays. The elevated position provides unobstructed sky access with minimal shading from surrounding topographical features.

The southeastern portions of the municipality also present excellent opportunities, where the terrain opens into wider valleys with consistent southern exposure. These locations benefit from stable ground conditions and sufficient space for utility-scale installations while remaining accessible for construction and maintenance activities.

Areas to the west and southwest, while still viable, feature more pronounced rolling terrain that would require additional grading work. However, the south-facing slopes in these regions could still accommodate solar installations with proper site preparation. The key advantage throughout the entire area is the consistent elevation and the absence of significant geographical obstacles like deep valleys or steep mountain faces that would create problematic shading patterns.

The proximity to existing agricultural infrastructure means that many potential solar sites already have road access and are cleared of dense vegetation, reducing development costs. The stable geological conditions of the Brazilian Shield provide excellent foundation characteristics for mounting systems, while the well-drained soils minimize concerns about water accumulation that could affect equipment performance.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
