Cristalina, Goiás, Brazil offers an excellent location for solar power generation with remarkably consistent output throughout the year. Situated in the tropical region at coordinates -16.7537, -47.4976, this location benefits from stable sunlight patterns that make it highly suitable for solar PV installations.

The seasonal solar production data shows impressive consistency across the year. Summer yields the highest output at 6.32kWh per day for each kilowatt of installed capacity. Spring follows closely at 6.25kWh/day, while autumn and winter maintain strong performance at 5.92kWh/day and 5.89kWh/day respectively. This minimal seasonal variation (less than 7% difference between the highest and lowest producing seasons) is a significant advantage compared to locations at higher latitudes where winter production often drops dramatically.

Optimal Panel Installation

For fixed solar panel installations in Cristalina, Goiás, the ideal tilt angle to maximize year-round energy production is 17 degrees facing North. This specific angle has been calculated to optimize solar capture across all seasons, accounting for the Earth's elliptical orbit and the site's tropical latitude.

Environmental and Weather Considerations

Despite the favorable conditions, several factors could potentially impact solar production in Cristalina:

• The region experiences a pronounced wet season, typically from October to April, which can bring increased cloud cover and occasional heavy rainfall that temporarily reduces solar output.
• Dust accumulation is a concern during the dry season (May to September), when the central Brazilian plateau can experience dry, dusty conditions.
• Potential for occasional hailstorms during the transition between seasons could pose a physical risk to panels.

Preventative Measures

To maximize production and system longevity in this environment, several preventative measures are recommended:

• Install automated cleaning systems or implement regular manual cleaning schedules, particularly during the dry season, to prevent dust accumulation.
• Select panels with high-quality tempered glass that can withstand potential hail impacts.
• Consider slight overprovisioning of system capacity to compensate for reduced output during the rainiest periods.
• Implement proper drainage systems around ground-mounted installations to manage heavy tropical rainfall.
• Use corrosion-resistant mounting hardware suitable for tropical conditions.

With these considerations addressed, Cristalina represents a prime location for solar energy development, offering reliable and substantial energy production throughout the entire year with minimal seasonal fluctuation.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

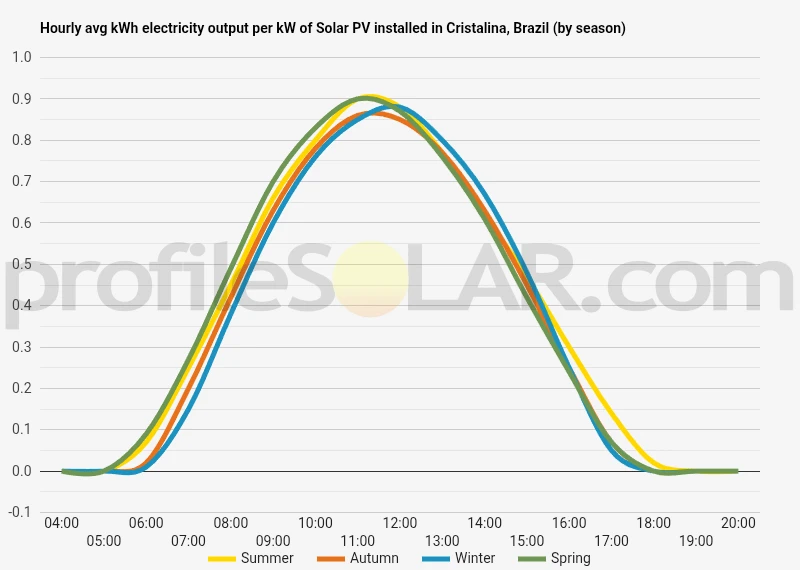

Solar output per kW of installed solar PV by season in Cristalina

Seasonal solar PV output for Latitude: -16.7537, Longitude: -47.4976 (Cristalina, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 17° North in Cristalina, Brazil

To maximize your solar PV system's energy output in Cristalina, Brazil (Lat/Long -16.7537, -47.4976) throughout the year, you should tilt your panels at an angle of 17° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cristalina, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cristalina, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 17° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
1° North in Summer	23° North in Autumn	32° North in Winter	11° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cristalina, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cristalina, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cristalina, Brazil

The terrain surrounding Cristalina, Brazil is characterized by a gently undulating plateau landscape typical of Brazil's Central Highlands region. Located in Goiás state, Cristalina sits at an elevation of approximately 1,189 meters (3,900 feet) above sea level, making it one of the higher elevation municipalities in the region. The topography consists predominantly of rolling hills with modest elevation changes, creating a landscape that alternates between flat expanses and gradual slopes.

Plateau Features and Drainage

Cristalina is situated on part of the Brazilian Central Plateau (Planalto Central), which forms the core of the Brazilian Highlands. This plateau region features weathered surfaces that have developed over millions of years. The area around Cristalina contains numerous natural crystal formations, which gave the municipality its name. These crystalline outcroppings occasionally punctuate the otherwise smooth topography. The region's drainage system includes several small rivers and streams that have carved shallow valleys into the plateau surface. The municipality lies within the watershed dividing line between major Brazilian river basins, including tributaries that eventually feed into the Amazon Basin to the north and the Paraná Basin to the south.

Vegetation and Land Cover

The natural vegetation of the region is primarily cerrado, Brazil's tropical savanna ecosystem, which features a mix of grasslands with scattered trees and shrubs. However, much of the native vegetation has been modified for agricultural use, creating a patchwork landscape of farmland, pastures, and remaining natural vegetation. The open, relatively flat terrain with minimal forest cover means that large continuous areas with minimal shading are readily available throughout much of the region.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic installations, the most suitable areas near Cristalina would be the gently sloping, south-facing hillsides and flat plateau surfaces. These locations offer several advantages: The elevated plateau areas west and southwest of Cristalina present particularly favorable conditions, with expansive flat or gently sloping terrain that receives consistent solar exposure throughout the day. These higher elevation zones typically experience less atmospheric interference and cooler temperatures, which can improve photovoltaic efficiency. Areas with minimal vegetation or those already converted to agricultural use would require less site preparation and environmental mitigation. The agricultural lands surrounding Cristalina, particularly those currently used for seasonal crops, could potentially accommodate dual-use solar installations. The northeastern sections of the municipality also contain suitable topography, though careful site selection would be needed to avoid areas with seasonal flooding or drainage issues during the rainy season.

Topographical Limitations

While the region is generally favorable for solar development, some topographical features present limitations. Areas with steeper slopes, particularly those facing north in the southern hemisphere, would be less ideal for solar installations due to reduced solar exposure. Additionally, low-lying areas near watercourses may be subject to seasonal flooding and should be avoided. Small valleys and depressions scattered throughout the region might experience morning fog during certain seasons, which could temporarily reduce solar efficiency in those specific locations. However, these occurrences are typically limited in duration and extent. The crystalline outcroppings that give the region its name might present installation challenges in some locations, requiring careful site assessment and potentially increased foundation costs, though these features are not widespread enough to significantly limit development opportunities.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.

Feeling generous?

Share this with your friends!

Compare this location to others worldwide for solar PV potential

The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.

However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.
