Cristina, Minas Gerais, Brazil represents a moderately good location for year-round solar PV energy generation. The location produces consistent solar energy throughout the year, with seasonal variations that reflect the Southern Hemisphere's weather patterns.

Seasonal Solar Performance

Summer delivers the highest solar output at 6.26 kWh per day per kW of installed capacity, making it the ideal time for solar generation at this location. Spring follows as the second-best season with 5.75 kWh per day per kW, while autumn produces 5.38 kWh per day per kW. Winter shows the lowest output at 4.82 kWh per day per kW, though this still represents reasonable solar generation potential. The relatively modest seasonal variation means that solar installations at Cristina can provide fairly reliable energy production throughout the year. The difference between the best and worst performing seasons is only about 1.44 kWh per day per kW, indicating good year-round consistency.

Optimal Panel Installation

For fixed panel installations at this location, the ideal tilt angle to maximize total year-round solar production is 21 degrees facing North. This angle has been calculated to optimize solar collection across all seasons by accounting for the sun's varying elevation angles throughout the year and weighting these angles based on actual solar irradiance data.

Environmental and Weather Factors

Several local factors could potentially impact solar production at Cristina and should be considered during installation planning:

• Seasonal rainfall patterns typical of tropical and subtropical regions may reduce solar output during wet periods through cloud cover and atmospheric moisture
• High humidity levels can lead to moisture accumulation on panels, reducing light transmission
• Dust and particulate matter may accumulate on panel surfaces, particularly during drier periods
• Tropical vegetation growth can create shading issues if not properly managed

Preventative Measures for Optimal Performance

To maximize energy production despite these challenges, several installation strategies should be implemented:

• Install panels with adequate spacing and ventilation to prevent moisture buildup and allow for natural cleaning by rainfall
• Design mounting systems that facilitate easy access for regular cleaning and maintenance
• Conduct thorough site surveys to identify and remove potential shading from vegetation before installation
• Consider anti-reflective coatings that can help shed water and reduce dust accumulation
• Plan regular maintenance schedules that align with seasonal weather patterns, particularly before and after wet seasons

Overall, while Cristina presents some typical tropical challenges for solar installations, proper planning and maintenance can help ensure strong year-round solar energy production at this location.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

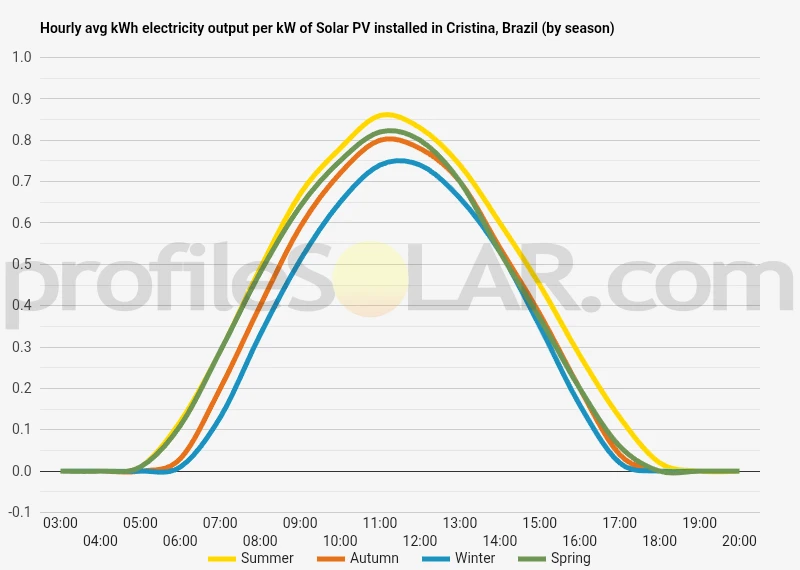

Solar output per kW of installed solar PV by season in Cristina

Seasonal solar PV output for Latitude: -22.2159, Longitude: -45.2882 (Cristina, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Cristina, Brazil

To maximize your solar PV system's energy output in Cristina, Brazil (Lat/Long -22.2159, -45.2882) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cristina, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cristina, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	28° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cristina, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cristina, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cristina, Brazil

Topographical Features of the Cristina Region

The area around Cristina in southern Minas Gerais state sits within the Serra da Mantiqueira mountain range, a significant geological formation that extends across southeastern Brazil. This region is characterized by rolling hills, elevated plateaus, and moderate mountain slopes that create a varied landscape of peaks and valleys. The terrain generally sits at elevations between 800 and 1,200 meters above sea level, placing it in Brazil's highland zone where the climate remains more temperate than the tropical lowlands. The topography features a mixture of gentle slopes and steeper inclines, with numerous small valleys carved by seasonal streams and tributaries that eventually feed into larger river systems. The landscape is predominantly rural, with extensive areas of pastureland for cattle ranching interspersed with patches of Atlantic Forest remnants on the steeper slopes and hilltops. Agricultural activities in the flatter areas include coffee cultivation, which thrives in this elevated environment.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be the elevated plateaus and gentle south-facing slopes that dominate much of the region's higher elevations. These areas offer the dual advantages of relatively flat terrain that minimizes construction complexity while maintaining the altitude benefits that provide clearer atmospheric conditions and consistent solar exposure throughout the year. The rolling hills with gradual inclines of less than 15 degrees present ideal conditions for solar arrays, as they require minimal grading while still allowing for optimal panel orientation. These areas are typically found on the broader ridges and plateau sections that extend between the steeper valley systems. The consistent elevation and open exposure of these highland areas make them particularly attractive for utility-scale solar development. Areas currently used for extensive cattle grazing on the gentler slopes would be especially well-suited for solar installations, as the existing land use indicates terrain that is already relatively level and accessible. The combination of adequate elevation, manageable topography, and existing infrastructure access through rural roads makes these grazing areas prime candidates for solar development while allowing for potential dual land use arrangements. The region's position on elevated terrain provides natural advantages for solar installations by reducing atmospheric interference and maintaining more stable weather patterns compared to lower-lying areas. The highland location also offers better air circulation, which helps maintain optimal operating temperatures for photovoltaic equipment throughout the year.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
