Cruz, Ceará, Brazil presents an excellent location for year-round solar photovoltaic energy generation, with its tropical positioning delivering consistent sunlight throughout most of the year where seasons are characterized more by wet and dry periods rather than traditional temperature variations.

Solar Energy Production Potential

The solar energy output at Cruz demonstrates strong performance across all seasons, with particularly impressive generation during spring months. The location produces 6.22kWh per day per kW of installed capacity in summer, 5.68kWh/day in autumn, 6.42kWh/day in winter, and peaks at 7.31kWh/day during spring. Spring emerges as the optimal season for solar generation at this location, delivering nearly 30% more energy than the lowest-performing autumn period. This seasonal variation is relatively modest compared to locations outside the tropics, making Cruz highly suitable for consistent year-round solar energy production. For maximum annual energy output, fixed solar panels at Cruz should be installed at an ideal tilt angle of 3 degrees facing north. This shallow angle optimization accounts for the location's proximity to the equator and maximizes solar collection throughout the year by balancing seasonal sun angle variations.

Environmental and Weather Factors

Several local factors could potentially impact solar production at Cruz and require consideration during installation planning. The tropical climate brings significant rainfall during wet seasons, which can temporarily reduce solar output due to cloud cover and atmospheric moisture. However, this same rainfall provides a natural cleaning mechanism for solar panels, helping maintain their efficiency by washing away dust and debris. High humidity levels characteristic of tropical coastal regions can affect equipment longevity and performance. Moisture can potentially cause corrosion of metal components and degradation of electrical connections over time.

Preventative Measures for Optimal Performance

Several installation strategies can help maximize solar energy production at this location:

• Install panels with adequate ventilation spacing beneath to promote air circulation and prevent moisture buildup
• Use marine-grade or tropical-rated electrical components and wiring designed to withstand high humidity and salt air exposure
• Apply protective coatings to metal mounting hardware to prevent corrosion from humid conditions
• Ensure proper drainage around panel installations to prevent water accumulation during heavy rainfall periods

Regular maintenance becomes particularly important in this tropical environment. Periodic inspection of electrical connections and prompt replacement of any corroded components will help maintain optimal system performance throughout the equipment's lifespan. Despite these considerations, Cruz's consistent solar resource and relatively minor seasonal variation make it an highly favorable location for solar photovoltaic installations, with the tropical climate's challenges being easily manageable through proper installation techniques and routine maintenance practices.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

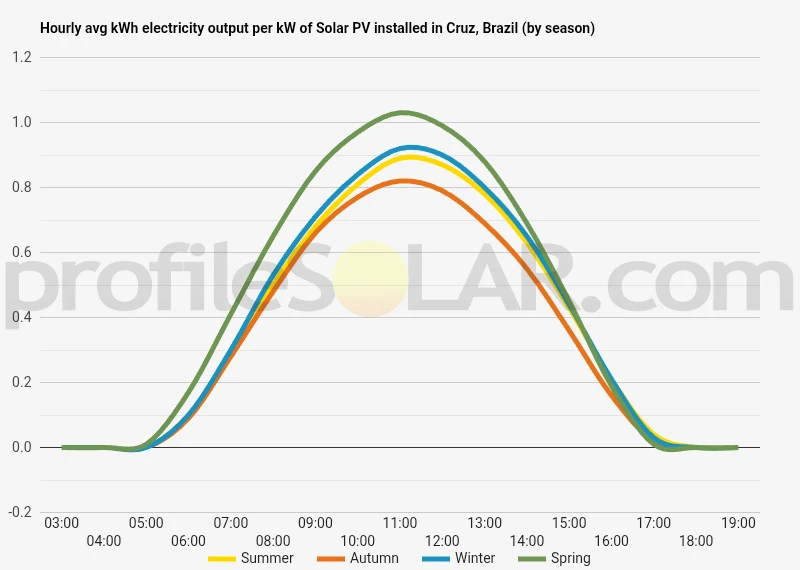

Solar output per kW of installed solar PV by season in Cruz

Seasonal solar PV output for Latitude: -2.8962, Longitude: -40.3357 (Cruz, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 3° North in Cruz, Brazil

To maximize your solar PV system's energy output in Cruz, Brazil (Lat/Long -2.8962, -40.3357) throughout the year, you should tilt your panels at an angle of 3° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cruz, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cruz, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 3° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° South in Summer	10° North in Autumn	19° North in Winter	3° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cruz, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cruz, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cruz, Brazil

Topographical Features of Cruz, Brazil

Cruz is situated in the northeastern state of Ceará, Brazil, within a region characterized by relatively flat to gently rolling terrain typical of the Caatinga biome. The landscape around this location features low-lying plains with occasional small hills and undulating terrain that rarely exceeds significant elevation changes. The area sits at a modest altitude above sea level, contributing to the generally stable topographical conditions found throughout this part of the Brazilian northeast.

The surrounding terrain consists primarily of semi-arid plains with scattered vegetation adapted to the dry climate conditions. Small seasonal watercourses and intermittent streams create minor valleys and depressions in the landscape, but these features are generally shallow and do not create dramatic elevation changes. The soil composition includes sandy and clay-based surfaces with areas of exposed bedrock, particularly during the dry season when vegetation cover becomes sparse.

Rocky outcrops and small mesa-like formations appear sporadically across the region, creating subtle variations in the otherwise relatively uniform landscape. These geological features, while not towering, provide some visual relief and can influence local drainage patterns. The terrain gradually transitions from slightly higher ground to lower-lying areas as it approaches river valleys and seasonal wetlands.

Optimal Areas for Large-Scale Solar Development

The extensive flat and gently sloping plains surrounding Cruz present excellent opportunities for large-scale solar photovoltaic installations. These areas offer the stable, level ground necessary for efficient panel placement and maintenance access, while minimizing the need for extensive site preparation or grading work. The relatively uniform terrain reduces construction complexity and associated costs.

Areas with minimal vegetation cover and sparse tree growth would be particularly suitable for solar development, as they require less land clearing and environmental impact. The sandy plains and areas with harder-packed soil surfaces provide good foundation conditions for mounting systems, while remaining accessible for construction equipment and ongoing maintenance vehicles.

The slightly elevated plateaus and mesa-top areas in the region offer additional advantages for solar installations, providing natural drainage and potentially reducing issues with water accumulation during the rainy season. These elevated positions also tend to have consistent wind patterns that can help with natural panel cooling, improving overall system efficiency.

Large contiguous areas of open land, particularly those away from seasonal waterways and flood-prone zones, represent the most practical locations for utility-scale solar farms. The region's sparse population density means that extensive tracts of suitable land are available without significant conflicts with residential or agricultural uses. Areas with existing road access or proximity to electrical transmission infrastructure would be especially attractive for development, reducing the additional infrastructure investments required for project completion.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
