Cunha, São Paulo, Brazil presents a moderately favorable location for year-round solar energy generation, though it experiences significant seasonal variation in output. Located in the southern tropics at coordinates -23.0404, -44.927, this region benefits from consistent sunlight availability throughout most of the year, with seasons characterized more by wet and dry periods than dramatic temperature changes.

Seasonal Solar Performance

The solar energy output at Cunha varies considerably across the seasons. Summer delivers the strongest performance at 6.67 kWh per day per kW of installed solar capacity, making it the ideal time for maximum energy generation. Spring and autumn provide moderate output levels at 5.16 kWh and 5.25 kWh per day respectively, while winter shows the lowest production at 4.11 kWh per day per kW installed. For optimal year-round energy capture, fixed solar panels at this location should be tilted at 21 degrees facing north. This angle maximizes total annual production by accounting for the sun's path throughout the year and the Earth's elliptical orbit around the sun.

Environmental Challenges and Solutions

Several local factors can significantly impact solar energy production in Cunha and require careful consideration during installation:

• Heavy rainfall and humidity: The tropical wet season brings intense precipitation that can reduce solar irradiance and create moisture-related equipment issues
• Cloud cover: Persistent cloud formation during wet periods can substantially decrease solar output
• Vegetation growth: The humid climate promotes rapid plant growth that can shade panels if not properly managed
• Corrosion risks: High humidity levels accelerate corrosion of metal components and electrical connections

To maximize energy production despite these challenges, several preventative measures should be implemented. Installing panels with excellent drainage systems and using corrosion-resistant materials like aluminum frames and stainless steel hardware helps combat moisture damage. Regular cleaning schedules become essential to remove accumulated dirt, pollen, and organic matter that tropical climates tend to deposit on panel surfaces. Proper site selection involves choosing locations with minimal shading from existing trees and planning for future vegetation growth. Installing panels at sufficient height and maintaining clear zones around the installation prevents shading issues. Using high-quality inverters and electrical components rated for humid conditions, along with proper sealing of all electrical connections, helps ensure reliable long-term operation in this tropical environment.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

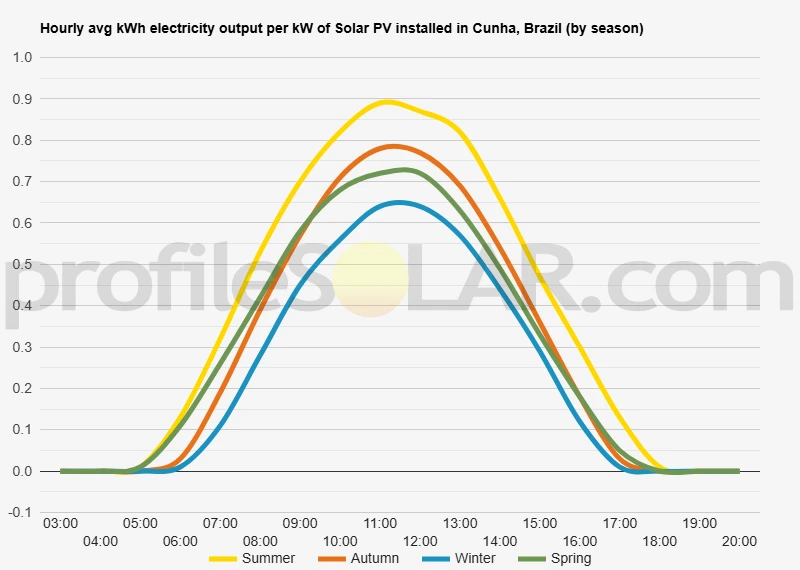

Solar output per kW of installed solar PV by season in Cunha

Seasonal solar PV output for Latitude: -23.0404, Longitude: -44.927 (Cunha, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Cunha, Brazil

To maximize your solar PV system's energy output in Cunha, Brazil (Lat/Long -23.0404, -44.927) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cunha, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cunha, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	28° North in Autumn	39° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cunha, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cunha, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cunha, Brazil

Topographical Features of Cunha

Cunha sits nestled in the Serra da Mantiqueira mountain range of São Paulo state, positioned at an elevation of approximately 1,100 meters above sea level. The town occupies a mountainous terrain characterized by rolling hills, steep valleys, and dramatic elevation changes that create a complex landscape of ridges and depressions. This highland region forms part of the Atlantic Forest biome, where dense vegetation covers much of the undulating terrain.

The surrounding topography features a series of mountain peaks and ridgelines that extend in various directions, creating natural barriers and defining watershed boundaries. Deep valleys carved by streams and small rivers cut through the landscape, forming narrow corridors between the elevated areas. The terrain exhibits significant variations in slope, with some areas featuring gentle inclines while others present steep gradients that can exceed 30 degrees.

The region's geological foundation consists primarily of crystalline rocks from the Brazilian Shield, which has been shaped over millions of years by weathering and erosion. This has resulted in a landscape with exposed rock outcrops interspersed with areas of deeper soil development, particularly in the valley bottoms and more sheltered locations.

Optimal Areas for Large-Scale Solar Development

The mountainous terrain around Cunha presents both challenges and opportunities for large-scale solar photovoltaic installations. The most suitable areas would be found on the broader ridgetops and plateaus where relatively flat or gently sloping land provides stable foundations for solar arrays. These elevated positions also benefit from reduced shading from surrounding terrain features and vegetation.

South-facing slopes with moderate gradients represent excellent candidates for solar development, as they can capture optimal sun exposure throughout the day while maintaining manageable construction and maintenance access. Areas with slopes between 5 and 15 degrees are particularly favorable, as they allow for efficient panel positioning without requiring extensive site preparation or specialized mounting systems.

The valleys and lower-lying areas, while potentially offering larger continuous parcels of land, may face challenges from morning and evening shading caused by the surrounding hills and mountains. However, broader valley floors with good southern exposure could still serve as viable locations, particularly where the terrain opens up and natural barriers are minimized.

Cleared agricultural land and pastures scattered throughout the region would be prime candidates for solar installations, as they already lack the dense forest cover that characterizes much of the Serra da Mantiqueira. These areas typically have established access roads and may require less environmental impact assessment compared to forested locations.

Areas with existing infrastructure connections, such as proximity to transmission lines and paved roads, would be particularly attractive for large-scale development. The terrain closer to the main highways and population centers tends to be more accessible while still maintaining favorable topographical characteristics for solar energy generation.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
