Solar Energy Potential in Curitibanos, Santa Catarina, Brazil

Curitibanos, Santa Catarina, Brazil, located in the Southern Sub Tropics, offers a moderately good location for generating solar energy throughout the year. The seasonal variations in solar production show typical patterns for a southern hemisphere location, with higher output during summer months and lower production in winter. The solar energy output per kilowatt of installed capacity varies significantly across the seasons. In summer, panels generate an impressive 6.54kWh per day, making this the prime season for solar energy production. Spring follows as the second-most productive season with 5.29kWh daily output, while autumn provides a moderate 4.64kWh per day. Winter shows the lowest production at 3.45kWh daily, which is expected due to shorter days and lower sun angles during this season.

Optimal Panel Installation

For fixed solar panel installations in Curitibanos, Santa Catarina, the ideal tilt angle to maximize year-round energy production is 24 degrees facing North. This specific angle optimizes the capture of solar radiation throughout the year, balancing the seasonal variations in sun position. The significant difference between summer and winter production (nearly double in summer compared to winter) suggests that solar energy systems in this location would benefit from having some form of energy storage or grid connection to handle seasonal variations.

Environmental Considerations

Several environmental factors could potentially affect solar production in Curitibanos:

• Occasional frost in winter months may temporarily reduce panel efficiency
• Seasonal rainfall patterns, particularly in spring and summer, could lead to cloudy periods
• Dust accumulation during drier periods might gradually decrease panel performance

To mitigate these challenges, solar installations should incorporate regular cleaning schedules, especially before and after dry seasons. Anti-reflective coatings can help maximize light absorption even during lower light conditions in winter. Additionally, slightly increasing the tilt angle beyond the recommended 24 degrees might help with natural cleaning from rainfall and improve winter production, though at the expense of some summer output. Overall, Curitibanos offers a viable location for solar PV installation, with strong summer and spring production that can compensate for the lower winter output when properly designed systems are implemented.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

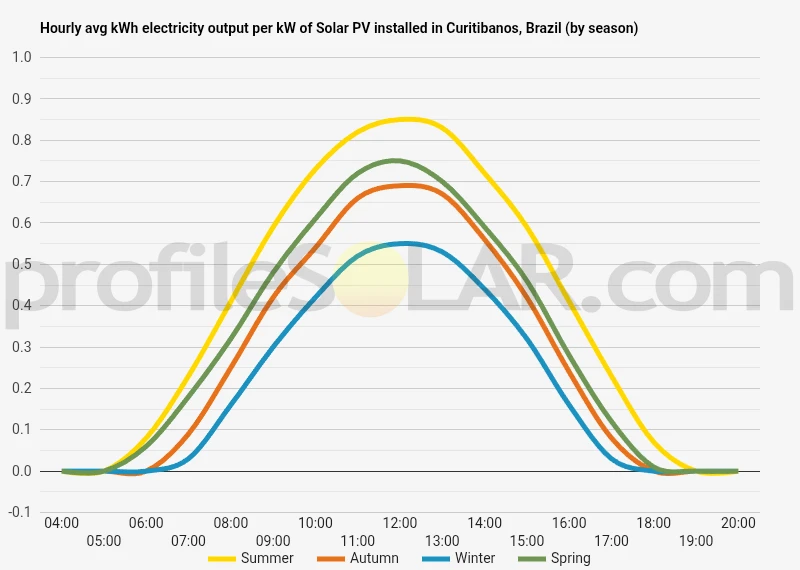

Solar output per kW of installed solar PV by season in Curitibanos

Seasonal solar PV output for Latitude: -27.272, Longitude: -50.6134 (Curitibanos, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Curitibanos, Brazil

To maximize your solar PV system's energy output in Curitibanos, Brazil (Lat/Long -27.272, -50.6134) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Curitibanos, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Curitibanos, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° North in Summer	33° North in Autumn	42° North in Winter	20° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Curitibanos, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Curitibanos, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Curitibanos, Brazil

Curitibanos is situated in the central region of Santa Catarina state in southern Brazil, nestled within the picturesque highlands known as the Santa Catarina Plateau. The topography around Curitibanos is characterized by rolling hills and undulating terrain, with elevations generally ranging between 800 and 1,000 meters above sea level. This highland region features a mix of gentle slopes and more pronounced elevations, creating a varied landscape that transitions between plateaus and valleys. The area is part of the broader Serra Geral formation, with the terrain gradually rising toward the east where it meets the Serra do Mar mountain range. To the west, the landscape becomes slightly less rugged as it extends toward the Uruguay River basin. The local topography has been shaped by ancient volcanic activity and subsequent erosion, resulting in the distinctive rolling profile that defines this region.

Watershed Features

Several important rivers traverse the region, including tributaries of the Canoas and Marombas rivers, which have carved valleys through the otherwise rolling terrain. These waterways have created natural depressions in the landscape, with surrounding areas featuring more pronounced slopes. The watershed divides in this region contribute to drainage patterns that flow ultimately toward the Uruguay River system. The combination of plateau areas and river valleys creates a diverse topographic profile that influences local climate patterns, with higher elevations experiencing different conditions than the lower valley areas.

Vegetation and Land Use

The native vegetation around Curitibanos consists primarily of mixed Araucaria forests and grasslands typical of the southern Brazilian highlands. However, much of the natural landscape has been modified for agricultural use, with extensive areas now dedicated to crops and pastureland. This agricultural development has generally favored the flatter plateau areas, while steeper slopes often retain more of their natural vegetation.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic development, the most suitable areas near Curitibanos would be the relatively flat plateau sections that feature minimal shading from surrounding terrain. The gently rolling highlands to the north and northwest of Curitibanos offer particularly promising conditions, as these areas combine favorable topography with good solar exposure. The elevated plateau regions provide several advantages for solar installations. Their higher elevation means less atmospheric interference for incoming solar radiation. Additionally, the open, gently sloping terrain in these areas would minimize the earthwork required for installation while still allowing for optimal panel orientation. Areas to avoid would include the steeper eastern slopes that rise toward the Serra do Mar, as well as the more deeply incised river valleys where shading from surrounding terrain could significantly reduce generation potential. The southwestern portions of the region, where the terrain becomes more complex with alternating ridges and valleys, would also present challenges for large-scale installations. The plateau areas surrounding Curitibanos, particularly those with southerly or westerly aspects, would require careful assessment, as these orientations receive less direct solar exposure in the Southern Hemisphere. The ideal sites would be those with northerly aspects and slopes of less than 10 degrees, which are abundant in the plateau regions to the north and northwest of the city. From a development perspective, the areas within approximately 20-30 kilometers north and northwest of Curitibanos represent the best balance of favorable topography, minimal shading concerns, and proximity to existing infrastructure, making them prime candidates for large-scale solar PV development.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
