Solar Energy Potential in Curvelo, Minas Gerais, Brazil

Curvelo, Minas Gerais, Brazil, located at latitude -18.6175 and longitude -44.6324, offers excellent conditions for solar photovoltaic (PV) energy generation throughout the year. This tropical location benefits from consistent sunlight patterns that make it a promising site for solar energy investments. The seasonal solar production data shows remarkable consistency across the year. During summer months, each kilowatt of installed solar capacity generates approximately 6.41 kWh per day, while autumn yields about 6.05 kWh daily. Winter represents the lowest production period with 5.51 kWh per day, and spring rebounds to 6.27 kWh daily per installed kilowatt. What's particularly notable about Curvelo's solar potential is the relatively small variation between seasons. The difference between the highest production (summer) and lowest production (winter) is less than 1 kWh per day, indicating reliable year-round energy generation potential. This consistency is a significant advantage compared to locations at higher latitudes where winter production can drop dramatically.

Optimal Panel Installation

For fixed solar panel installations in Curvelo, Minas Gerais, the ideal tilt angle to maximize year-round energy production is 18 degrees facing North. This specific angle has been calculated by analyzing the site's latitude, daily solar elevation angles, and weighting these factors against NASA's solar irradiance data while accounting for Earth's elliptical orbit. The most productive periods for solar generation in Curvelo are summer and spring, making these seasons ideal for peak energy harvesting. However, the relatively small seasonal variation means that even during the "less productive" seasons of autumn and winter, solar generation remains robust.

Environmental and Weather Considerations

Several environmental factors could potentially affect solar production in Curvelo:

• Dust accumulation during dry seasons can reduce panel efficiency by 5-15% if not regularly cleaned
• Occasional heavy rainfall during wet seasons may temporarily reduce production
• Higher temperatures in summer can slightly reduce panel efficiency

To maximize energy production despite these challenges, several preventative measures can be implemented. Installing panels with a sufficient tilt (the recommended 18 degrees) helps with self-cleaning during rainfall. Implementing a regular cleaning schedule, particularly during dry seasons, will maintain optimal efficiency. Using temperature-resistant panels rated for tropical conditions will minimize efficiency losses during hot periods. Additionally, incorporating a monitoring system can help identify production drops early, allowing for prompt maintenance. These measures, combined with Curvelo's favorable solar conditions, can ensure consistently high energy production throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

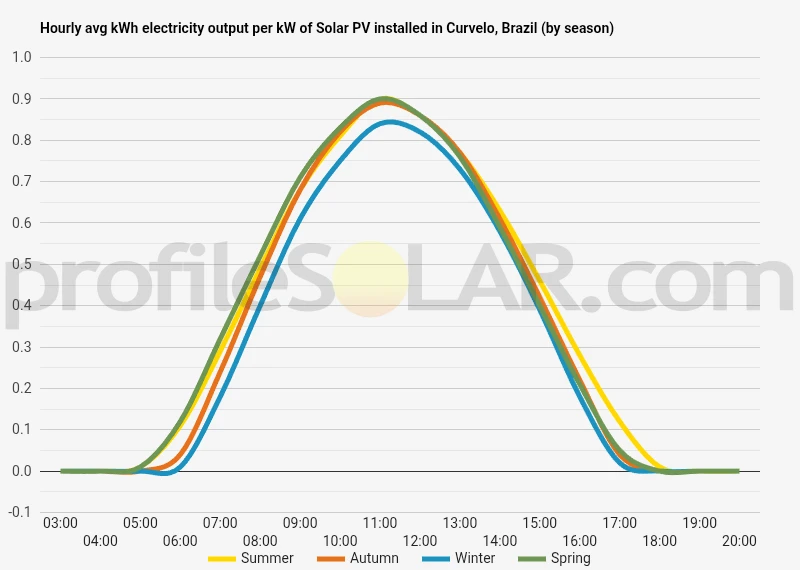

Solar output per kW of installed solar PV by season in Curvelo

Seasonal solar PV output for Latitude: -18.6175, Longitude: -44.6324 (Curvelo, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 18° North in Curvelo, Brazil

To maximize your solar PV system's energy output in Curvelo, Brazil (Lat/Long -18.6175, -44.6324) throughout the year, you should tilt your panels at an angle of 18° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Curvelo, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Curvelo, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 18° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
3° North in Summer	24° North in Autumn	34° North in Winter	13° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Curvelo, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Curvelo, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Curvelo, Brazil

The area around Curvelo, Brazil is characterized by a diverse topography that forms part of the Brazilian Highlands. Located in the state of Minas Gerais, Curvelo sits within a transitional zone between the cerrado (savanna) and caatinga (semi-arid) ecosystems. The landscape features gently rolling hills, plateaus, and occasional more pronounced elevations. The terrain around Curvelo generally ranges from approximately 600 to 800 meters above sea level, with some surrounding areas reaching higher elevations. The region is part of the São Francisco River basin, with the river itself flowing about 40 kilometers west of the city. This proximity to a major water source has influenced the local topography, creating valleys and more fertile areas near the watercourse while maintaining drier conditions in elevated areas.

Topographical Features

The immediate surroundings of Curvelo present a mixture of open grasslands, scattered woodland patches, and agricultural areas. Moving outward from the urban center, the landscape becomes more varied. To the east, the terrain gradually rises toward the Serra do Espinhaço mountain range, which forms a natural boundary in the region. These eastern highlands feature more rugged terrain with steeper slopes and higher elevations. To the west and southwest, the land tends to be flatter as it approaches the São Francisco River valley. This area features more extensive plateaus with gradual slopes. The northwestern regions maintain similar characteristics with wide-open spaces and moderate relief. The southern approach to Curvelo includes more pronounced hills and valleys, creating a patchwork of varying elevations. This undulating landscape continues with increasing complexity as one moves further south toward the more densely populated regions of central Minas Gerais.

Soil and Surface Characteristics

The soils around Curvelo vary considerably, with reddish latosols predominating in many areas. These soils, while often lacking in nutrients, provide stable ground conditions. Rocky outcrops appear occasionally throughout the region, particularly in the eastern sections approaching the Serra do Espinhaço. Vegetation cover changes with the topography, with denser woody vegetation in the valleys and more sparse coverage on the higher ground. Many areas have been cleared for agriculture and cattle ranching, creating open spaces with minimal natural vegetation.

Optimal Areas for Solar PV Development

Given the topographical characteristics of the region, several areas around Curvelo present favorable conditions for large-scale solar photovoltaic installations: The western and northwestern plateaus offer the most promising locations for solar development. These areas combine several advantageous features: relatively flat terrain that minimizes grading requirements, good solar exposure with minimal shadowing from topographical features, and generally stable soil conditions that simplify foundation work. The openness of these landscapes also means fewer natural obstacles and potentially simpler land acquisition processes. The southwestern approach toward the São Francisco River also presents viable options, though proximity to the river might introduce more humidity and occasional morning fog in some locations. Nevertheless, the generally flat terrain makes these areas worthy of consideration. The eastern regions approaching the Serra do Espinhaço present more challenges due to increasing elevation changes and more complex terrain. However, specific plateaus and table-like formations within this area could offer good solar exposure and might be suitable for smaller installations where the topography allows. Southern areas, while workable, generally present more topographical variation that would likely increase development costs due to additional grading requirements. These areas might be better suited for smaller, distributed solar projects rather than utility-scale installations. The most promising solar development zones would be those combining favorable topography with proximity to existing transmission infrastructure. The relatively flat western plains near existing power lines would likely offer the best balance of development costs and energy production potential.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
