Diamante do Norte, Brazil presents a moderately favorable location for year-round solar energy generation, though it experiences notable seasonal variation in solar output despite being situated in a tropical climate zone.

Seasonal Solar Performance

The location delivers its strongest solar performance during summer months, generating 6.98 kWh per day per kW of installed solar capacity. Spring follows as the second-best season with 6.28 kWh/day per kW, while autumn produces 5.72 kWh/day per kW. Winter represents the least productive period, dropping to 4.51 kWh/day per kW of installed capacity. This seasonal pattern shows a significant 55% difference between peak summer and minimum winter production. The optimal months for solar generation align with the Southern Hemisphere's warmer season from December through March, with spring months (September-November) also providing strong output.

Optimal Panel Configuration

For maximum year-round energy production at this location, solar panels should be installed at a fixed tilt angle of 20 degrees facing north. This angle has been calculated to optimize total annual solar capture by accounting for the sun's varying elevation throughout the year and weighting for daily solar potential based on irradiance data.

Environmental and Weather Considerations

Several local factors could potentially impact solar production efficiency at Diamante do Norte:

• Tropical humidity and moisture: High humidity levels common in tropical regions can reduce panel efficiency and promote corrosion of electrical components
• Seasonal rainfall patterns: Extended wet seasons may reduce solar irradiance and create challenges with water accumulation on panels
• Agricultural dust and particles: The rural agricultural setting may generate dust and organic particles that accumulate on panel surfaces
• Temperature effects: High ambient temperatures can reduce photovoltaic efficiency, as solar panels typically perform better in cooler conditions

Recommended Preventative Measures

To maximize energy production despite these challenges, several installation strategies should be considered:

• Enhanced ventilation: Install panels with adequate spacing beneath for airflow to reduce operating temperatures
• Corrosion-resistant materials: Use marine-grade aluminum frames and stainless steel mounting hardware to withstand humid conditions
• Regular cleaning systems: Implement automated cleaning systems or establish routine manual cleaning schedules to remove dust and debris
• Proper drainage design: Ensure mounting systems allow complete water drainage and prevent standing water around electrical connections
• Quality inverters with temperature management: Select inverters rated for tropical conditions with adequate cooling systems

Despite these considerations, Diamante do Norte remains a viable location for solar energy generation, particularly when proper installation techniques and maintenance practices are employed to address the local environmental conditions.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

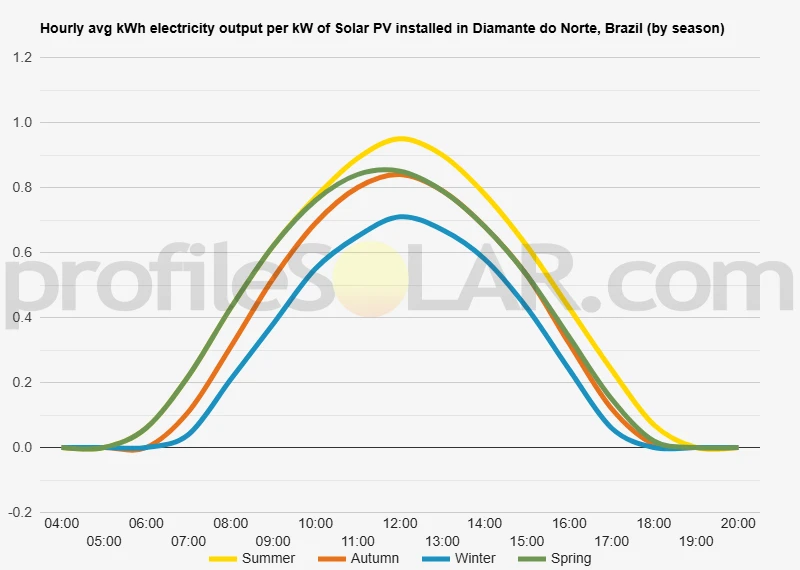

Solar output per kW of installed solar PV by season in Diamante Do Norte

Seasonal solar PV output for Latitude: -22.6375, Longitude: -52.8728 (Diamante Do Norte, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Diamante Do Norte, Brazil

To maximize your solar PV system's energy output in Diamante Do Norte, Brazil (Lat/Long -22.6375, -52.8728) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Diamante Do Norte, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Diamante Do Norte, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	28° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Diamante Do Norte, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Diamante Do Norte, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Diamante Do Norte, Brazil

Topography of Diamante do Norte

Diamante do Norte sits in the northwestern region of Paraná state, Brazil, positioned along the Paraná River which forms the border with Mato Grosso do Sul. The terrain around this municipality is characterized by relatively flat to gently rolling topography, typical of the broader Paraná River basin. The landscape consists primarily of agricultural plains with modest elevation changes, creating an environment that has been extensively modified for farming activities.

The immediate vicinity features predominantly low-lying areas with occasional slight undulations that rarely exceed gentle slopes. The Paraná River and its tributaries have shaped much of the local geography over millennia, creating fertile alluvial plains that extend inland from the riverbanks. These river systems have deposited sediments across the region, resulting in generally level terrain that facilitates both agriculture and potential infrastructure development.

The elevation in this area remains fairly consistent, with gradual transitions between higher and lower ground rather than dramatic changes in topography. Small streams and seasonal waterways create minor valleys and depressions throughout the landscape, but these features are typically shallow and do not significantly interrupt the overall flatness of the terrain.

Solar Development Suitability

The gently rolling agricultural plains surrounding Diamante do Norte present excellent opportunities for large-scale solar photovoltaic installations. The most suitable areas would be the expansive flat agricultural fields that extend eastward and southward from the municipality, where the terrain offers minimal slope variations and few natural obstacles.

Areas slightly elevated above the immediate river floodplains would be particularly advantageous for solar development, as they provide stable ground conditions while remaining easily accessible for construction and maintenance activities. These elevated zones, typically found a few kilometers inland from the Paraná River, offer the dual benefits of flood protection and relatively unobstructed exposure to sunlight throughout the day.

The agricultural lands that have been cleared of native vegetation present ready-made sites for solar installations, requiring minimal additional land preparation. The existing rural road network that serves the farming community would facilitate access for construction equipment and ongoing maintenance operations. Areas with southern exposure and minimal shading from remaining vegetation or structures would be most optimal for photovoltaic arrays.

The region's flat topography eliminates concerns about steep slopes that could complicate installation or create shading issues between panel rows. This terrain allows for efficient use of available land area and simplified mounting systems, potentially reducing overall project costs compared to more challenging topographical conditions found in other regions.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
