Diamante do Sul, Brazil, located in the Southern Sub Tropics, presents a moderately favorable location for year-round solar PV energy generation, though with notable seasonal variations that potential solar installers should carefully consider.

Seasonal Energy Production Patterns

The solar energy output at this location shows significant seasonal fluctuation throughout the year. Summer provides the strongest performance with 7.03 kWh per day per kW of installed solar capacity, making it the optimal season for solar generation. Spring follows as the second-best period with 6.05 kWh per day per kW, while autumn drops to 5.42 kWh per day per kW. Winter presents the most challenging season for solar production, generating only 4.18 kWh per day per kW of installed capacity. This represents a substantial 40% reduction compared to summer output, which is typical for locations in the Southern Hemisphere's subtropical regions.

Optimal Panel Configuration

For maximum year-round energy production at Diamante do Sul, solar panels should be installed at a fixed tilt angle of 22 degrees facing North. This angle has been calculated to optimize total annual solar output by accounting for the sun's varying position throughout the seasons and the location's specific latitude.

Environmental and Weather Factors

Several regional factors could potentially impact solar production efficiency at this location:

• Subtropical humidity levels may lead to increased moisture and condensation on panels, reducing light transmission
• Seasonal rainfall patterns typical of Southern Brazil could result in extended cloudy periods, particularly during winter months
• Agricultural activities in the surrounding region may generate dust and particulate matter that accumulates on solar panels
• Potential for severe weather events including hailstorms and strong winds during storm seasons

Preventative Measures for Enhanced Performance

To maximize solar energy production despite these environmental challenges, several installation strategies should be considered:

• Install panels with adequate spacing and ventilation to prevent moisture buildup and allow for natural air circulation
• Implement regular cleaning schedules, particularly during dry seasons when dust accumulation is highest
• Use high-quality mounting systems designed to withstand strong winds and potential hail damage
• Consider anti-reflective coatings and self-cleaning panel surfaces to maintain optimal light absorption
• Install monitoring systems to quickly identify and address any performance issues caused by weather-related factors

Despite the seasonal variations and environmental considerations, Diamante do Sul offers reasonable solar potential for most of the year, with particularly strong performance during the warmer months when energy demand for cooling is typically highest.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

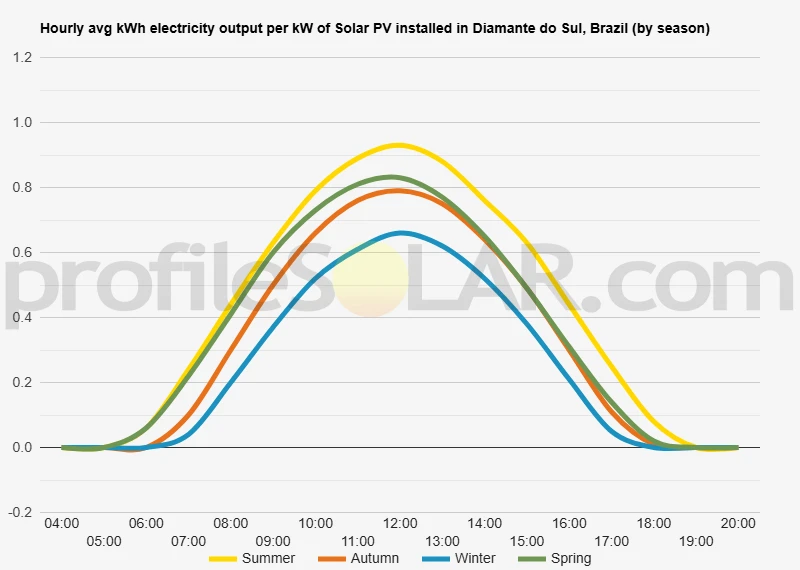

Solar output per kW of installed solar PV by season in Diamante Do Sul

Seasonal solar PV output for Latitude: -24.9868, Longitude: -52.7013 (Diamante Do Sul, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 22° North in Diamante Do Sul, Brazil

To maximize your solar PV system's energy output in Diamante Do Sul, Brazil (Lat/Long -24.9868, -52.7013) throughout the year, you should tilt your panels at an angle of 22° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Diamante Do Sul, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Diamante Do Sul, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 22° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° North in Summer	31° North in Autumn	40° North in Winter	18° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Diamante Do Sul, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Diamante Do Sul, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Diamante Do Sul, Brazil

Topographical Features of Diamante do Sul

Diamante do Sul sits in the western region of Paraná state, Brazil, within a landscape characterized by gently rolling hills and relatively flat plateaus. The terrain in this area forms part of the broader Paraná Plateau, which extends across much of southern Brazil. The topography consists primarily of undulating farmland with elevation changes that are generally gradual rather than steep, creating a landscape that rises and falls in gentle waves across the countryside.

The region experiences a subtropical climate with distinct wet and dry seasons, and the terrain shows evidence of extensive agricultural development. Much of the natural forest cover has been cleared over decades to make way for farming operations, particularly soybean and corn cultivation. This agricultural transformation has created large expanses of relatively open land with minimal tree coverage, interrupted occasionally by small woodlots and riparian forests along waterways.

Drainage Patterns and Water Features

The area around Diamante do Sul is drained by several small rivers and streams that flow generally westward toward the Paraná River system. These waterways have carved shallow valleys into the landscape, creating a network of gentle depressions and ridges. The drainage patterns are well-established and relatively predictable, with most streams flowing year-round due to the region's adequate rainfall patterns.

Small reservoirs and farm ponds dot the landscape, created primarily for agricultural irrigation and livestock watering. These water features are typically modest in size and do not significantly alter the overall topographical character of the region. The soil composition is largely clay-based, typical of the Paraná Plateau, which provides good stability for construction projects while also supporting the area's agricultural activities.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Diamante do Sul would be the elevated plateau areas that offer relatively flat terrain with minimal slope variations. These locations provide the best combination of stable ground conditions and reduced shading from surrounding topographical features. The areas to the north and east of the town center appear particularly well-suited, where the terrain flattens out into broad agricultural fields with good southern exposure.

Ridge tops and upper plateau areas would be ideal candidates for solar development, as they typically receive consistent sunlight throughout the day without interference from nearby hills or valleys. These elevated positions also tend to have better drainage characteristics, which is important for the long-term stability of solar installations. The existing agricultural clearings in these areas mean that minimal additional land preparation would be required, as the terrain is already open and accessible.

Areas to avoid for large-scale solar development would include the narrow valleys and drainage corridors, where morning and evening shadows from surrounding ridges could reduce energy production. Additionally, the steeper slopes found along some hillsides would present engineering challenges and potentially higher installation costs. The flatter agricultural areas, particularly those currently used for row crop production, represent the most economically viable locations for solar development due to their accessibility, stable soil conditions, and favorable topographical characteristics.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
