Dom Joaquim, Minas Gerais, Brazil presents a highly favorable location for year-round solar PV energy generation. Situated in the tropics at coordinates -18.9293, -43.266, this location benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than dramatic temperature changes.

Solar Energy Production Potential

The solar energy output data reveals excellent potential across all seasons. Summer delivers the highest performance at 6.02 kWh per day per kW of installed solar capacity, while spring follows closely at 5.81 kWh/day per kW. Autumn maintains strong production at 5.61 kWh/day per kW, and even winter, the lowest-performing season, still generates a respectable 4.94 kWh/day per kW. For optimal year-round energy capture, solar panels should be installed at a fixed tilt angle of 18 degrees facing north. This angle maximizes total annual production by accounting for the sun's path throughout the year and the location's specific latitude.

Peak Solar Generation Periods

The data indicates that summer and spring represent the ideal times for solar generation at Dom Joaquim, Minas Gerais, with summer showing the absolute peak performance. However, the relatively modest seasonal variation means that solar installations will maintain productive output throughout the entire year, making this location excellent for consistent renewable energy generation.

Environmental Factors and Mitigation Strategies

Several environmental factors could potentially impact solar production at this tropical location:

• Heavy rainfall and storms: The wet season brings intense precipitation that can reduce solar irradiance and potentially damage equipment
• High humidity: Tropical humidity levels may affect panel efficiency and increase corrosion risks
• Dust and debris: During dry periods, dust accumulation on panels can significantly reduce energy output
• Vegetation growth: The tropical climate promotes rapid plant growth that could create shading issues

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies should be implemented:

• Robust mounting systems: Use corrosion-resistant materials and secure mounting to withstand heavy rains and potential storm conditions
• Proper drainage: Ensure adequate water runoff from panel surfaces and mounting structures
• Regular maintenance scheduling: Implement frequent cleaning protocols, especially during dry seasons when dust accumulation peaks
• Strategic placement: Position panels away from areas with rapid vegetation growth and maintain clear sight lines to prevent shading
• Quality sealing: Use high-grade weatherproofing for all electrical connections to protect against humidity and moisture infiltration

Despite these considerations, Dom Joaquim's consistent tropical sunlight and strong year-round solar production figures make it an excellent location for solar PV installations when proper planning and maintenance protocols are followed.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

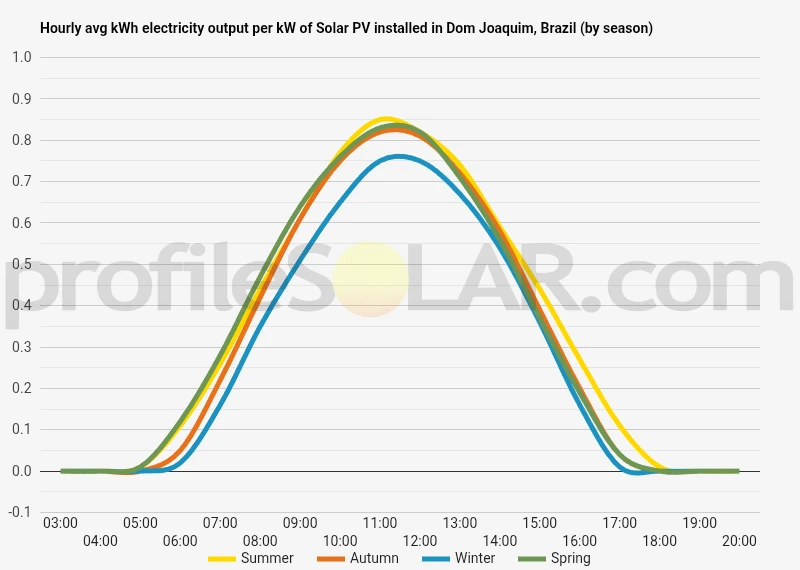

Solar output per kW of installed solar PV by season in Dom Joaquim

Seasonal solar PV output for Latitude: -18.9293, Longitude: -43.266 (Dom Joaquim, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 18° North in Dom Joaquim, Brazil

To maximize your solar PV system's energy output in Dom Joaquim, Brazil (Lat/Long -18.9293, -43.266) throughout the year, you should tilt your panels at an angle of 18° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Dom Joaquim, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Dom Joaquim, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 18° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
3° North in Summer	25° North in Autumn	34° North in Winter	13° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Dom Joaquim, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Dom Joaquim, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Dom Joaquim, Brazil

Topographical Features of Dom Joaquim Region

Dom Joaquim is situated in the southeastern region of Minas Gerais, Brazil, within a landscape characterized by rolling hills and elevated plateaus typical of the Brazilian Highlands. The terrain around this municipality features a mix of gentle slopes and moderately steep hillsides, with elevations generally ranging from 800 to 1,200 meters above sea level. This area forms part of the broader Serra do Espinhaço mountain range system, which creates a distinctive topographical pattern of ridges and valleys running primarily in a north-south direction.

The local topography is dominated by weathered crystalline rocks and sedimentary formations that have been shaped by millions of years of erosion. These geological processes have created a landscape of rounded hills and broad valleys, interspersed with occasional steeper escarpments where more resistant rock formations have withstood weathering. The region's drainage patterns follow the natural contours of the land, with numerous small streams and seasonal watercourses flowing through the valleys toward larger river systems.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations in the Dom Joaquim area would be the extensive plateau areas and gentle south-facing slopes that characterize much of the regional landscape. These elevated flat to gently rolling areas provide several advantages for solar development, including stable ground conditions, good drainage, and minimal shading from surrounding terrain features.

The broad valley floors and lower hillsides with gradual gradients would also present excellent opportunities for solar farms, particularly where the land has been previously cleared for agricultural use. These areas typically offer easier access for construction and maintenance equipment while providing sufficient space for large arrays of solar panels. The relatively open nature of much of the landscape means that solar installations would face minimal obstruction from surrounding topographical features.

Areas to avoid for solar development would include the steeper hillsides and ridge crests where slope stability could be a concern, as well as narrow valleys or areas prone to seasonal flooding. The rocky outcrops and areas with very thin soil cover that occur sporadically throughout the region would also present challenges for large-scale installations due to difficult foundation conditions and potential access limitations.

The existing agricultural landscape in many parts of the Dom Joaquim region has already been cleared and leveled to some degree, making these areas particularly attractive for solar development. The combination of favorable topography, cleared land, and the region's position on elevated plateaus creates ideal conditions for capturing solar energy while minimizing the environmental and engineering challenges associated with more complex terrain.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
