Doutor Ricardo, Rio Grande do Sul, Brazil presents a moderately favorable location for year-round solar PV energy generation, though with notable seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The location experiences significant seasonal fluctuations in solar energy production. Summer delivers the strongest performance at 7.26 kWh per day per kW of installed capacity, making it the optimal season for solar generation. Spring follows as the second-best period with 5.80 kWh per day per kW, while autumn drops to 4.62 kWh per day per kW. Winter presents the most challenging conditions, producing only 3.24 kWh per day per kW of installed solar capacity. This seasonal pattern is typical for locations in the Southern Sub Tropics, where winter months coincide with the sun being at its lowest angle and shortest daylight periods. The nearly 2.25:1 ratio between summer and winter production means that energy storage or grid-tie systems become particularly important for maintaining consistent power supply throughout the year.

Optimal Installation Configuration

For maximum year-round energy production at Doutor Ricardo, Rio Grande do Sul, solar panels should be installed at a fixed tilt angle of 25 degrees facing north. This angle has been calculated to optimize total annual solar output by accounting for the sun's varying elevation throughout the year and weighting these angles based on actual solar irradiance data.

Environmental and Weather Considerations

Several local factors could potentially impact solar production efficiency at this Southern Sub Tropical location:

• Humidity and moisture: The sub-tropical climate typically brings higher humidity levels, which can reduce solar panel efficiency and create more frequent condensation on panel surfaces
• Seasonal weather patterns: Winter months may experience increased cloud cover and precipitation, contributing to the significantly lower winter energy output
• Temperature effects: While solar panels need sunlight, excessive heat can actually reduce their efficiency, potentially affecting peak summer performance
• Atmospheric haze: Sub-tropical locations often experience atmospheric moisture that can scatter and reduce direct solar radiation

Preventative Measures for Enhanced Performance

To maximize solar energy production despite these environmental challenges, several installation strategies should be considered:

• Adequate ventilation: Install panels with proper spacing and airflow underneath to prevent overheating and improve efficiency
• Quality mounting systems: Use corrosion-resistant materials designed for humid climates to ensure long-term structural integrity
• Regular maintenance scheduling: Plan for more frequent cleaning during humid seasons when dust and organic matter may accumulate more readily on panel surfaces
• Drainage considerations: Ensure proper water drainage around the installation area to prevent standing water that could create humidity issues or structural problems

The location's moderate-to-good solar potential, combined with proper installation techniques and maintenance practices, can still provide reliable renewable energy generation throughout the year, though energy storage solutions may be particularly valuable to compensate for the lower winter production periods.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

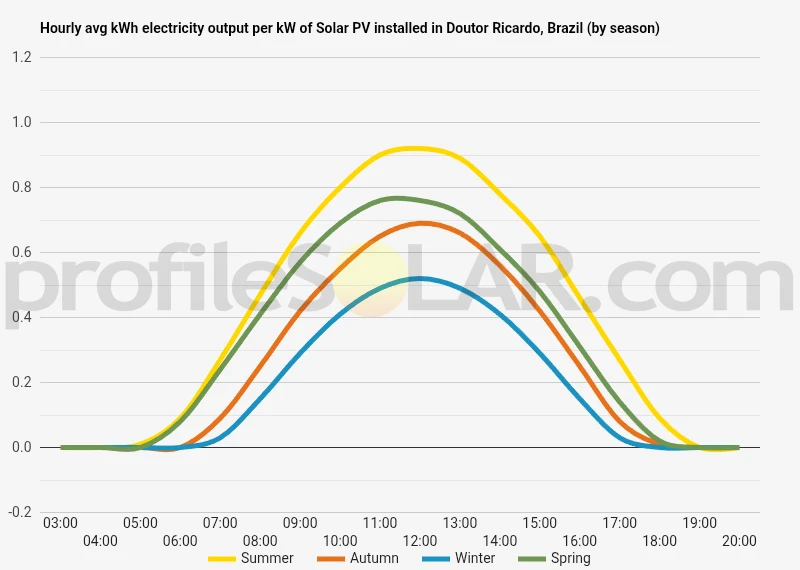

Solar output per kW of installed solar PV by season in Doutor Ricardo

Seasonal solar PV output for Latitude: -29.1012, Longitude: -51.9744 (Doutor Ricardo, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° North in Doutor Ricardo, Brazil

To maximize your solar PV system's energy output in Doutor Ricardo, Brazil (Lat/Long -29.1012, -51.9744) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Doutor Ricardo, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Doutor Ricardo, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° North in Summer	34° North in Autumn	44° North in Winter	22° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Doutor Ricardo, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Doutor Ricardo, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Doutor Ricardo, Brazil

Topographical Features of the Doutor Ricardo Region

Doutor Ricardo sits within the southern Brazilian state of Rio Grande do Sul, positioned in a landscape characterized by gently rolling hills and undulating terrain typical of the Serra Gaúcha foothills. The area forms part of the broader Atlantic Plateau region, where elevations gradually rise from the coastal plains toward the interior highlands. The topography consists primarily of moderate slopes and rounded hilltops, interspersed with shallow valleys that have been carved by centuries of water erosion.

The terrain around Doutor Ricardo displays the characteristic features of the southern Brazilian uplands, with elevations ranging from approximately 400 to 800 meters above sea level. The landscape is dominated by sedimentary rock formations covered by fertile soils, creating a patchwork of agricultural fields, pastureland, and remnant Atlantic Forest vegetation. Small streams and tributaries flow through the valleys, eventually feeding into larger river systems that drain toward the Atlantic Ocean.

The rolling nature of the terrain means that while there are no dramatic elevation changes or steep mountain faces, the land rarely presents completely flat expanses. Instead, the topography consists of gentle rises and dips, with ridge lines running roughly northeast to southwest following the geological grain of the underlying rock formations. This undulating character is punctuated by occasional steeper slopes where streams have cut deeper channels through the landscape.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations in the Doutor Ricardo vicinity would be the broader hilltops and gently sloping ridge areas that face northward. These elevated positions offer several advantages, including reduced shading from surrounding terrain and better air circulation that helps maintain optimal panel temperatures. The north-facing slopes are particularly valuable in the Southern Hemisphere, as they receive the most direct solar exposure throughout the day.

The wider valley floors and plateau areas also present excellent opportunities for solar development, especially where the terrain has been cleared for agricultural use. These flatter sections require minimal grading and earthwork, reducing installation costs while providing stable foundations for mounting systems. Areas that have been previously used for cattle grazing or crop cultivation are often ideal, as they typically have good access roads and existing electrical infrastructure nearby.

Ridge lines running east-west would be particularly well-suited for solar installations, as they provide natural platforms with good southern exposure and minimal shadowing from adjacent terrain features. The moderate elevations common in this region also offer advantages in terms of reduced atmospheric interference and improved solar panel efficiency due to cooler ambient temperatures at higher altitudes.

Areas to avoid would include the steeper valley sides and narrow drainage channels where irregular terrain would complicate installation and maintenance access. Additionally, locations with significant tree cover or those designated as environmental preservation areas would not be suitable for development. The ideal sites combine gentle topography, existing cleared land, proximity to electrical transmission infrastructure, and good road access for construction and ongoing maintenance activities.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
