Solar Energy Potential in Dracena, São Paulo, Brazil

Dracena, São Paulo, Brazil offers a promising location for solar PV energy generation with consistent sunlight throughout the year. Located in the tropics at latitude -21.5797 and longitude -51.6004, this region experiences weather patterns characterized more by wet and dry seasons rather than the traditional four seasons seen in temperate climates. Solar energy production in Dracena varies seasonally, with the highest output occurring during summer months when panels can generate approximately 6.97kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 6.36kWh/day, while autumn yields 5.82kWh/day. Winter shows the lowest production at 4.88kWh/day, though this figure remains relatively strong compared to many non-tropical locations worldwide.

Optimal Panel Installation

For fixed solar panel installations in Dracena, São Paulo, the ideal tilt angle to maximize year-round energy production is 20 degrees facing North. This specific angle optimizes solar capture throughout the year by accounting for the sun's changing position in the sky and the earth's elliptical orbit. The relatively small seasonal variation in production (only about 30% difference between winter and summer) makes this location suitable for year-round solar energy generation without the dramatic drops in winter production seen in locations further from the equator.

Environmental Considerations

Several environmental factors could potentially impact solar production in Dracena:

• Seasonal rainfall patterns during the wet season may reduce solar output due to cloud cover and rain
• Dust accumulation during dry periods can diminish panel efficiency if not regularly cleaned
• High temperatures in summer months may slightly reduce panel efficiency

Preventative Measures

To maximize solar energy production in Dracena, São Paulo, several preventative measures can be implemented: Installing an automated cleaning system or establishing a regular manual cleaning schedule will help mitigate dust accumulation, particularly important during dry seasons. Selecting solar panels with good heat tolerance ratings is advisable, as high-temperature performance becomes significant in tropical climates. Additionally, incorporating a slight adjustment from the ideal 20-degree tilt might be considered to favor winter production if consistent year-round output is prioritized over maximum annual yield. A weather-resistant mounting system is also essential to withstand potential seasonal storms during the wet season. Overall, Dracena presents an excellent location for solar PV installation with strong year-round production potential and manageable environmental challenges that can be addressed through proper system design and maintenance.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

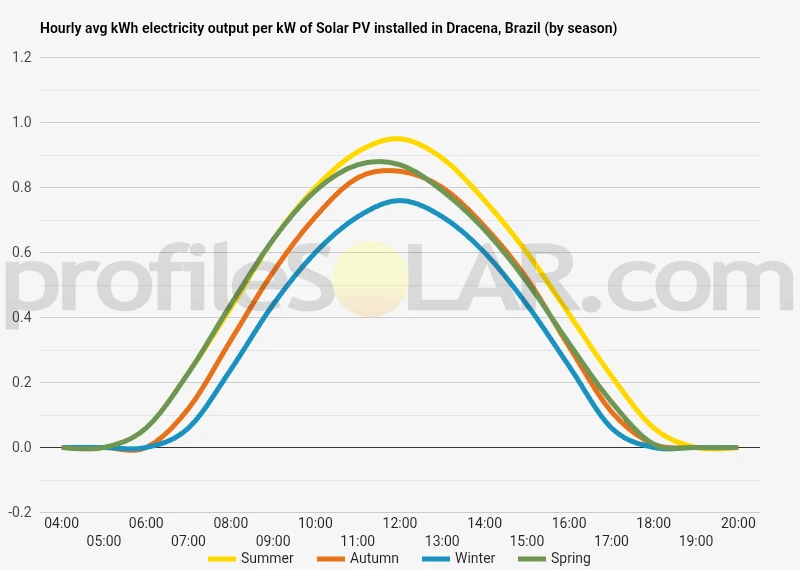

Solar output per kW of installed solar PV by season in Dracena

Seasonal solar PV output for Latitude: -21.5797, Longitude: -51.6004 (Dracena, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Dracena, Brazil

To maximize your solar PV system's energy output in Dracena, Brazil (Lat/Long -21.5797, -51.6004) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Dracena, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Dracena, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	27° North in Autumn	37° North in Winter	15° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Dracena, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Dracena, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Dracena, Brazil

The topography around Dracena, Brazil presents a varied landscape characterized primarily by gently rolling hills and plateaus typical of the western São Paulo state region. Situated in the Planalto Ocidental Paulista (Western São Paulo Plateau), Dracena sits at approximately 400 meters above sea level, with the surrounding terrain featuring modest elevation changes rather than dramatic topographical features. The area exhibits a predominantly rural character with agricultural lands stretching across the undulating terrain. The landscape has been significantly modified by human activity, with natural vegetation having been largely replaced by farming operations, particularly sugar cane plantations, pastures, and various crop fields. Some patches of Atlantic Forest remnants can still be found scattered throughout the region, particularly along watercourses.

Hydrography and Drainage

The region around Dracena belongs to the Paraná River basin, with several smaller rivers and streams flowing through the area. The Rio do Peixe (Fish River) is one of the notable waterways in the vicinity. These watercourses have carved shallow valleys into the landscape over time, creating the characteristic rolling topography of the region.

Soil and Geological Features

The soils in the Dracena region are predominantly derived from sandstone and basalt formations. These soils vary from sandy to clay-rich, with the reddish soils (terra roxa) being particularly notable and valuable for agricultural purposes. The underlying geological structure consists mainly of sedimentary and volcanic rocks from the Bauru and Serra Geral formations, part of the larger Paraná Basin.

Solar PV Suitability Analysis

For large-scale solar photovoltaic installations, several factors make certain areas around Dracena particularly suitable. The gently sloping terrain to the north and northwest of Dracena offers ideal conditions for solar farm development. These areas combine favorable topographical features with other essential requirements for effective solar energy capture. The relatively flat plateaus found within approximately 30 kilometers of Dracena present minimal shading concerns and reduced costs for land preparation. These areas typically feature slopes of less than 5 degrees, which is optimal for solar panel installation without requiring extensive grading or specialized mounting systems. Agricultural lands that have been previously cleared, particularly those with degraded soils less suitable for high-value crops, represent prime opportunities for solar development. Such areas are abundant in the northwestern quadrant extending from Dracena toward the municipalities of Tupi Paulista and Ouro Verde.

Topographical Constraints

Not all areas around Dracena are equally suitable for large-scale solar development. The more dissected terrain found in river valleys, particularly along the Rio do Peixe and its tributaries, presents challenges including increased shading, more complex installation requirements, and potential flooding concerns. These areas should generally be avoided for utility-scale solar projects. Additionally, the southeastern approaches to Dracena feature more pronounced relief with steeper slopes that would increase construction costs and potentially cause drainage issues during the rainy season. These areas would require more substantial earthwork to prepare for solar installations, potentially impacting the economic viability of projects.

Access Considerations

The topography also influences accessibility, an important factor for solar development. The relatively gentle terrain throughout much of the region allows for good road connectivity, with the SP-294 highway providing a major transportation corridor. Areas within 5-10 kilometers of this highway benefit from the existing infrastructure while still offering the extensive land areas required for utility-scale solar development. The combination of favorable topography, existing cleared land, and reasonable proximity to transportation and transmission infrastructure makes the northern and northwestern environs of Dracena particularly promising for solar PV development, with thousands of hectares potentially available for such purposes.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
