Solar Energy Potential in Duas Barras, Rio de Janeiro, Brazil

Duas Barras, Rio de Janeiro, Brazil offers a promising location for solar PV energy generation, with consistent but seasonally variable solar output throughout the year. This tropical location experiences relatively reliable sunlight patterns, though with notable differences between seasons. The seasonal solar production shows a clear pattern, with summer being the most productive period at 6.39kWh per day for each kilowatt of installed capacity. This gradually decreases through autumn (5.19kWh/day) and reaches its lowest point in winter at 4.24kWh/day, before beginning to recover in spring with 4.90kWh/day per installed kilowatt.

Optimal Panel Installation

For maximizing year-round solar energy production in Duas Barras, Rio de Janeiro, fixed solar panels should be installed at a 20-degree tilt facing North. This specific angle has been calculated to capture the optimal amount of sunlight throughout the year, accounting for the location's position in the Southern Hemisphere and seasonal sun path variations.

Seasonal Considerations

The substantial difference between summer and winter production (approximately 33% reduction in winter compared to summer) suggests that system sizing should account for these seasonal variations. While the location benefits from being in the tropics with relatively consistent sunlight year-round, the winter months will produce noticeably less energy.

Environmental and Weather Factors

Several factors may affect solar production in Duas Barras:

• Rainfall patterns: Being in a tropical region, Duas Barras likely experiences a wet season that could reduce solar output due to cloud cover. Installing panels at the optimal 20-degree tilt helps with water runoff and self-cleaning.
• Dust and pollen: Agricultural activities in the region may generate dust that can accumulate on panels. Regular cleaning maintenance, particularly before and after dry seasons, can help maintain efficiency.
• Humidity: High humidity levels can slightly reduce panel efficiency and potentially accelerate degradation of electrical components. Using humidity-resistant components and ensuring proper ventilation behind panels can mitigate these effects.

To maximize production despite these factors, installations should include quality inverters with high efficiency ratings, regular maintenance schedules, and possibly automated cleaning systems in larger installations. The relatively consistent year-round production still makes Duas Barras a viable location for solar energy, with proper system sizing to account for the winter production dip.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

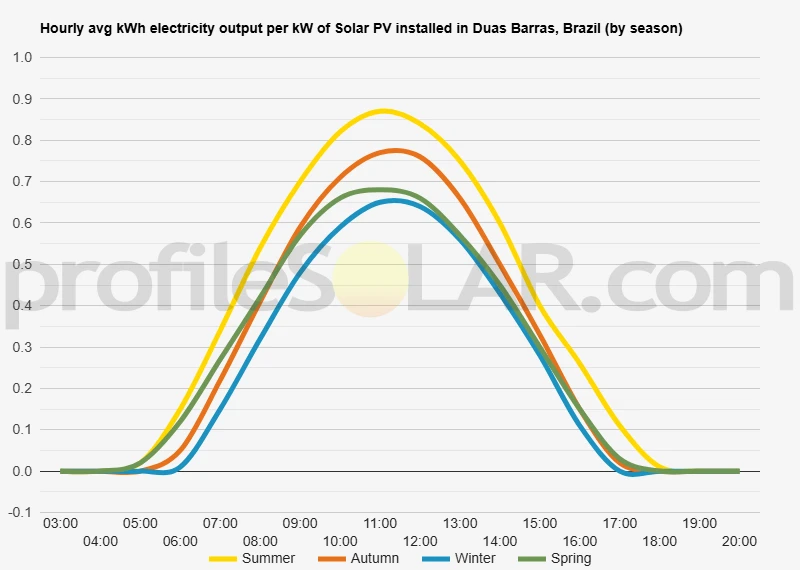

Solar output per kW of installed solar PV by season in Duas Barras

Seasonal solar PV output for Latitude: -22.0735, Longitude: -42.5289 (Duas Barras, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Duas Barras, Brazil

To maximize your solar PV system's energy output in Duas Barras, Brazil (Lat/Long -22.0735, -42.5289) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Duas Barras, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Duas Barras, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	27° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Duas Barras, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Duas Barras, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Duas Barras, Brazil

Duas Barras is situated in a mountainous region of the state of Rio de Janeiro, Brazil. The terrain around Duas Barras is characterized by rolling hills, valleys, and significant elevation changes typical of Brazil's Atlantic Forest region. The topography forms part of the Serra do Mar mountain range, with elevations in the area typically ranging from approximately 500 to 1,000 meters above sea level. The landscape features a combination of steep slopes and gentler hillsides, with numerous small rivers and streams cutting through the valleys. This varied terrain creates a patchwork of different microclimates and ecological zones. The natural vegetation consists of Atlantic Forest remnants interspersed with agricultural lands, primarily cattle pastures and some crop cultivation.

Solar PV Potential Areas

For large-scale solar photovoltaic installations, the most suitable areas near Duas Barras would be the gently sloping hillsides and plateaus that face northward (in the Southern Hemisphere, north-facing slopes receive more direct sunlight). Several specific areas around Duas Barras show promise for solar development: The more level terrain to the northeast of the town presents favorable conditions, where some plateaus offer sufficient flat space for extensive panel arrays. These areas typically have less forest cover and are already partially used for agriculture, minimizing the environmental impact of conversion to solar farms. South and southwest of Duas Barras, where the terrain becomes slightly less rugged, there are also potential sites for solar development. These areas benefit from good solar exposure while avoiding the steepest slopes of the region. The challenges for solar PV development in this region include the generally uneven terrain, which can increase installation costs, and the scattered forest coverage, which raises environmental considerations. Additionally, the region experiences a rainy season, though this does not significantly diminish the overall solar potential. The ideal locations would combine relatively flat terrain (or gentle, consistent slopes), proximity to existing electrical infrastructure, minimal forest cover, and good road access. Several former agricultural areas that have experienced soil degradation could be particularly appropriate for solar conversion, offering an environmentally positive land use alternative while avoiding further deforestation.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
