Duque de Caxias, Brazil, offers a promising location for solar energy generation throughout the year. Situated in the tropics, this area benefits from consistent sunlight and experiences seasons primarily characterized by wet and dry periods rather than significant temperature fluctuations.

Seasonal Solar Performance

The solar energy potential in Duque de Caxias varies across seasons, with summer being the most productive period. During summer months, a solar PV system can generate an impressive 6.34 kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season, yielding 4.98 kWh/day/kW.

Autumn sees a slight decrease in energy production, with an average output of 5.19 kWh/day/kW. Winter, while still offering decent solar potential, is the least productive season, generating 4.23 kWh/day/kW.

Optimal Panel Positioning

To maximize year-round solar energy production in Duque de Caxias, fixed solar panels should be tilted at an angle of 21 degrees facing North. This orientation ensures optimal exposure to sunlight throughout the year, taking into account the location's latitude and the Earth's elliptical orbit.

Environmental Considerations

While Duque de Caxias presents favorable conditions for solar energy production, there are some environmental factors to consider:

• Rainfall: The region experiences a wet season, which could temporarily reduce solar panel efficiency due to cloud cover.
• Air pollution: Being an industrial area, Duque de Caxias may face air quality issues that could slightly impact solar panel performance.

Preventative Measures

To mitigate these potential challenges and ensure optimal energy production, consider implementing the following measures:

Install a reliable cleaning system or schedule regular manual cleaning to remove dust and pollutants from the panels. Use high-quality, weather-resistant solar panels that can withstand local climate conditions. Consider adding a tracking system to adjust panel angles throughout the day, maximizing sun exposure and potentially increasing energy yield by up to 25%.

Overall, Duque de Caxias presents a favorable location for solar energy production, with consistent sunlight throughout the year and manageable environmental challenges that can be addressed through proper installation and maintenance practices.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

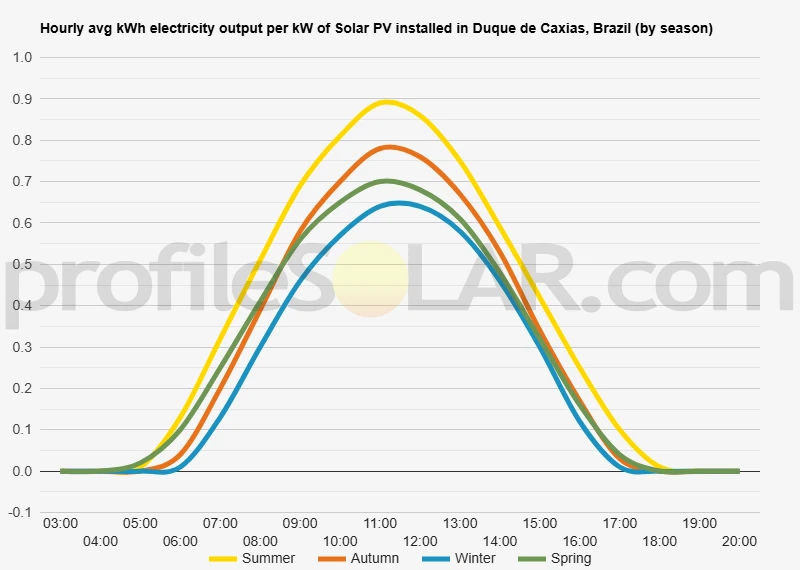

Solar output per kW of installed solar PV by season in Duque De Caxias

Seasonal solar PV output for Latitude: -22.7886, Longitude: -43.3175 (Duque De Caxias, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Duque De Caxias, Brazil

To maximize your solar PV system's energy output in Duque De Caxias, Brazil (Lat/Long -22.7886, -43.3175) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Duque De Caxias, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Duque De Caxias, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	28° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Duque De Caxias, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Duque De Caxias, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Duque De Caxias, Brazil

The topography around Duque de Caxias, Brazil, is characterized by a diverse landscape that combines coastal lowlands, rolling hills, and mountainous terrain. Located in the state of Rio de Janeiro, this area sits at the edge of Guanabara Bay, with the city itself nestled in a relatively flat region surrounded by more elevated terrain. To the north and west of Duque de Caxias, the land gradually rises into the foothills of the Serra do Mar mountain range. These hills become progressively steeper and more rugged as one moves further inland. The eastern part of the region, closer to the coast, features expansive lowlands that were once dominated by mangrove swamps and marshes, though much of this area has been urbanized and developed over time. The southern portion of Duque de Caxias borders the northern outskirts of Rio de Janeiro city, where the terrain becomes more varied, with a mix of densely populated urban areas and pockets of preserved Atlantic Forest covering steeper slopes.

Areas Suitable for Large-scale Solar PV

When considering locations for large-scale solar photovoltaic (PV) installations near Duque de Caxias, several factors come into play, including available land, sunlight exposure, and proximity to existing infrastructure. The most suitable areas for such projects would likely be found in the following regions: The northern outskirts of Duque de Caxias, where the terrain begins to rise, offer potential sites for solar farms. These areas generally have less urban development and may provide the necessary space for large installations. The gentle slopes in this region could also be advantageous, as they may receive more consistent sunlight throughout the day compared to completely flat terrain. The lowlands to the east of the city, particularly in less developed zones, could be suitable for solar PV projects. These areas tend to be flatter, which simplifies construction and maintenance of solar arrays. However, care must be taken to avoid flood-prone areas or regions with high water tables. Some of the cleared or sparsely vegetated hillsides to the northwest of Duque de Caxias might also be considered for solar installations. While steeper terrain can present challenges, south-facing slopes in the Southern Hemisphere can actually be ideal for maximizing solar exposure. It's important to note that any large-scale solar project would need to carefully balance environmental concerns, land use regulations, and the need to preserve remaining natural habitats. Additionally, proximity to existing electrical infrastructure and the local power grid would be crucial factors in determining the most economically viable locations for solar PV installations in this region.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
