Encantado, Rio Grande do Sul, Brazil presents a moderately good location for year-round solar energy generation, though with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this Southern Sub Tropics location shows typical patterns for the southern hemisphere. Summer delivers the strongest performance at 7.26kWh per day per kW of installed capacity, making it an excellent time for solar generation. Spring follows as the second-best season with 5.80kWh per day per kW, while autumn drops to 4.62kWh per day per kW. Winter presents the most challenging conditions with only 3.24kWh per day per kW of installed solar capacity. This seasonal variation means that summer and spring are the ideal times for solar generation at Encantado, Rio Grande do Sul, producing nearly twice as much energy as the winter months. The annual average performance falls within acceptable ranges for solar investment, though the winter dip is quite pronounced.

Optimal Panel Installation

For fixed panel installations at this location, the ideal tilt angle is 25 degrees facing North to maximize total year-round solar production. This angle has been calculated to optimize energy capture across all seasons by accounting for the sun's changing position throughout the year and weighting for actual solar irradiance data.

Environmental and Weather Challenges

Several local factors in the Encantado region can significantly impact solar energy production:

• Humidity and moisture: The subtropical climate brings high humidity levels that can reduce panel efficiency and promote corrosion of electrical components
• Seasonal rainfall: Heavy rains during certain periods can reduce solar irradiance and create soiling issues on panel surfaces
• Temperature fluctuations: Significant seasonal temperature variations can affect panel efficiency and cause thermal stress on mounting systems
• Atmospheric haze: Subtropical regions often experience atmospheric moisture that can scatter sunlight and reduce direct solar radiation

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several installation strategies should be implemented. Choose panels and electrical components specifically rated for high-humidity environments with appropriate IP ratings and corrosion-resistant materials. Install panels with adequate spacing and ventilation to prevent overheating and allow proper airflow underneath. Implement a regular cleaning schedule to remove accumulated dirt, pollen, and debris that can significantly reduce panel efficiency, especially after rainy periods. Use mounting systems made from marine-grade aluminum or galvanized steel to withstand the humid conditions without degrading over time. Consider installing monitoring systems that can detect performance drops due to soiling or equipment issues. Proper grounding and surge protection become especially important in areas prone to thunderstorms, which are common in subtropical climates. Finally, ensure all electrical connections are sealed and weatherproofed to prevent moisture infiltration that could cause system failures or safety hazards.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

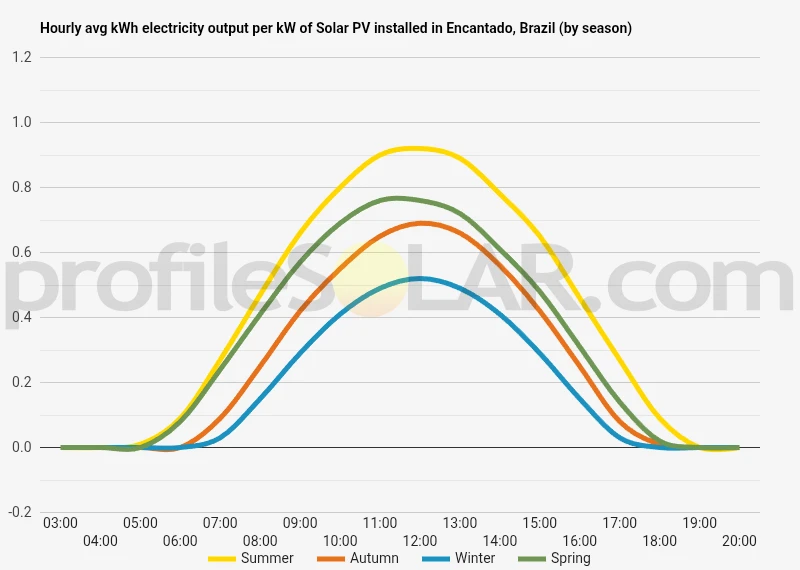

Solar output per kW of installed solar PV by season in Encantado

Seasonal solar PV output for Latitude: -29.1969, Longitude: -51.923 (Encantado, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° North in Encantado, Brazil

To maximize your solar PV system's energy output in Encantado, Brazil (Lat/Long -29.1969, -51.923) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Encantado, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Encantado, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° North in Summer	35° North in Autumn	44° North in Winter	22° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Encantado, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Encantado, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Encantado, Brazil

Topographical Features Around Encantado

Encantado sits within the rolling hills and river valleys characteristic of Rio Grande do Sul's central region. The landscape around this Brazilian municipality features gentle undulations and moderate elevation changes, with the terrain gradually rising and falling across the area. The Taquari River flows nearby, creating natural drainage patterns that have shaped the local topography over millennia.

The region displays a mix of agricultural lands, pastures, and scattered woodlands typical of the Serra Gaúcha foothills. Elevation changes are generally modest, with most areas ranging from gentle slopes to relatively flat terrain. The soil composition includes both fertile alluvial deposits near waterways and well-drained upland areas that support various forms of agriculture.

Natural vegetation consists primarily of mixed grasslands interspersed with gallery forests along watercourses. The topography creates a patchwork of different microclimates and soil conditions, contributing to the area's agricultural diversity. Small hills and ridges provide natural boundaries between different land uses, while valleys often contain more intensive farming operations.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be the elevated plateaus and gentle south-facing slopes found throughout the region. These areas typically offer excellent exposure to sunlight while maintaining relatively stable ground conditions for large-scale construction projects. The higher elevations also tend to have fewer competing land uses and may be less valuable for intensive agriculture.

Flat to gently sloping agricultural land presents another excellent opportunity for solar development, particularly areas currently used for extensive cattle grazing or less productive crop cultivation. These locations often have existing road access and electrical infrastructure, which significantly reduces development costs and complexity.

The ridge lines and hilltops scattered throughout the area would be particularly well-suited for solar installations, as they typically receive unobstructed sunlight throughout the day and have minimal shading from surrounding terrain features. These elevated positions also tend to have better wind circulation, which helps maintain optimal panel temperatures and efficiency.

Areas to avoid would include the steeper valley slopes, which may present construction challenges and potential shading issues, as well as the immediate floodplains near the Taquari River and its tributaries. The most productive agricultural lands, particularly those used for intensive crop production, would also be less suitable due to competing economic uses and potential community resistance to land use changes.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
