Engenheiro Caldas, Minas Gerais, Brazil represents a highly favorable location for year-round solar photovoltaic energy generation. Located in the tropics at coordinates -19.1135, -42.0179, this region benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than dramatic changes in solar availability.

Solar Energy Production Potential

The solar energy output data for Engenheiro Caldas demonstrates excellent year-round performance. Summer months deliver the highest production at 5.97 kWh per day per kW of installed solar capacity, making this the peak season for solar generation. Spring follows as the second-best performing season with 5.18 kWh/day per kW, while autumn maintains strong output at 5.51 kWh/day per kW. Winter represents the lowest production period at 4.47 kWh/day per kW, but even this reduced output remains quite substantial compared to many other global locations. The relatively modest seasonal variation indicates reliable solar energy generation throughout the entire year. For optimal performance, solar panels should be installed at a fixed tilt angle of 18 degrees facing north. This angle has been calculated to maximize total year-round solar production by accounting for the sun's elevation angles throughout the year, weighted by solar irradiance data and Earth's elliptical orbit patterns.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production in Engenheiro Caldas, Minas Gerais, though the location remains highly suitable overall. The tropical climate brings distinct wet and dry seasons, with the wet season potentially reducing solar output through increased cloud cover and frequent rainfall. Heavy rains during wet periods can temporarily block sunlight and reduce panel efficiency. However, rainfall also provides a natural cleaning mechanism for solar panels, washing away accumulated dust and debris. Humidity levels in tropical regions can be consistently high, which may lead to faster degradation of electrical components if not properly protected. High humidity can also contribute to condensation issues within panel junction boxes and inverters. Dust accumulation during dry seasons represents another challenge, as particles can build up on panel surfaces and reduce light transmission. This is particularly relevant during extended dry periods when natural rainfall cleaning is reduced.

Preventative Measures for Optimal Performance

Several installation strategies can help maximize solar energy production despite these environmental challenges:

• Install panels with adequate ventilation space underneath to promote air circulation and reduce heat buildup
• Use high-quality, humidity-resistant electrical components and ensure proper sealing of all connections
• Implement a regular cleaning schedule during dry seasons to remove dust accumulation
• Consider installing panels at the optimal 18-degree tilt to promote natural water runoff during rainy periods
• Use corrosion-resistant mounting hardware suitable for tropical climates

Despite these considerations, Engenheiro Caldas remains an excellent location for solar energy generation. The consistent tropical sunlight and relatively minor seasonal variations make it well-suited for reliable renewable energy production throughout the year. With proper installation techniques and minimal maintenance, solar installations in this location can achieve strong performance and provide dependable clean energy.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

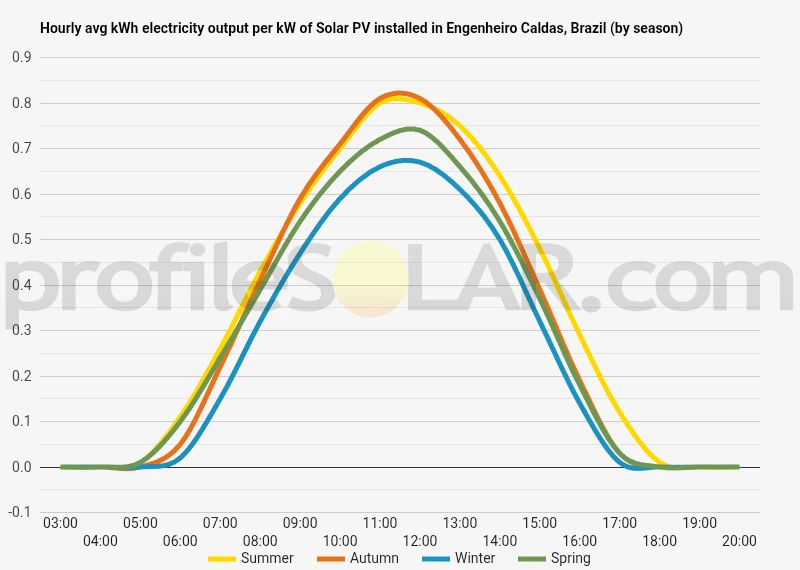

Solar output per kW of installed solar PV by season in Engenheiro Caldas

Seasonal solar PV output for Latitude: -19.1135, Longitude: -42.0179 (Engenheiro Caldas, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 18° North in Engenheiro Caldas, Brazil

To maximize your solar PV system's energy output in Engenheiro Caldas, Brazil (Lat/Long -19.1135, -42.0179) throughout the year, you should tilt your panels at an angle of 18° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Engenheiro Caldas, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Engenheiro Caldas, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 18° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
3° North in Summer	25° North in Autumn	35° North in Winter	13° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Engenheiro Caldas, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Engenheiro Caldas, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Engenheiro Caldas, Brazil

Topographical Features of Engenheiro Caldas

Engenheiro Caldas sits within the southeastern Brazilian highlands, positioned in a region characterized by rolling hills and moderate elevation changes typical of Minas Gerais state. The terrain around this municipality features a mix of gentle slopes and more pronounced ridgelines that form part of the broader Serra do Espinhaço mountain system's southern extensions. The landscape transitions between areas of relatively flat agricultural land and steeper hillsides covered with remnant Atlantic Forest vegetation. The local topography includes several small valleys carved by seasonal streams and tributaries that eventually feed into larger river systems. These waterways have created a somewhat dissected landscape with alternating ridges and depressions. The elevation varies considerably across the region, with some areas sitting on elevated plateaus while others occupy lower-lying valley floors. This varied terrain creates distinct microclimates and different exposure angles to sunlight throughout the day. Rock outcrops and exposed granite formations appear scattered across the landscape, particularly on steeper slopes and ridge tops. The underlying geology consists primarily of crystalline rocks from the Brazilian Shield, which has weathered over millions of years to create the current undulating terrain. Soil depths vary significantly depending on slope position, with deeper soils accumulating in valley bottoms and thinner soils on ridge crests.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be the elevated plateau areas and gentle south-facing slopes that dominate the eastern and southeastern portions of the region. These areas offer relatively stable terrain with minimal grading requirements and excellent exposure to solar radiation throughout most of the day. The plateau surfaces provide large contiguous areas that could accommodate substantial solar arrays without significant earthwork or terrain modification. Ridge-top locations present another attractive option for solar development, particularly those running in east-west orientations. These elevated positions benefit from reduced atmospheric interference and minimal shading from surrounding terrain features. The consistent wind patterns at higher elevations also help maintain optimal panel temperatures, improving overall system efficiency. Areas with gentle northern slopes should generally be avoided for large installations, as they receive less direct solar exposure in the Southern Hemisphere. Similarly, the deeper valley floors, while offering flat terrain, may experience morning and evening shading from surrounding hills that could reduce energy production. The rocky outcrops and steeper hillsides present installation challenges and would require significant site preparation costs. The transitional zones between valleys and ridges often provide the best compromise between accessible terrain and good solar exposure. These areas typically have moderate slopes that can be easily developed while still maintaining favorable orientation toward the sun. Agricultural lands on these transitional slopes may also offer easier permitting processes and existing access infrastructure that could reduce development costs.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
