Solar Energy Potential in Erechim, Rio Grande do Sul, Brazil

Erechim, Rio Grande do Sul, Brazil, located in the Southern Sub Tropics at latitude -27.6769 and longitude -52.2594, offers generally favorable conditions for solar PV installations throughout the year, though with notable seasonal variations. The location experiences its peak solar production during the summer months, with a substantial decline during winter. The seasonal production pattern shows that for each kilowatt of installed solar capacity, Erechim generates 7.26 kWh per day during summer, representing the annual peak. This drops to 5.05 kWh per day in autumn, before reaching the annual low of 3.73 kWh per day in winter. Production recovers significantly in spring to 5.99 kWh per day.

Optimal Panel Installation

For fixed solar panel installations in Erechim, Rio Grande do Sul, the ideal tilt angle to maximize year-round energy production is 24 degrees facing North. This specific angle has been calculated based on solar elevation patterns at this latitude and weighted according to the daily PV potential throughout the year.

Environmental and Weather Considerations

Several environmental factors could potentially affect solar production in Erechim. The region experiences a humid subtropical climate with occasional heavy rainfall that can temporarily reduce solar efficiency. During winter months, cloudy days are more frequent, contributing to the lower winter production figures. Preventative measures for solar installations in Erechim should include:

• Regular cleaning schedules to remove dust and debris, especially after the dry periods when dust accumulation is highest
• Installing panels with sufficient elevation to prevent shading from nearby vegetation, which grows rapidly in this fertile region
• Using high-quality inverters that perform well in variable light conditions to maximize production during partially cloudy days
• Considering drainage systems around ground-mounted installations to manage the region's substantial rainfall

With proper installation at the recommended 24-degree North tilt and appropriate maintenance, solar PV systems in Erechim can achieve good year-round performance, with summer offering exceptional production potential and winter requiring supplementary energy sources for consistent power needs.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

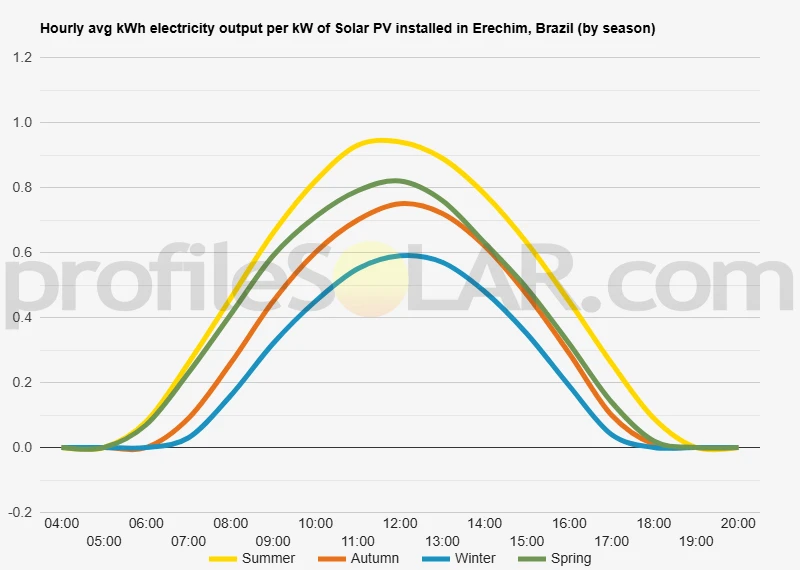

Solar output per kW of installed solar PV by season in Erechim

Seasonal solar PV output for Latitude: -27.6769, Longitude: -52.2594 (Erechim, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Erechim, Brazil

To maximize your solar PV system's energy output in Erechim, Brazil (Lat/Long -27.6769, -52.2594) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Erechim, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Erechim, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° North in Summer	33° North in Autumn	43° North in Winter	20° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Erechim, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Erechim, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Erechim, Brazil

Erechim, located in the northern part of Rio Grande do Sul state in Brazil, sits within a region characterized by a diverse and interesting topography. The city itself is positioned at an elevation of approximately 760-800 meters above sea level, making it one of the higher altitude urban areas in the state. The surrounding landscape features a mixture of rolling hills, plateaus, and valleys that create a visually striking environment. The region around Erechim is part of the southern Brazilian highlands, specifically within what is known as the Middle Plateau or "Planalto Médio." This area represents a transition zone between the higher northern plateaus and the lower southern plains. The topography was largely shaped by ancient volcanic activity and subsequent erosion processes, resulting in the undulating terrain visible today.

Topographical Features

The landscape surrounding Erechim is predominantly composed of gently rolling hills interspersed with occasional steeper slopes. These hills generally follow a northeast-southwest orientation, creating a series of ridges and valleys throughout the region. The elevation gradually decreases as one moves southward from Erechim toward the Uruguay River basin. Numerous small rivers and streams cut through the terrain, including the Passo Fundo River and its tributaries, which have carved valleys into the landscape over millennia. These waterways have created natural corridors through the hills and contribute to the region's fertility. The area also features patches of remaining Atlantic Forest (Mata Atlântica), particularly in steeper areas less suitable for agriculture. However, much of the natural vegetation has been cleared for agricultural purposes, with crops and pastureland now dominating much of the visible landscape.

Potential Areas for Solar PV Development

For large-scale solar photovoltaic development, several areas near Erechim present favorable conditions. The most suitable locations would be: The gently sloping plateaus to the east and northeast of Erechim offer excellent potential for solar installations. These areas feature relatively flat terrain at elevations between 700-800 meters, providing good solar exposure with minimal shadowing effects from surrounding topography. The reduced vegetation in these agricultural zones also means less clearing would be required for installation. The higher ridges running northwest to southeast approximately 15-20 kilometers from the city center present another promising option. These elevated areas receive excellent solar radiation and feature some of the flattest available terrain in the region, making construction and maintenance more straightforward. Areas south of Erechim, where the landscape begins to flatten toward the Uruguay River basin, also offer good potential. While slightly lower in elevation (600-700 meters), these locations feature extensive open spaces with minimal topographical barriers to solar exposure. The western outskirts of the region, toward Getúlio Vargas, contain several plateaus with favorable conditions for solar development. These areas combine good elevation with relatively consistent terrain, reducing installation complexity. It's worth noting that while the rolling topography around Erechim creates some challenges for very large contiguous solar installations, it also offers advantages in terms of reduced wind exposure compared to completely flat regions. The moderate elevation also contributes to slightly cooler average temperatures compared to lower-lying areas of Brazil, which can improve photovoltaic efficiency.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
