Erval Seco, Rio Grande do Sul, Brazil presents a moderately good location for year-round solar energy generation, though with notable seasonal variations typical of its Southern Sub Tropics climate zone.

Seasonal Solar Performance

The solar energy output at this location shows significant seasonal fluctuation. Summer delivers the strongest performance at 7.33 kWh per day per kW of installed capacity, making it the prime season for solar generation. Spring follows as the second-best period with 6.01 kWh per day per kW, while autumn drops to 5.07 kWh per day per kW. Winter presents the most challenging conditions with only 3.74 kWh per day per kW of output. This seasonal pattern means that solar installations will generate nearly twice as much electricity in summer compared to winter months. The location experiences its best solar generation during the warmer months from October through March, with peak performance typically occurring during the summer season.

Optimal Panel Configuration

For fixed panel installations at Erval Seco, Rio Grande do Sul, the ideal tilt angle is 24 degrees facing North to maximize total year-round solar production. This angle has been calculated to optimize energy capture across all seasons by accounting for the sun's varying elevation throughout the year and weighting these angles according to actual solar irradiance potential.

Environmental and Weather Factors

Several local factors could potentially impact solar energy production at this Southern Sub Tropics location:

• High humidity levels typical of subtropical climates can reduce panel efficiency and create more frequent condensation on panel surfaces
• Intense summer rainfall and thunderstorms common to the region may temporarily reduce solar output and pose risks to equipment
• Dust and pollen accumulation during drier periods can create a film on panels that reduces light transmission
• Strong winds during storm seasons could potentially damage improperly secured installations

Preventative Measures for Better Performance

To maximize solar energy production despite these environmental challenges, several installation strategies should be considered:

• Install panels with adequate ventilation spacing underneath to improve cooling and reduce humidity-related efficiency losses
• Use high-quality mounting systems designed to withstand strong winds and severe weather typical of subtropical regions
• Implement regular cleaning schedules, particularly during dusty periods, or consider self-cleaning panel technologies
• Ensure proper drainage around installations to prevent water pooling during heavy rainfall periods
• Select panels and inverters with good high-temperature performance ratings suitable for subtropical conditions

Despite these considerations, Erval Seco's location offers reasonable solar potential, particularly during the peak generation months. The key to success lies in proper system design that accounts for local weather patterns and implementing appropriate maintenance practices to ensure consistent performance throughout the year.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

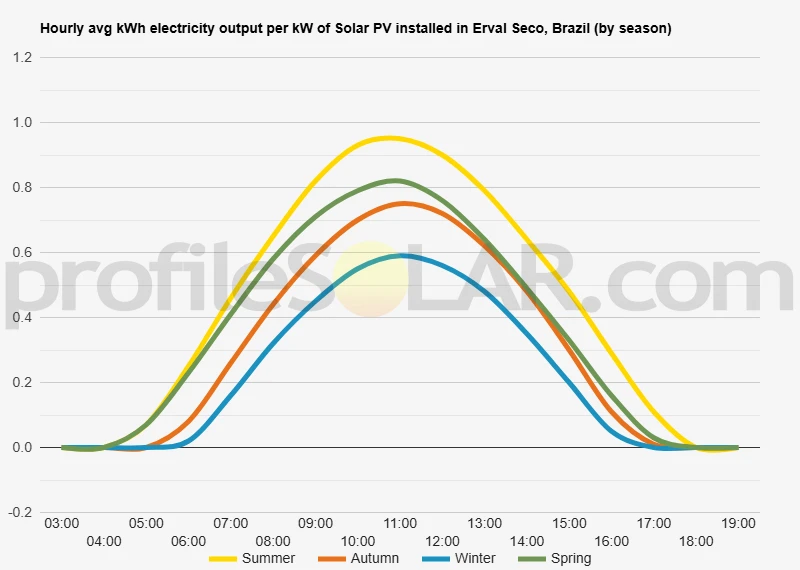

Solar output per kW of installed solar PV by season in Erval Seco

Seasonal solar PV output for Latitude: -27.4928, Longitude: -53.5256 (Erval Seco, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Erval Seco, Brazil

To maximize your solar PV system's energy output in Erval Seco, Brazil (Lat/Long -27.4928, -53.5256) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Erval Seco, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Erval Seco, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° North in Summer	33° North in Autumn	42° North in Winter	20° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Erval Seco, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Erval Seco, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Erval Seco, Brazil

Regional Topography

Erval Seco sits within the gently rolling landscape of Rio Grande do Sul's northwestern region, characterized by undulating terrain that forms part of the broader Southern Brazilian Plateau. The area features a series of low hills and shallow valleys, with elevations typically ranging between 400 and 600 meters above sea level. This terrain represents the transition zone between the higher elevations of the Serra Geral escarpment to the east and the flatter plains that extend toward Argentina and Uruguay. The topography around Erval Seco is predominantly composed of weathered volcanic rocks from ancient lava flows, creating fertile soils that support extensive agricultural activities. The landscape exhibits a characteristic pattern of gentle slopes interspersed with broader, flatter areas that were historically carved by river systems. These natural features create a mosaic of terrain types, from rolling pastureland to more level agricultural fields. Drainage patterns in the region follow the natural contours of the land, with small streams and seasonal watercourses flowing through the valleys between hills. The overall gradient trends westward toward the Uruguay River basin, creating a series of natural terraces and benches that vary in size and slope orientation.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations around Erval Seco would be the broader, flatter plateau areas that extend across the interfluves between major drainage systems. These elevated, relatively level surfaces offer several advantages including consistent terrain that minimizes grading requirements and reduces installation costs. The gentle nature of these areas also provides flexibility in panel orientation and spacing optimization. South-facing slopes with gradients between 5 and 15 degrees present excellent opportunities for solar development, as they naturally complement optimal panel positioning for this latitude. These areas are numerous throughout the region and often coincide with less intensive agricultural use, making land acquisition potentially more feasible. The flatter agricultural areas, particularly those currently used for extensive cattle grazing or grain production, represent prime candidates for solar development due to their minimal topographic constraints. These locations typically feature good access to existing road networks and electrical infrastructure, which are crucial considerations for large-scale installations. Areas to avoid would include the steeper valley sides and locations prone to seasonal flooding near watercourses. The more dissected terrain closer to major streams and rivers also presents challenges due to irregular topography that would complicate panel installation and maintenance access. The regional topography generally favors solar development, with the main considerations being the selection of appropriately sized flat or gently sloping areas that can accommodate the scale of installation desired while maintaining reasonable proximity to electrical grid connection points and transportation infrastructure.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
