Esteio, Rio Grande do Sul, Brazil, situated in the Southern Sub Tropics at latitude -29.8504 and longitude -51.1631, offers variable conditions for solar PV energy generation throughout the year. The location experiences significant seasonal fluctuations in solar electricity production that prospective solar installers should consider.

Seasonal Solar Production

Solar energy generation in Esteio varies considerably across the four seasons. Summer stands out as the peak production period with panels generating approximately 7.26kWh per day for each kilowatt installed. Spring follows as the second most productive season with 5.80kWh/day, while autumn yields a moderate 4.62kWh/day. Winter represents the least productive period with output dropping to just 3.24kWh/day per installed kilowatt.

This seasonal pattern means Esteio's solar potential is more than twice as productive during summer months compared to winter. This variation is important for planning purposes, especially for those considering going off-grid or relying heavily on solar power.

Optimal Panel Installation

For fixed solar panel installations in Esteio, Rio Grande do Sul, the ideal tilt angle to maximize year-round energy production is 26 degrees facing North. This specific angle has been calculated to optimize annual solar capture based on the location's position in the Southern Hemisphere, accounting for the Earth's elliptical orbit and seasonal sun path variations.

Environmental Considerations

Several environmental factors could potentially affect solar production in Esteio:

• Humidity and rainfall: The subtropical climate brings periods of high humidity and rainfall that can temporarily reduce panel efficiency.
• Dust and pollution: Urban pollution from nearby industrial areas and seasonal agricultural dust can accumulate on panels, reducing their effectiveness.
• Occasional hail storms: While not frequent, they present a risk to panel integrity.

To mitigate these challenges, solar installations in Esteio should incorporate self-cleaning panel technologies or regular maintenance schedules. Installing panels at the recommended 26-degree angle not only optimizes production but also helps with natural cleaning during rainfall. Additionally, quality hail-resistant panels with appropriate certification are recommended for this region.

While not ideal year-round due to the significant winter production drop, Esteio still offers good overall solar potential, especially if systems are sized appropriately to account for the lower winter yields.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

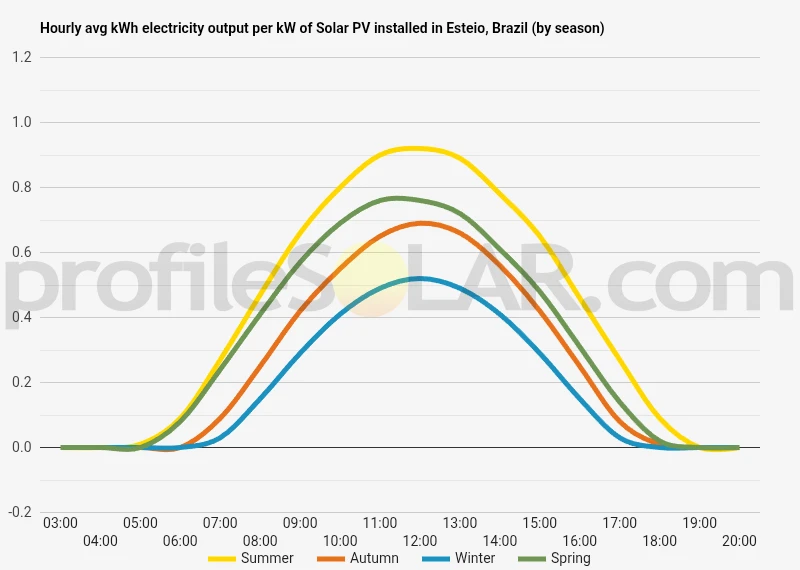

Solar output per kW of installed solar PV by season in Esteio

Seasonal solar PV output for Latitude: -29.8504, Longitude: -51.1631 (Esteio, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 26° North in Esteio, Brazil

To maximize your solar PV system's energy output in Esteio, Brazil (Lat/Long -29.8504, -51.1631) throughout the year, you should tilt your panels at an angle of 26° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Esteio, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Esteio, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 26° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° North in Summer	35° North in Autumn	45° North in Winter	22° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Esteio, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Esteio, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Esteio, Brazil

Esteio is a municipality located in the metropolitan area of Porto Alegre in Rio Grande do Sul state, southern Brazil. The topography of Esteio and its surrounding areas is characterized predominantly by flat to gently rolling terrain. This region sits within the extensive lowland plains of the Rio Grande do Sul state, specifically in what is known as the Central Depression (Depressão Central) which stretches between the coastal plains and the higher plateaus to the north. The landscape around Esteio features elevations generally ranging from 5 to 30 meters above sea level, making it relatively flat compared to other regions in Brazil. The area is part of the Guaíba Lake basin, with the Sinos River flowing nearby, which eventually drains into the Guaíba Lake to the south. This hydrographic feature has influenced the formation of alluvial plains and small hills throughout the region.

Surrounding Topographical Features

To the east of Esteio lies the coastal plains that extend toward the Atlantic Ocean, while to the north and northwest, the terrain gradually rises toward the Southern Brazilian Plateau (Planalto Meridional). The western areas remain predominantly flat, continuing the pattern of the Central Depression. The municipality itself is highly urbanized, being part of the greater Porto Alegre metropolitan area. However, the surrounding rural and semi-rural areas maintain the characteristic gentle topography of the region, with occasional small hills and shallow valleys.

Potential Areas for Solar PV Development

For large-scale solar photovoltaic (PV) installations, several factors beyond just topography need consideration, including land availability, grid connection possibilities, and environmental constraints. However, focusing primarily on topographical suitability, the following areas near Esteio show promise: The northwestern regions extending toward Sapiranga and Nova Hartz offer gently sloping terrain that provides good solar exposure with minimal shadowing effects. These areas have slightly higher elevations than Esteio proper, potentially reducing concerns about flooding that might affect lower-lying areas. The western plains stretching toward Eldorado do Sul present extensive flat areas that would require minimal land preparation for solar array installation. The openness of this landscape also means fewer natural obstacles that could cast shadows on solar panels. Areas to the north, in the direction of Novo Hamburgo and São Leopoldo, feature some elevated plateaus that could be advantageous for solar installations, providing consistent exposure throughout the day with minimal topographical interference. It's worth noting that while the generally flat topography of the region is favorable for solar development from a construction and installation perspective, this area of Brazil does experience variable weather patterns. The proximity to large water bodies like Guaíba Lake can influence local cloud cover and humidity levels, which are important considerations for solar energy production efficiency. Additionally, many surrounding areas are used for agriculture or are part of expanding urban developments, creating competition for land use. The most suitable locations would balance topographical advantages with land that has fewer competing uses and is not environmentally sensitive.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
