Estiva, Minas Gerais, Brazil presents a good location for year-round solar energy generation, with consistent performance across all seasons due to its tropical location. The solar output data shows this location can produce between 4.83 and 6.62 kWh per day for each kilowatt of installed solar capacity throughout the year.

Seasonal Solar Performance

Summer delivers the highest solar energy production at 6.62 kWh/day per kW installed, making it the peak season for solar generation. Spring follows closely with 6.08 kWh/day per kW, while autumn produces 5.49 kWh/day per kW. Winter shows the lowest output at 4.83 kWh/day per kW, though this still represents reasonable production levels. The relatively small variation between seasons - only about 37% difference between the highest and lowest producing seasons - demonstrates the location's reliability for consistent solar energy generation throughout the year. This stability makes Estiva particularly attractive for solar installations compared to locations with more dramatic seasonal variations.

Optimal Panel Configuration

For maximum year-round solar production at this location, fixed solar panels should be tilted at 21 degrees facing north. This angle has been calculated to optimize total annual energy output by accounting for the sun's path throughout the year and the location's specific latitude.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production in Estiva and require consideration during installation planning:

• High humidity and moisture: The tropical climate brings elevated humidity levels that can cause corrosion of metal components and degradation of electrical connections over time
• Heavy rainfall during wet seasons: Intense tropical downpours can reduce solar output during storms and may cause water ingress issues if panels aren't properly sealed
• Dust and debris accumulation: Dry periods can lead to dust buildup on panel surfaces, reducing their efficiency
• Temperature extremes: High ambient temperatures can reduce panel efficiency and accelerate component degradation

Preventative Installation Measures

To maximize energy production and system longevity in Estiva's climate, several protective measures should be implemented during installation. Use marine-grade or stainless steel mounting hardware and electrical components specifically rated for high-humidity environments to prevent corrosion. Ensure all electrical connections are properly sealed with weatherproof enclosures and use UV-resistant cabling designed for tropical conditions. Install panels with adequate spacing and ventilation underneath to promote air circulation and heat dissipation, which helps maintain optimal operating temperatures. Consider using panels with better high-temperature performance coefficients to minimize efficiency losses during hot periods. Design the system with proper drainage to prevent water pooling around mounting structures, and ensure all penetrations through roofing are professionally sealed. Regular maintenance schedules should include panel cleaning during dry seasons to remove dust accumulation, and periodic inspection of all seals and electrical connections to address any weather-related deterioration before it impacts performance.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

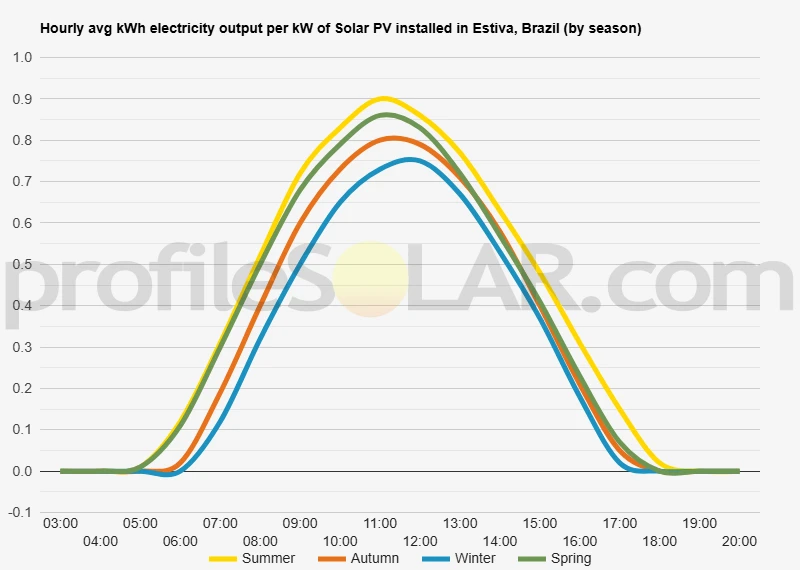

Solar output per kW of installed solar PV by season in Estiva

Seasonal solar PV output for Latitude: -22.4528, Longitude: -46.0224 (Estiva, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Estiva, Brazil

To maximize your solar PV system's energy output in Estiva, Brazil (Lat/Long -22.4528, -46.0224) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Estiva, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Estiva, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	28° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Estiva, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Estiva, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Estiva, Brazil

Topographical Features of the Estiva Region

The area around Estiva in São Paulo state sits within the Brazilian Highlands, characterized by rolling hills and gentle slopes that define much of the southeastern Brazilian landscape. This region forms part of the broader Paraíba Valley system, where the terrain gradually transitions from higher elevations in the north toward the coastal lowlands in the southeast. The topography here consists primarily of undulating hills with moderate relief, creating a landscape of valleys and ridges that rarely present extreme elevation changes.

The local geography features a mix of agricultural lands, pasturelands, and scattered forest remnants typical of this part of São Paulo's interior. The terrain slopes generally follow the natural drainage patterns toward the Paraíba do Sul River basin, with numerous small streams and tributaries carving gentle valleys through the landscape. The soil composition includes weathered crystalline rocks and sedimentary deposits, supporting the region's agricultural activities while providing stable ground conditions for infrastructure development.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be found on the broader hilltops and gentle south-facing slopes throughout the region. These elevated areas typically offer the best combination of consistent solar exposure and minimal shading from surrounding terrain features. The rolling nature of the landscape means that careful site selection can take advantage of natural clearings and open pasturelands that already lack significant vegetation or existing infrastructure.

Areas with gradual slopes between five and fifteen degrees would be particularly well-suited for solar arrays, as they provide good drainage while maintaining optimal panel positioning. The region's agricultural zones, especially those currently used for cattle grazing or less intensive farming, present excellent opportunities for solar development due to their cleared nature and established access routes.

The valley floors, while offering flat terrain that might seem attractive for construction, would generally be less suitable due to potential drainage issues during the rainy season and possible morning fog accumulation. Instead, the mid-elevation slopes and plateau areas would provide better conditions for large-scale installations, offering natural drainage, reduced risk of flooding, and fewer obstacles to consistent solar collection throughout the day.

Transportation access represents another important consideration, and the areas closest to existing roads and transmission infrastructure would offer significant advantages for project development. The relatively gentle topography throughout most of the region means that access road construction and equipment transportation would face fewer challenges compared to steeper terrain found in other parts of the Brazilian Highlands.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
