Estrela do Sul, Brazil presents an excellent location for year-round solar energy generation. This tropical location benefits from consistent sunlight throughout most of the year, with seasonal variations primarily driven by wet and dry periods rather than dramatic changes in daylight hours.

Solar Energy Production Performance

The solar energy output at this location demonstrates strong and reliable performance across all seasons. Summer delivers the highest production at 6.52 kWh per day per kW of installed capacity, while spring follows closely at 6.38 kWh per day per kW. Even during the lowest-producing season of winter, the location still generates a respectable 5.56 kWh per day per kW, with autumn producing 5.99 kWh per day per kW. This relatively small seasonal variation of less than 1 kWh per day per kW between peak and minimum production periods indicates exceptional consistency for solar power generation. The difference between the best and worst performing seasons is only about 17%, which is remarkably stable compared to many other global locations.

Optimal Installation Configuration

For fixed panel installations at Estrela do Sul, the ideal tilt angle to maximize total year-round solar production is 18 degrees facing North. This angle has been calculated by analyzing daily solar elevation angles at this latitude, determining optimal panel positioning, and weighting these angles against actual solar irradiance data while accounting for Earth's elliptical orbit patterns.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production at this location, though most can be effectively managed with proper installation techniques. The tropical climate brings significant rainfall during wet seasons, which can reduce solar output during heavy downpours and create challenges with water management. However, rain also provides natural panel cleaning that can actually improve long-term performance by removing dust and debris accumulation. Humidity levels in tropical regions can be consistently high, potentially leading to moisture-related issues with electrical components and connections. Additionally, the combination of high temperatures and intense sunlight may cause thermal stress on solar panels, potentially reducing their efficiency and lifespan if not properly managed.

Preventative Measures for Optimal Performance

Several installation strategies can help maximize energy production despite these environmental challenges:

• Install panels with adequate ventilation space underneath to promote air circulation and reduce heat buildup
• Use high-quality, moisture-resistant electrical components and ensure all connections are properly sealed against humidity
• Design mounting systems with appropriate drainage to prevent water pooling and ensure quick runoff during heavy rains
• Select solar panels with good high-temperature performance ratings to maintain efficiency during hot periods
• Implement regular maintenance schedules to check for any moisture damage or debris accumulation

The consistent solar resource availability throughout the year, combined with proper installation techniques to address local environmental factors, makes Estrela do Sul a highly favorable location for solar energy projects. The minimal seasonal variation ensures reliable energy production regardless of the time of year, making it an ideal candidate for both residential and commercial solar installations.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

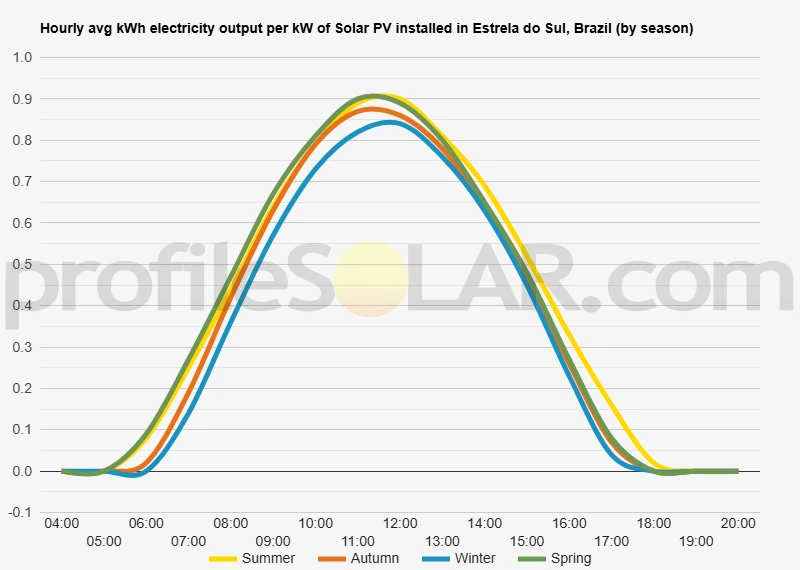

Solar output per kW of installed solar PV by season in Estrela Do Sul

Seasonal solar PV output for Latitude: -18.7226, Longitude: -47.6979 (Estrela Do Sul, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 18° North in Estrela Do Sul, Brazil

To maximize your solar PV system's energy output in Estrela Do Sul, Brazil (Lat/Long -18.7226, -47.6979) throughout the year, you should tilt your panels at an angle of 18° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Estrela Do Sul, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Estrela Do Sul, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 18° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
3° North in Summer	25° North in Autumn	34° North in Winter	13° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Estrela Do Sul, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Estrela Do Sul, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Estrela Do Sul, Brazil

Topographical Features of Estrela do Sul Region

The area surrounding Estrela do Sul in Minas Gerais sits within the Brazilian Highlands, characterized by gently rolling hills and elevated plateaus typical of the country's central interior. This region forms part of the extensive Cerrado biome, where the landscape consists of broad, undulating plains punctuated by low ridges and shallow valleys. The terrain generally maintains elevations between 800 and 1,200 meters above sea level, creating a relatively stable topographical foundation. The local geography features predominantly gentle slopes with gradients rarely exceeding 10-15 degrees, making the terrain highly accessible for large-scale development projects. The area experiences well-drained soils due to its elevated position and the natural drainage patterns that flow toward the Paranaíba River system to the west. These drainage characteristics help prevent waterlogging while maintaining soil stability throughout seasonal weather variations.

Geological Foundation and Land Characteristics

The underlying geology consists primarily of crystalline basement rocks covered by sedimentary deposits, creating a solid foundation suitable for heavy infrastructure. The region's geological stability, combined with minimal seismic activity, provides excellent conditions for long-term installations. The soils are typically well-structured lateritic formations that offer good bearing capacity while remaining relatively easy to work with during construction phases. Vegetation in the natural state consists of Cerrado savanna, featuring scattered trees and shrubland over grassland areas. Much of the surrounding landscape has been converted to agricultural use, particularly cattle ranching and crop cultivation, indicating that the land can be readily cleared and prepared for alternative uses when needed.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be the broad, flat-topped plateaus that extend northeast and southwest of Estrela do Sul. These elevated areas offer consistent terrain with minimal topographical obstacles, allowing for efficient panel arrangement and maintenance access. The natural drainage patterns in these areas flow away from the higher elevations, reducing concerns about water accumulation around installations. The gently sloping areas facing north and northeast present particularly attractive characteristics for solar development. These slopes provide natural positioning advantages while maintaining grades shallow enough to minimize grading requirements and reduce installation costs. The consistent elevation changes across these areas allow for systematic panel orientation without significant terrain modification. Areas within 15-20 kilometers of the town center offer the best combination of suitable topography and infrastructure access. The relatively flat agricultural lands that have already been cleared provide immediate development potential, while the existing road network facilitates equipment transport and ongoing maintenance operations. The stable geological conditions throughout this radius ensure consistent foundation requirements across large installation areas. The western approaches toward the Paranaíba River valley should generally be avoided for large installations due to increased terrain variability and potential drainage complications. Similarly, the more dissected areas to the south and southeast present greater topographical challenges that would increase development costs and complicate panel positioning.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
