Faxinal do Soturno, Brazil shows moderate potential for year-round solar energy generation, though with significant seasonal variation typical of its Southern Sub Tropics location at latitude -29.5712, longitude -53.471.

Seasonal Solar Performance

The location experiences its strongest solar generation during summer months, producing 7.56 kWh per day for each kilowatt of installed solar capacity. This represents the peak performance period when the sun is highest in the sky and daylight hours are longest in the Southern Hemisphere. Spring offers the second-best performance at 5.97 kWh/day per kW, making it another favorable season for solar energy production. Autumn production drops to 4.78 kWh/day per kW, while winter shows the lowest output at 3.39 kWh/day per kW installed. For maximum year-round energy production, solar panels should be installed at a fixed tilt angle of 25 degrees facing North. This optimal angle is calculated by analyzing daily solar elevation angles throughout the year and weighting them according to solar irradiance data to maximize total annual output.

Local Factors Affecting Solar Production

Several environmental and weather factors in this region can impact solar panel performance:

• High humidity and frequent rainfall: The subtropical climate brings regular precipitation that can reduce solar irradiance and create cloudy conditions
• Hail storms: Common in southern Brazil, these can physically damage solar panels
• Strong winds: Seasonal weather patterns can bring damaging winds that affect panel stability
• Dust and pollen accumulation: Agricultural activities and natural vegetation can coat panels, reducing efficiency

Recommended Preventative Measures

To maximize solar energy production despite these challenges, several installation strategies should be considered: Install panels with reinforced mounting systems designed to withstand high winds and potential hail impact. Choose panels with tempered glass rated for severe weather conditions common in the region. Implement a regular cleaning schedule to remove dust, pollen, and other debris that accumulates on panel surfaces. Consider installing panels at steeper angles to promote natural cleaning from rainfall. Ensure proper drainage around solar installations to prevent water pooling during heavy rains. Use corrosion-resistant mounting hardware suitable for humid subtropical conditions. Consider micro-inverters or power optimizers rather than string inverters to minimize production losses when individual panels are affected by shading from passing clouds or debris.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

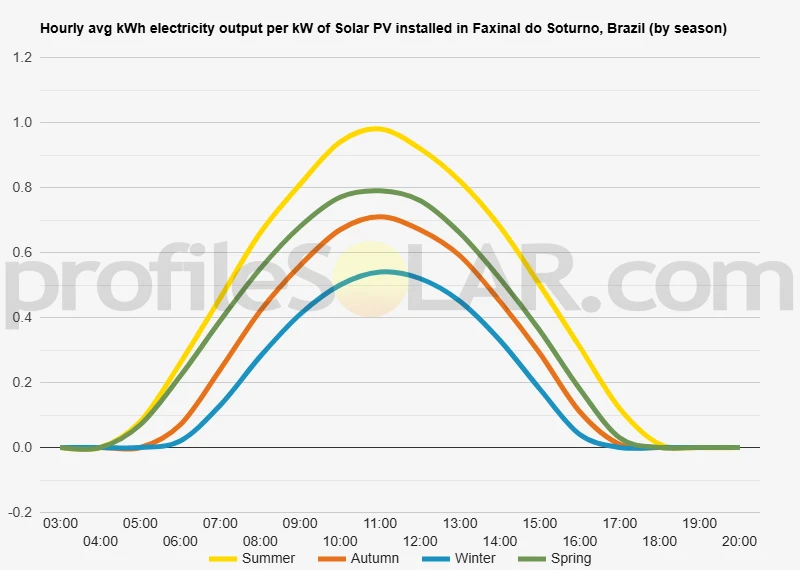

Solar output per kW of installed solar PV by season in Faxinal Do Soturno

Seasonal solar PV output for Latitude: -29.5712, Longitude: -53.471 (Faxinal Do Soturno, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° North in Faxinal Do Soturno, Brazil

To maximize your solar PV system's energy output in Faxinal Do Soturno, Brazil (Lat/Long -29.5712, -53.471) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Faxinal Do Soturno, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Faxinal Do Soturno, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° North in Summer	35° North in Autumn	45° North in Winter	22° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Faxinal Do Soturno, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Faxinal Do Soturno, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Faxinal Do Soturno, Brazil

Topographical Features of Faxinal do Soturno

Faxinal do Soturno sits in the central region of Rio Grande do Sul state, nestled within the gently rolling landscape characteristic of Brazil's southern plateau. The terrain around this municipality features moderate undulations with elevations typically ranging between 400 and 600 meters above sea level. The topography consists primarily of smooth hills and broad valleys, creating a landscape that appears almost wave-like when viewed from elevated positions. The region forms part of the larger Serra Geral formation, though the immediate area around Faxinal do Soturno represents some of the more subdued topographical features of this geological system. Unlike the dramatic escarpments found elsewhere in the Serra Geral, the local terrain presents gentle slopes and rounded hilltops that have been shaped by millions of years of weathering and erosion. Agricultural activities have further modified the natural landscape, with many hillsides terraced or contoured to prevent soil erosion. The predominant land use includes cattle ranching and crop cultivation, particularly soybeans and corn, which has resulted in large cleared areas across the rolling hills. These agricultural modifications have created a patchwork of open fields interspersed with remnants of native Atlantic Forest and planted eucalyptus groves.

Drainage and Water Features

The hydrological network around Faxinal do Soturno consists of numerous small streams and tributaries that flow through the valleys between the hills. These waterways generally follow northeast-southwest orientations, carving shallow valleys that provide natural drainage for the surrounding uplands. The stream valleys are typically narrow and well-defined, though not deeply incised into the landscape. Seasonal variations in rainfall create corresponding changes in stream flow, with some smaller tributaries becoming intermittent during drier periods. The presence of these water features creates localized microclimates in the valleys, where humidity levels tend to be slightly higher and temperatures more moderate compared to the exposed hilltops.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be found on the broader hilltops and gentle south-facing slopes throughout the region. These elevated areas offer several advantages including consistent exposure to prevailing winds that help maintain optimal panel temperatures, minimal shading from surrounding terrain features, and generally stable ground conditions for large-scale construction projects. The extensive agricultural lands that currently dominate the landscape present excellent opportunities for solar development, particularly those areas with gentler gradients of less than 10 degrees. Many of the current pasture lands and some crop fields could potentially accommodate large solar arrays without requiring significant terrain modification. The rolling nature of the topography means that solar installations could be designed to follow the natural contours of the land, reducing earthwork requirements and environmental impact. Areas to avoid for major solar installations would include the steeper hillsides where slopes exceed 15 degrees, as these locations would require extensive grading and could present ongoing maintenance challenges. The narrow stream valleys should also be avoided due to potential flooding risks, higher humidity levels, and the ecological importance of these riparian corridors. The existing road network and relatively flat to gently rolling terrain would facilitate construction access and ongoing maintenance operations. The agricultural history of the region means that much of the land has already been cleared and leveled to some degree, potentially reducing site preparation costs compared to forested or more rugged terrain.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
