Fontoura Xavier, Rio Grande do Sul, Brazil presents a moderately favorable location for year-round solar energy generation, though with significant seasonal variations typical of its Southern Sub Tropics climate zone.

Seasonal Solar Performance

The solar energy output at this location shows considerable fluctuation throughout the year. Summer delivers the strongest performance at 7.29 kWh per day per kW of installed capacity, making it an excellent time for solar generation. Spring follows as the second-best season with 5.78 kWh per day per kW, providing solid energy production as the region transitions toward its peak solar months. Autumn sees a notable decline to 4.68 kWh per day per kW, while winter represents the most challenging period with only 3.29 kWh per day per kW. This winter figure is less than half the summer output, reflecting the reduced solar intensity during the cooler months in the Southern Hemisphere.

Optimal Installation Setup

For maximum year-round energy production at Fontoura Xavier, Rio Grande do Sul, solar panels should be installed at a fixed tilt angle of 25 degrees facing north. This angle has been calculated to optimize total annual solar output by accounting for the sun's changing position throughout the year and the Earth's elliptical orbit patterns.

Local Factors Affecting Solar Production

Several environmental and weather factors in this Southern Sub Tropics location can impact solar energy generation:

• Humidity and moisture: The subtropical climate brings high humidity levels that can reduce panel efficiency and create condensation issues
• Heavy rainfall: Intense precipitation during certain seasons can temporarily reduce solar output and potentially cause water damage if systems aren't properly sealed
• Temperature fluctuations: Significant seasonal temperature variations can affect panel performance, as solar panels typically lose efficiency in extreme heat
• Atmospheric haze: Humid conditions can create atmospheric haze that reduces solar irradiance reaching the panels

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies should be implemented:

• Enhanced drainage systems: Install panels with adequate spacing and proper mounting to ensure water runoff and prevent pooling
• Improved ventilation: Design installations with sufficient air circulation behind panels to reduce heat buildup and moisture accumulation
• Quality weatherproofing: Use marine-grade sealing and corrosion-resistant materials to withstand high humidity and heavy rainfall
• Regular maintenance scheduling: Plan more frequent cleaning during high-humidity periods to remove accumulated moisture, dust, and organic growth
• Temperature management: Consider elevated mounting systems that allow better airflow and cooling to maintain optimal panel temperatures

Despite these environmental considerations, Fontoura Xavier remains a viable location for solar energy generation, particularly during the highly productive summer and spring seasons when output can exceed 5.7 kWh per day per installed kW.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

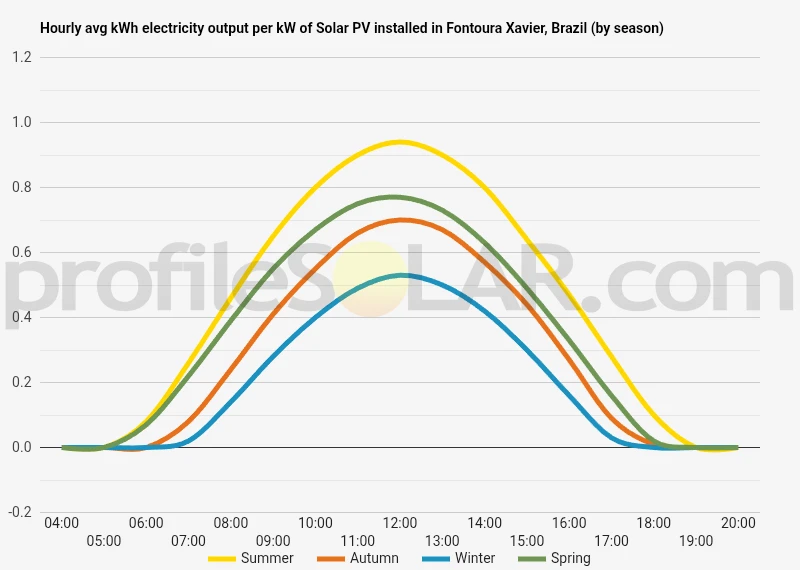

Solar output per kW of installed solar PV by season in Fontoura Xavier

Seasonal solar PV output for Latitude: -29.0105, Longitude: -52.3677 (Fontoura Xavier, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° North in Fontoura Xavier, Brazil

To maximize your solar PV system's energy output in Fontoura Xavier, Brazil (Lat/Long -29.0105, -52.3677) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Fontoura Xavier, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Fontoura Xavier, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° North in Summer	34° North in Autumn	44° North in Winter	21° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Fontoura Xavier, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Fontoura Xavier, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Fontoura Xavier, Brazil

Topographical Features of the Fontoura Xavier Region

Fontoura Xavier sits within the rolling hills and plateaus characteristic of Rio Grande do Sul's northern interior. The landscape around this municipality features gently undulating terrain with elevations ranging from approximately 400 to 600 meters above sea level. The topography is dominated by the broader geological formation known as the Serra Geral, which creates a series of stepped plateaus and gentle slopes across the region.

The area exhibits typical characteristics of the Brazilian Highlands, with relatively smooth terrain broken by shallow valleys carved by small tributaries of the Taquari River system. These waterways have created modest elevation changes throughout the landscape, but the overall topography remains quite manageable with gradual gradients rather than steep mountainous terrain. The region's geological foundation consists primarily of basaltic rock formations, which have weathered over time to create fertile soils and relatively stable ground conditions.

Local relief is generally moderate, with most slopes falling within gentle to moderate categories. The landscape is punctuated by occasional small hills and ridges, but these features rarely create significant obstacles for development or land use. Agricultural activities dominate much of the surrounding area, indicating that the terrain is well-suited for large-scale land development projects.

Optimal Areas for Large-Scale Solar Development

The most promising locations for substantial solar photovoltaic installations would be found on the elevated plateau areas south and southwest of Fontoura Xavier. These higher elevation zones offer several advantages, including relatively flat to gently sloping terrain that minimizes the need for extensive grading and earthwork. The elevated positions also provide excellent exposure to prevailing wind patterns, which can help maintain optimal operating temperatures for solar panels.

Areas along the broader ridgelines and plateau tops present ideal conditions for solar farms, as they typically feature consistent slopes facing favorable directions while avoiding the shadowing effects that can occur in valley locations. The terrain in these elevated zones is generally stable and well-drained, reducing concerns about seasonal flooding or ground instability that might affect solar installations.

The gently rolling hills to the east and northeast of the municipality also show strong potential for solar development. These areas combine favorable topographical conditions with relatively easy access to existing transportation infrastructure. The moderate slopes in these zones can actually benefit solar installations by providing natural drainage while maintaining good solar exposure throughout the day.

Agricultural areas with minimal slope variations would be particularly well-suited for large-scale solar development, as the existing cleared land reduces preparation costs and environmental impact. Many of these flatter agricultural zones are located in the broader valley areas between ridges, where the terrain has been naturally leveled by centuries of water flow and sediment deposition.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
