Formosa do Sul, Brazil, located in the Southern Sub Tropics at coordinates -26.647, -52.8043, presents a moderately favorable location for year-round solar photovoltaic energy generation, though with notable seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Production Performance

The location demonstrates strong seasonal fluctuations in solar energy output. Summer delivers the highest production at 7.02kWh per day per kW of installed solar capacity, making it the prime season for solar generation. Spring follows as the second-best performing season with 6.07kWh per day per kW, while autumn drops to 5.23kWh per day per kW. Winter presents the most challenging period for solar production, generating only 3.94kWh per day per kW of installed capacity. This represents a significant 44% reduction compared to summer peak performance, which is typical for locations at this southern latitude where winter sun angles are considerably lower.

Optimal Installation Configuration

For maximum year-round energy production at this location, solar panels should be installed at a fixed tilt angle of 24 degrees facing North. This optimal angle is calculated by analyzing daily solar elevation angles throughout the year and weighting them according to photovoltaic potential using solar irradiance data, accounting for Earth's elliptical orbit around the sun.

Local Environmental and Weather Challenges

Several environmental and weather factors could potentially impact solar production at Formosa do Sul:

• Subtropical weather patterns: The region experiences typical subtropical climate conditions including potential for heavy rainfall, high humidity, and occasional severe weather events that could affect panel performance and longevity
• Agricultural dust and pollen: Being in a rural Brazilian location, airborne particles from farming activities and seasonal pollen can accumulate on solar panels, reducing their efficiency
• Temperature fluctuations: Significant seasonal temperature variations can affect panel efficiency and create thermal stress on equipment

Preventative Measures for Enhanced Performance

To maximize solar energy production and system longevity at this location, several preventative measures should be implemented:

• Regular cleaning schedules: Establish routine panel cleaning to remove dust, pollen, and debris, particularly during dry seasons and after agricultural activities
• Robust mounting systems: Install heavy-duty mounting hardware designed to withstand subtropical weather conditions including strong winds and potential hail
• Proper drainage design: Ensure installation includes adequate drainage to prevent water accumulation and potential damage during heavy rainfall periods
• Temperature management: Allow sufficient air circulation beneath panels to minimize heat buildup and maintain optimal operating temperatures

Overall, while Formosa do Sul offers reasonable solar potential, the significant winter production decline and local environmental factors require careful planning and ongoing maintenance to achieve optimal long-term performance from any solar installation.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

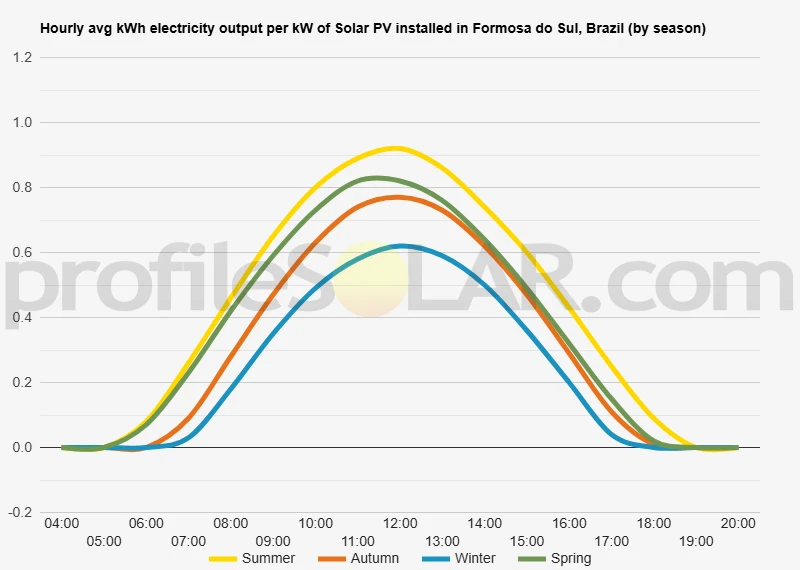

Solar output per kW of installed solar PV by season in Formosa Do Sul

Seasonal solar PV output for Latitude: -26.647, Longitude: -52.8043 (Formosa Do Sul, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Formosa Do Sul, Brazil

To maximize your solar PV system's energy output in Formosa Do Sul, Brazil (Lat/Long -26.647, -52.8043) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Formosa Do Sul, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Formosa Do Sul, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
10° North in Summer	32° North in Autumn	42° North in Winter	19° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Formosa Do Sul, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Formosa Do Sul, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Formosa Do Sul, Brazil

Topographical Features of the Formosa do Sul Region

The landscape surrounding Formosa do Sul in Santa Catarina, Brazil, is characterized by gently rolling hills and elevated plateaus typical of the southern Brazilian highlands. This region sits within the broader Serra Geral formation, where the terrain gradually transitions from the coastal lowlands to the interior uplands. The area features a mix of undulating countryside with moderate elevation changes, creating a mosaic of valleys, ridges, and relatively flat plateau surfaces. The local topography is dominated by sedimentary rock formations overlaid with volcanic basalt from ancient lava flows, which have weathered over millions of years to create fertile soils and relatively stable geological conditions. The terrain generally slopes toward the major river systems, with numerous small streams and tributaries carving shallow valleys through the landscape. These water courses create natural drainage patterns that influence both the local microclimate and land use patterns.

Agricultural Land Use and Terrain Characteristics

Much of the surrounding countryside has been converted to agricultural use, particularly for soybean cultivation, corn production, and cattle ranching. The relatively gentle slopes and adequate rainfall have made this region highly suitable for mechanized farming operations. Large fields stretch across the rolling hills, with many properties covering hundreds of hectares of continuous farmland. The soil composition consists primarily of deep, well-drained red and dark soils derived from basaltic parent material, which provides excellent structural stability for construction projects. The terrain typically features gradual slopes ranging from nearly flat to moderately inclined, with few steep gradients that would present significant engineering challenges for large-scale infrastructure development.

Optimal Areas for Large-Scale Solar Development

The most promising locations for extensive solar photovoltaic installations would be found on the broader plateau surfaces and gently sloping hillsides that face northward, taking advantage of Brazil's position in the southern hemisphere where north-facing surfaces receive optimal solar exposure throughout the day. These areas combine the benefits of stable terrain with minimal shading from surrounding topographical features. The extensive agricultural plains to the north and northwest of Formosa do Sul present particularly attractive opportunities for solar development. These areas feature large, relatively flat expanses with minimal topographical obstacles and existing road infrastructure that could support construction and maintenance activities. The gentle undulations in these agricultural zones would allow for efficient panel placement while maintaining proper drainage. Areas along the higher elevation ridgelines also offer excellent potential, as they tend to experience fewer issues with fog and atmospheric moisture that can reduce solar efficiency. These elevated positions often feature consistent wind patterns that help keep solar panels clean and operating at optimal temperatures.

Infrastructure and Access Considerations

The region benefits from reasonable road connectivity, with several state highways providing access to the rural areas surrounding Formosa do Sul. The existing agricultural infrastructure, including farm roads and utility connections, could potentially be leveraged to support solar installations. Many of the larger agricultural properties already have electrical grid connections that could facilitate the integration of solar generation facilities. The relatively stable geological conditions and well-drained soils would minimize foundation and construction challenges for large solar arrays. The absence of significant wetlands or environmentally sensitive areas in many of the agricultural zones could also streamline the permitting process for renewable energy projects. The combination of suitable topography, existing infrastructure, and large available land areas makes the Formosa do Sul region well-positioned for substantial solar photovoltaic development, particularly in the agricultural areas where land use could potentially be diversified to include renewable energy generation alongside traditional farming activities.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.

Feeling generous?

Share this with your friends!

Compare this location to others worldwide for solar PV potential

The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.

However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.
