Fraiburgo, Santa Catarina, Brazil, located in the Southern Sub Tropics, presents a moderately favorable location for year-round solar PV energy generation, though with notable seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this location shows significant seasonal fluctuation. Summer delivers the strongest performance at 6.54 kWh per day per kW of installed solar capacity, making it the ideal time for solar generation. Spring follows as the second-best season with 5.29 kWh per day per kW, while autumn drops to 4.64 kWh per day per kW. Winter presents the most challenging period for solar generation, producing only 3.45 kWh per day per kW of installed capacity. This represents nearly a 50% reduction compared to peak summer output, which is typical for locations at this latitude in the Southern Hemisphere.

Optimal Installation Configuration

For fixed panel installations at Fraiburgo, Santa Catarina, the ideal tilt angle is 24 degrees facing North to maximize total year-round solar production. This angle is calculated based on the location's latitude and weighted solar irradiance data to optimize annual energy output.

Local Environmental Factors

Several environmental and weather factors in the Fraiburgo region could potentially impact solar energy production:

• Frost and Cold Weather: Fraiburgo is known for its cold winters and occasional frost, which can affect panel efficiency and potentially damage equipment if not properly protected
• High Altitude Effects: The city sits at approximately 1,000 meters above sea level, which can lead to more intense UV radiation but also greater temperature fluctuations
• Regional Weather Patterns: The area experiences typical subtropical highland climate conditions with potential for sudden weather changes

Preventative Measures for Optimal Performance

To ensure maximum energy production despite these environmental challenges, several installation strategies should be considered:

• Cold-Weather Rated Equipment: Use solar panels and inverters specifically rated for low-temperature operation to maintain efficiency during winter months
• Proper Mounting Systems: Install robust mounting systems that can handle thermal expansion and contraction due to temperature variations
• Adequate Ventilation: Ensure proper air circulation behind panels to prevent overheating during intense summer periods
• Regular Maintenance Schedule: Implement more frequent cleaning and inspection routines to address any weather-related debris or equipment stress

Overall, while Fraiburgo offers reasonable solar potential, the significant seasonal variation and local climate conditions require careful system design and maintenance planning to achieve optimal long-term performance.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

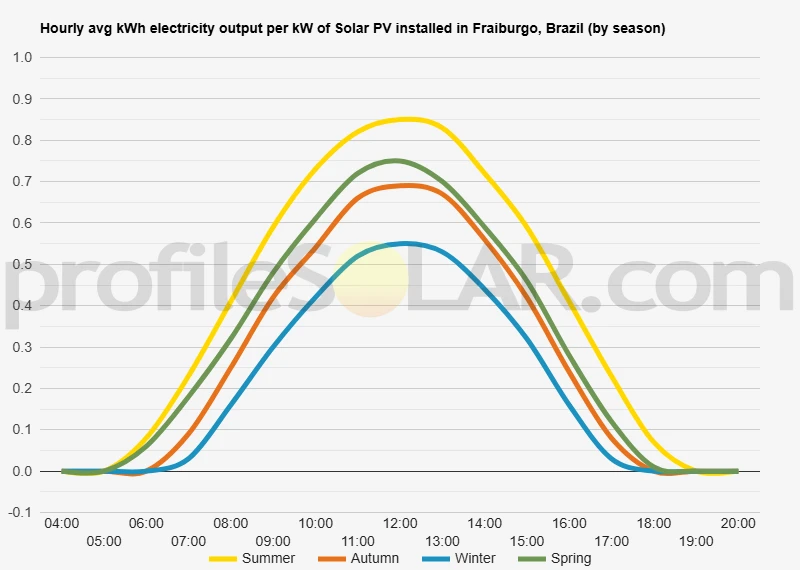

Solar output per kW of installed solar PV by season in Fraiburgo

Seasonal solar PV output for Latitude: -27.0479, Longitude: -50.8069 (Fraiburgo, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Fraiburgo, Brazil

To maximize your solar PV system's energy output in Fraiburgo, Brazil (Lat/Long -27.0479, -50.8069) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Fraiburgo, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Fraiburgo, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° North in Summer	33° North in Autumn	42° North in Winter	20° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Fraiburgo, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Fraiburgo, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Fraiburgo, Brazil

Topography of Fraiburgo Region

Fraiburgo sits in the mountainous highlands of Santa Catarina state in southern Brazil, positioned within the Serra Geral mountain range at an elevation of approximately 1,000 meters above sea level. The surrounding landscape is characterized by rolling hills, gentle slopes, and elevated plateaus that form part of the Brazilian Highlands. This region experiences a subtropical highland climate with distinct seasonal variations and relatively cooler temperatures compared to lower-elevation areas of Brazil. The terrain around Fraiburgo consists primarily of undulating topography with moderate elevation changes. The area features a mix of agricultural land, including extensive apple orchards that the region is famous for, alongside areas of Atlantic Forest remnants on steeper slopes. The landscape is generally well-drained due to its elevation and slope characteristics, with numerous small streams and rivers flowing through valleys between the hills.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Fraiburgo would be the relatively flat to gently sloping plateau areas that extend to the north and east of the city. These elevated plains offer several advantages including consistent terrain that minimizes construction complexity and reduces the need for extensive grading or earthwork. The open agricultural areas in these directions provide large contiguous parcels of land that could accommodate utility-scale solar farms. South-facing slopes with gradients between 5 and 15 degrees would be particularly favorable for solar panel placement, as they can be oriented to maximize solar exposure throughout the year. The higher elevation of the region actually provides benefits for solar installations, as the thinner atmosphere and cooler temperatures can improve photovoltaic efficiency compared to lower-altitude locations. Areas to the west and southwest of Fraiburgo also present good opportunities, where the landscape transitions into broader valleys with less pronounced topographical variation. These zones often feature converted pastureland or areas with lower agricultural value that could be suitable for solar development without competing significantly with the region's important fruit-growing industry. The mountainous terrain to the south and some eastern areas would be less suitable due to steeper slopes, potential shading from ridgelines, and the increased difficulty of construction and maintenance access. Additionally, forested areas should be avoided to preserve the remaining Atlantic Forest ecosystem and comply with environmental regulations.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
